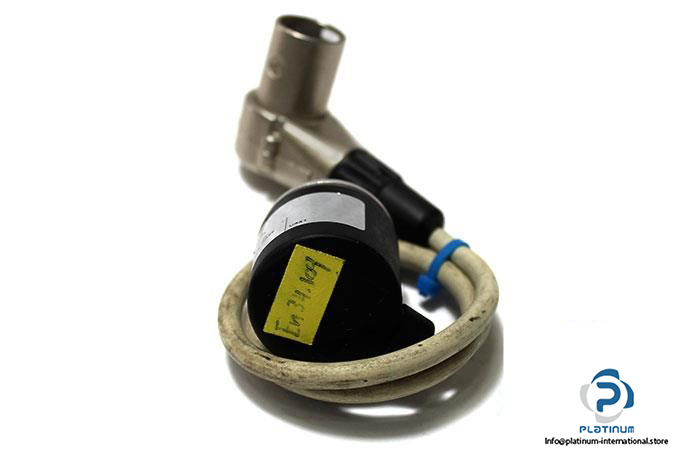

IVO Baumer GI328.0604106 Incremental Encoder

The IVO Baumer GI328.0604106 is a highly reliable incremental encoder engineered for precision in motion control systems. With a durable solid shaft, IP65-rated protection, and HTL output, it is ideal for automation and industrial environments requiring accurate feedback signals at high resolution.

Manufacturer: IVO Baumer
Type: Incremental Encoder

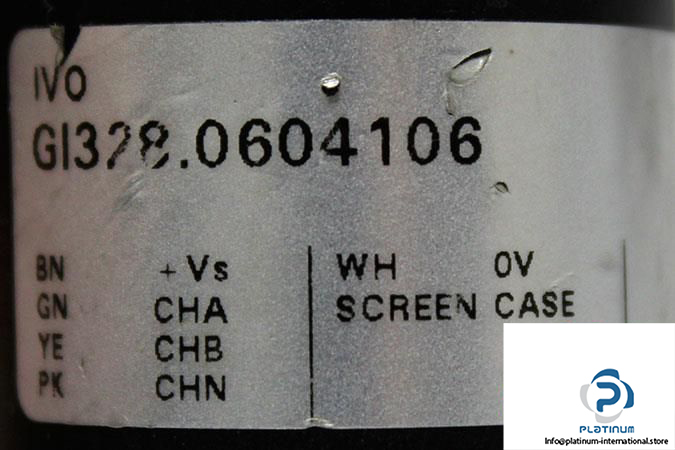

Model: GI328.0604106

Technical Information

• Flange Type: Synchro Flange
• Shaft Design: Solid Shaft
• Shaft Diameter: 5 mm
• Resolution: 200 Pulse Per Revolution (PPR)
• Voltage Supply: 10 / 30 VDC
• Max. Output Current: 60 mA
• Output Circuit: Push Pull (HTL)
• Max Speed: 6,000 RPM
• Max. Pulse Frequency: 100 kHz
• Electrical Connection: Cable 1m, Axial
• Protection Class: IP 65
• Operating Temperature: -20 / 85 °C
