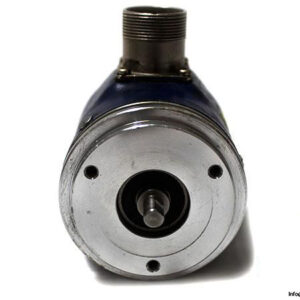

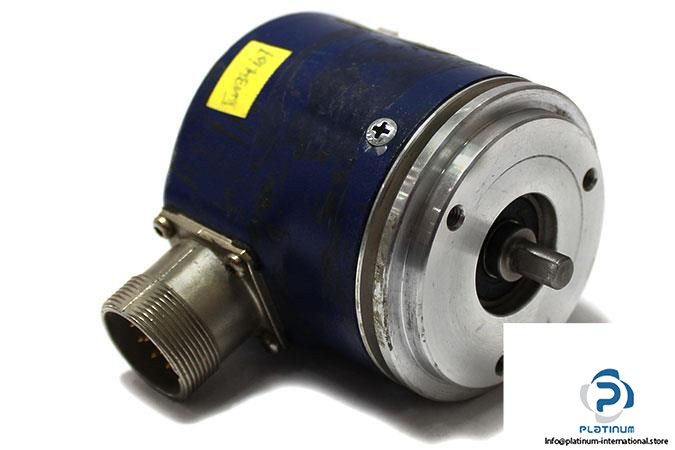

IVO BAUMER GM401.112A102 ABSOLUTE ENCODER

Engineered for industrial precision, the IVO Baumer GM401.112A102 Absolute Encoder delivers accurate multiturn position feedback with high resolution and robust performance. Ideal for automation systems requiring durability and reliability in dynamic environments.

Manufacturer: IVO Baumer
Type: Absolute Encoder

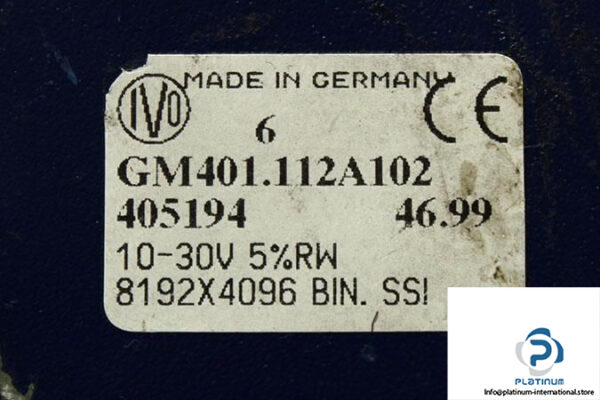

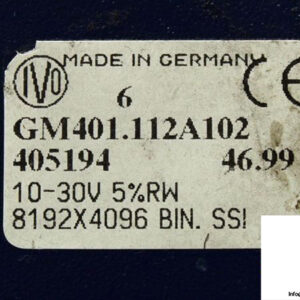

Model: GM401.112A102
Part No.: 405194 46.99

Technical Information

• Resolution: 25 bit (8192 x 4096)
• Function: Multiturn
• Output Code: Binary code SSI
• Voltage Supply: 10 / 30 VDC
• Clock Frequency: 62.5 / 1500 kHz

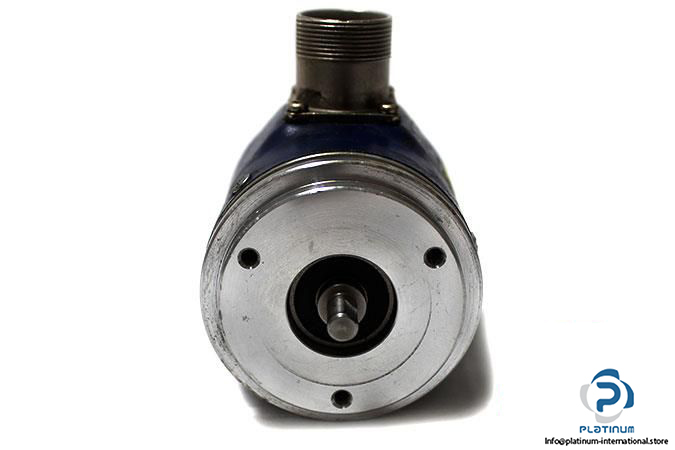

• Flange Type: Synchro flange
• Shaft Design: Solid shaft
• Shaft Diameter: 6 mm

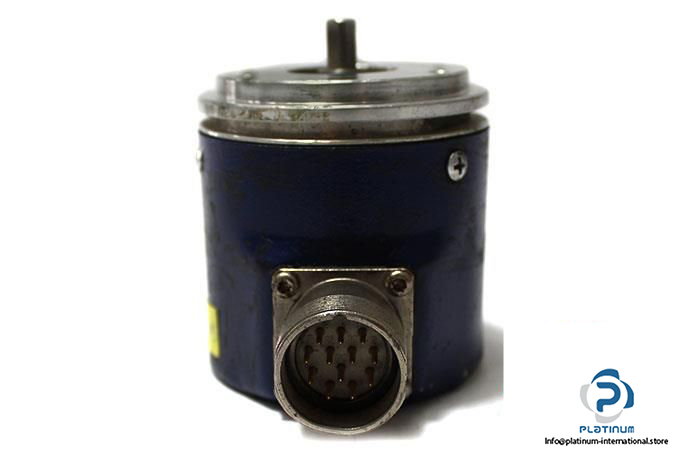

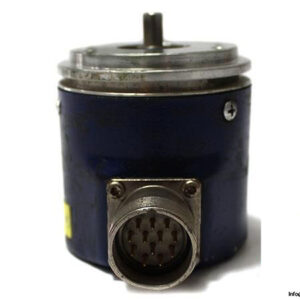

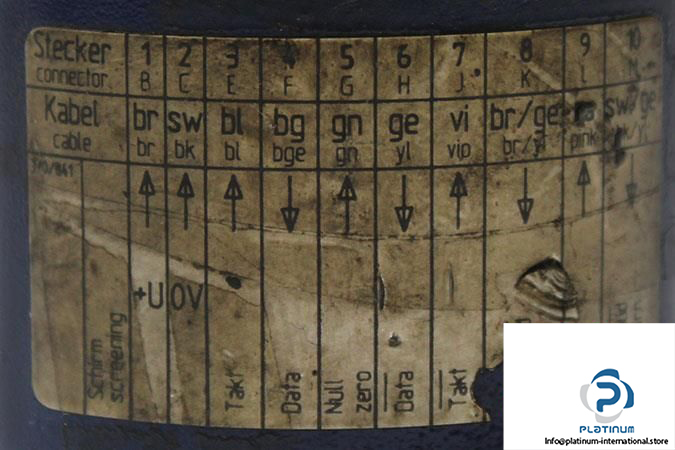

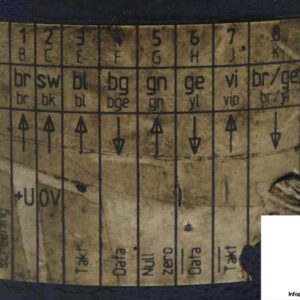

• Connection Type: Connector M23, 12-pin, radial
• Protection Class: IP 54
• Operating Temperature: -25 / 85 °C
