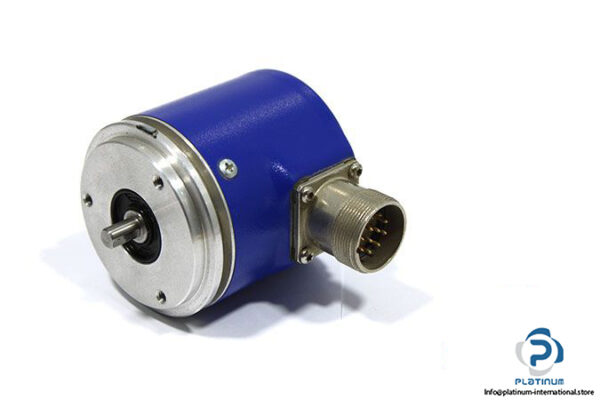

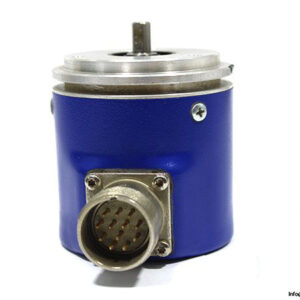

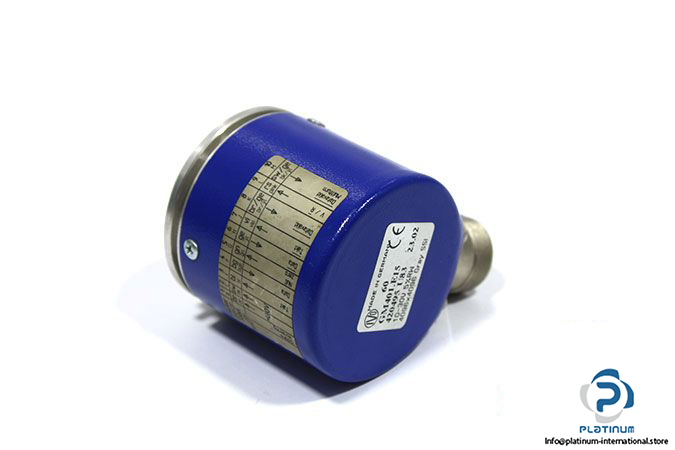

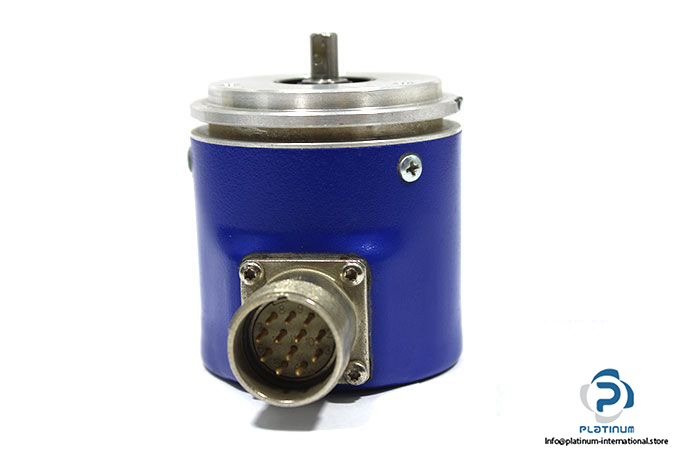

IVO BAUMER GM401.E15 ABSOLUTE ENCODER
The IVO Baumer GM401.E15 is a high-precision multiturn absolute encoder engineered for industrial-grade applications. Offering reliable performance and robust construction, this encoder is ideal for motion control systems demanding accuracy and stability.
Manufacturer: IVO Baumer
Type: Absolute Encoder
Model: GM401.E15
Part No.: 427928 27.03
Technical Information
- Voltage Supply: 10 / 30 VDC
- Encoder Type: Multiturn
- Resolution: 4096 x 4069
- Output Code: Binary Code SSI
- Size (Flange): 58 mm
- Shaft Type: 6 mm Solid Shaft
- Connection Type: Connector M23, 12-pin, Radial
- Operating Temperature: -25…+85 °C
Material
- Housing: Aluminium
- Flange: Aluminium
