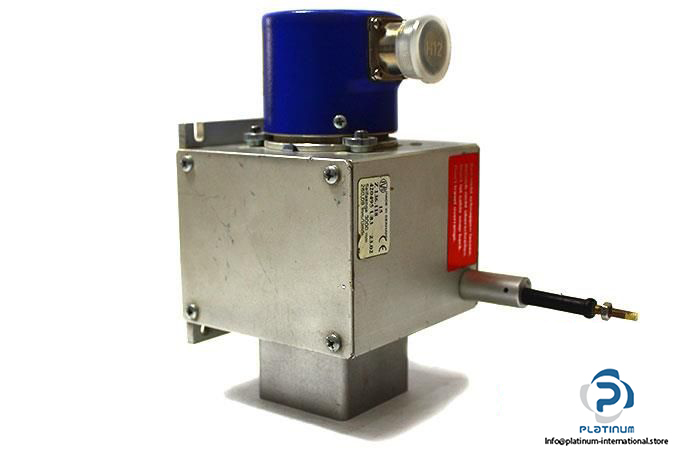

IVO BAUMER ABSOLUTE ENCODER GM401.E15 WITH POSITION SENSOR Z136.118

Engineered for high-precision industrial applications, the IVO Baumer GM401.E15 absolute encoder combined with the Z136.118 position sensor ensures reliable multiturn position measurement with high-resolution binary SSI output. Ideal for environments requiring robust construction and accurate feedback across extended ranges.

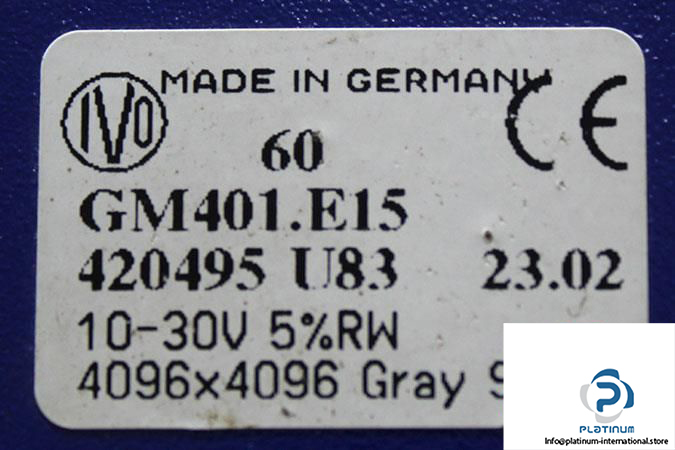

Main Encoder Unit

Manufacturer: IVO Baumer
Type: Absolute Encoder
Model: GM401.E15
Part No.: 420495 U83 23.02
Ref No.: 60
Resolution: 25 bit (4096 x 4096)

Technical Specifications

• Voltage Supply: 10 / 30 VDC
• Material: Aluminium Housing and Flange
• Operating Temperature: -25…+85 °C
• Function: Multiturn
• Output Code: Binary Code SSI

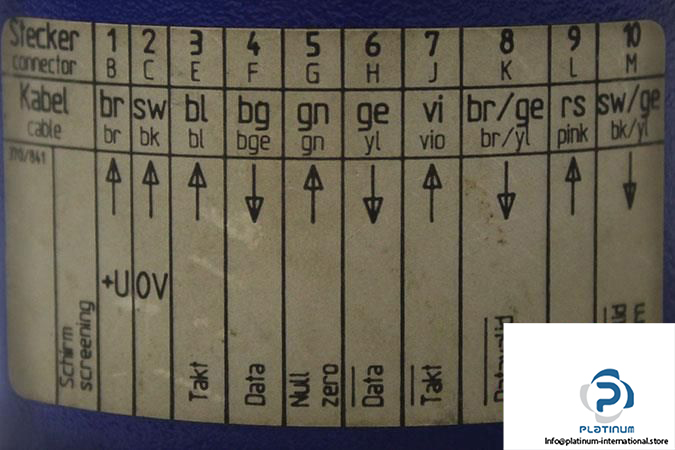

• Connection Type: Connector M23, 12-pin, Radial

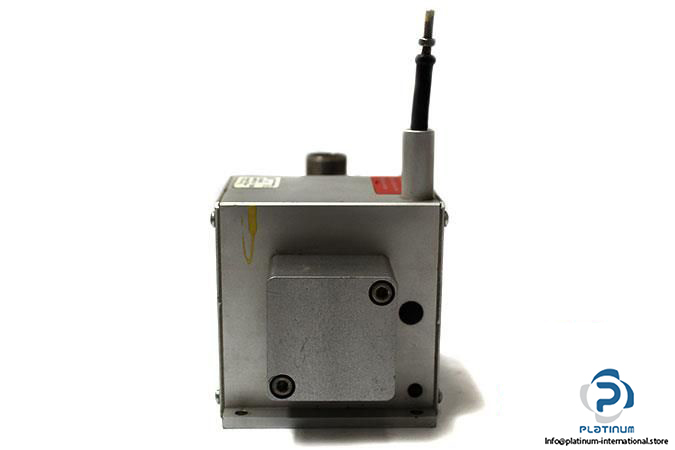

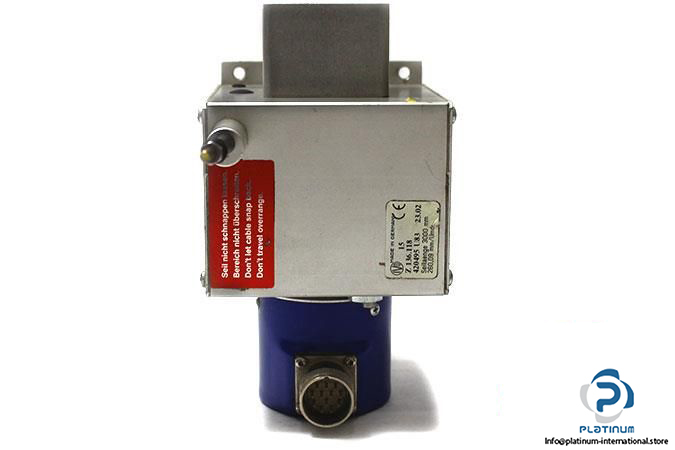

Attached Position Sensor

Manufacturer: IVO
Type: Position Sensor
Model: Z136.118
Id: 420495 U83 23.02
Ref No.: 15
Measurement Range: 3000 mm
Output Type: Absolute Encoder
Protection Class: IP 50
Development: 260.09 mm
