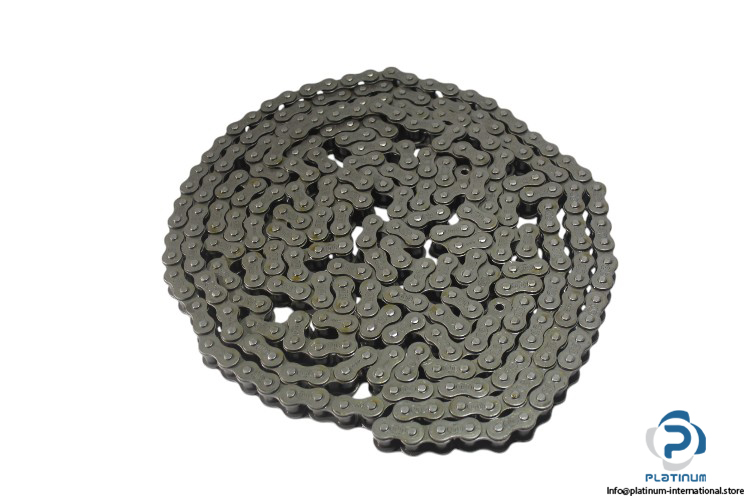

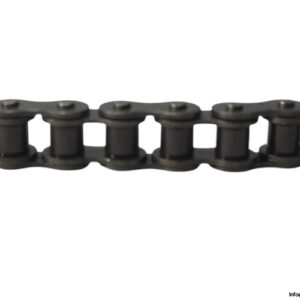

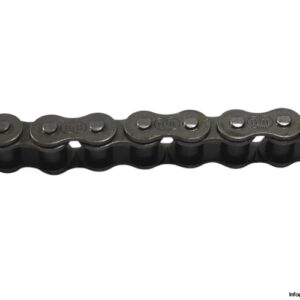

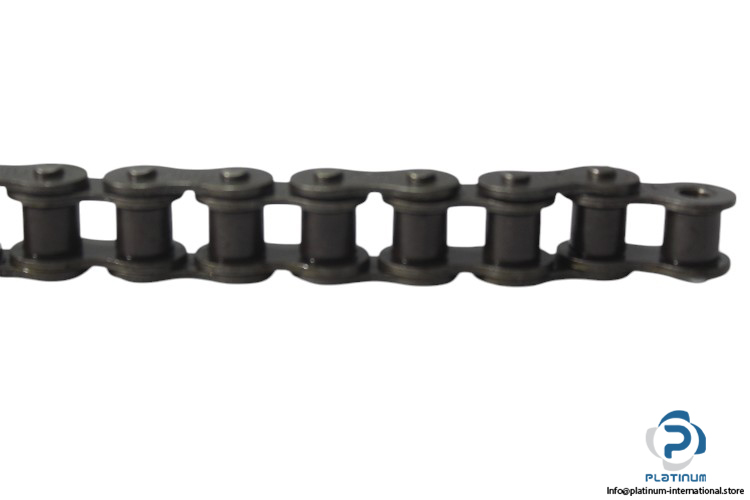

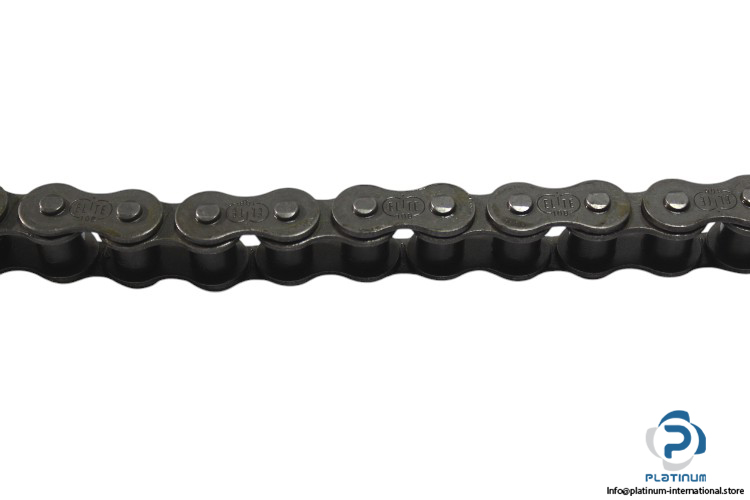

IWIS ELITE 10B-1 Roller Chain
The IWIS ELITE 10B-1 Roller Chain is a high-performance industrial chain designed for precision power transmission. Manufactured to DIN 8187 standards, it offers exceptional strength, durability, and reliability. With optimized plate geometry and high wear resistance, this roller chain ensures smooth operation in demanding applications.
- Manufacturer: IWIS ELITE
- Type: Roller Chain
- Model: 10B-1
- Part No.: 00080590949
- MNR: F20.E06.01

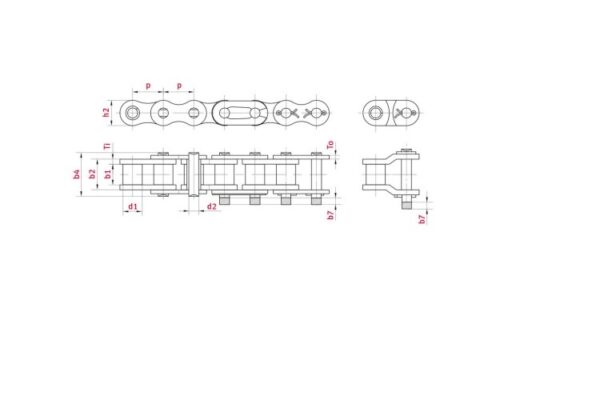

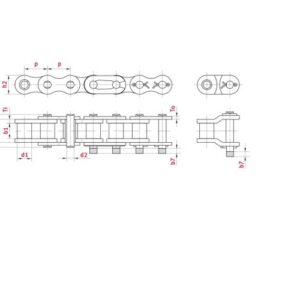

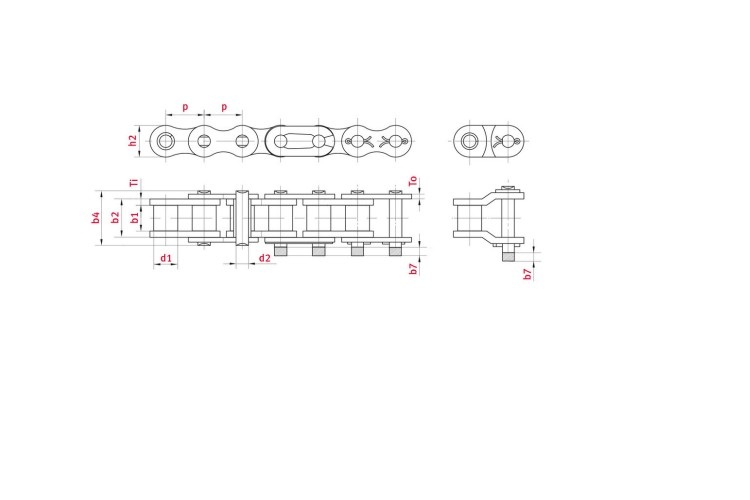

Technical Specifications
- DIN Standard: 8187-10B-1
- Roller Chain: 10B
- Pitch p: 15.875 mm
- Width Between Inner Plates b1 min.: 9.65 mm
- Roller Diameter d1 max.: 10.16 mm
- Pin Diameter d2 max.: 5.08 mm
- Pin Length b4 max.: 19.6 mm
- Max. Add. Length of Connecting Link b7 max.: 4.1 mm
- Total Width Inner Link b2 max.: 13.28 mm
- Plate Thickness Ti/To: 1.70/1.70 mm
- Height Inner Plate h2 max.: 14.73 mm
- Min. Tensile Strength ISO/DIN FU: 22.2 kN
- Avg. Tensile Strength FB: 27.5 kN
- Weight Per Meter: 0.93 kg
- Bearing Surface f: 0.67 cm²
