Manufacturer: IXYS

Type: Standard Rectifier Module

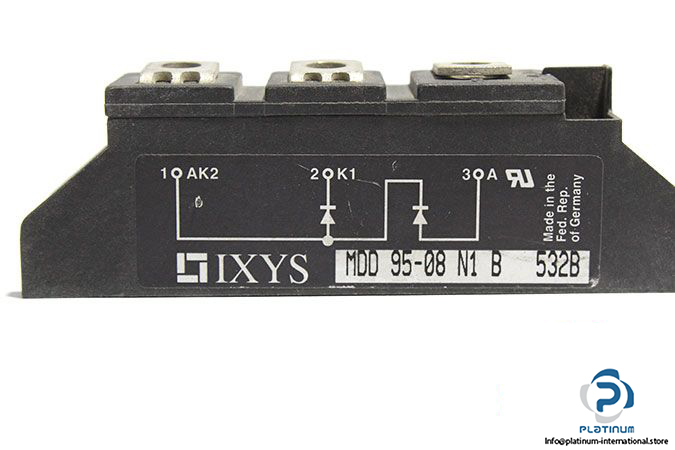

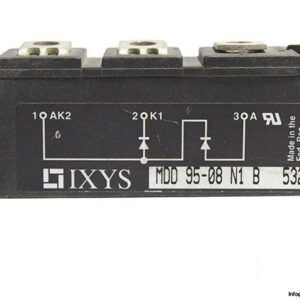

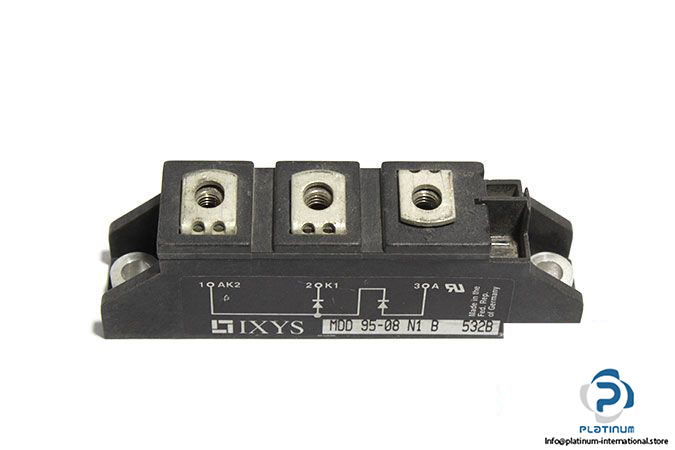

Model: MDD 95-08 N1 B

Applications: Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors

RMS current I_RMS: 200 A

Virtual junction temperatureT_VJ: -40 °C … 150 °C

V_RRM: 2x 800V

I_FAV: 120 A

V_F: 1.13 V

Non-repetitive reverse blocking voltage V_RSM (T_VJ=25°C): 900 V

Repetitive reverse blocking voltage V_RRM(T_VJ = 25°C): 800 V

Reverse current I_R @ V_R= 800 V/ T_VJ = 25°C: 200 µA

Operation temp.T_OP: -40°C … 125 °C

Weight: 0.08 kg
