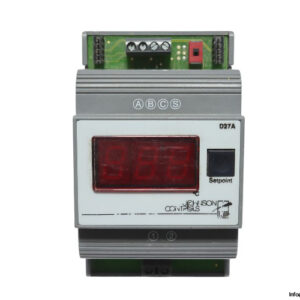

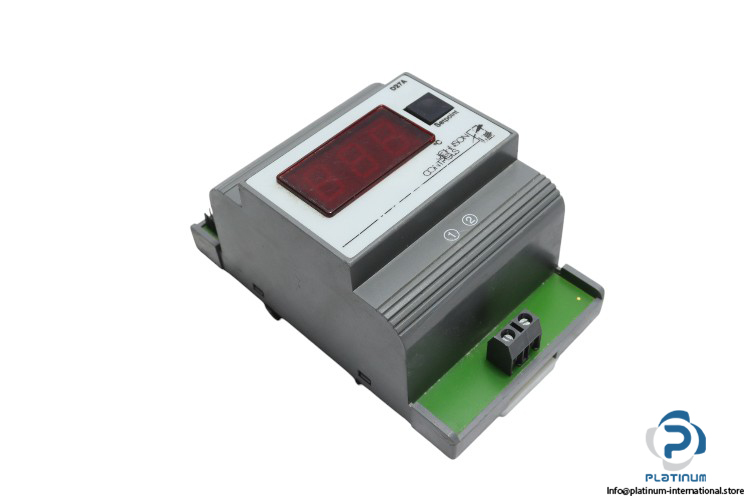

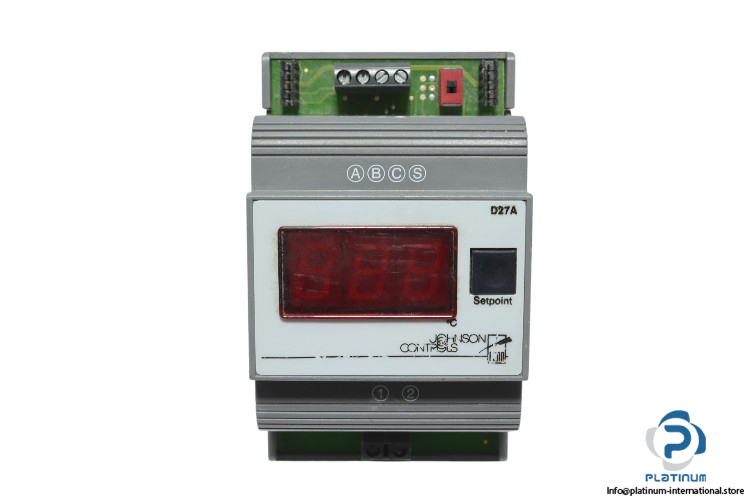

Johnson Controls D27A2N1 Temperature Display Module
The Johnson Controls D27A2N1 Temperature Display Module is a versatile temperature display solution designed for use in both stand-alone setups and in conjunction with temperature control modules. Featuring a wide operating temperature range, high accuracy, and easy integration with existing systems, this module is ideal for industrial and commercial applications requiring precise temperature monitoring.
- Manufacturer: Johnson Controls
- Type: Temperature Display Module
- Model: D27A2N1
- Series: D27A
Technical Information
- Features:
- Can be used as a stand-alone display or in conjunction with temperature control modules
- Setpoint read-out
- Power Supply: 230 V AC
- Display Range: -40 to 99°C
- Resolution: 1°C
- Accuracy: ±2 °C
- Output Relay Rating: SPDT 10(5)A 250 V AC, 10 A 30 V DC
- Terminals: Screw type, max. wire thickness 2.5 mm²
- Output Load:
- Voltage output Rmin: 1 kΩ
- Current output Rmax: 500 Ω
- Operating Ambient Temperature: -10 to +50 °C
Designed for precise and reliable temperature monitoring, the Johnson Controls D27A2N1 ensures seamless integration with temperature control systems, providing high accuracy and a broad range of applications in industrial and commercial environments.
