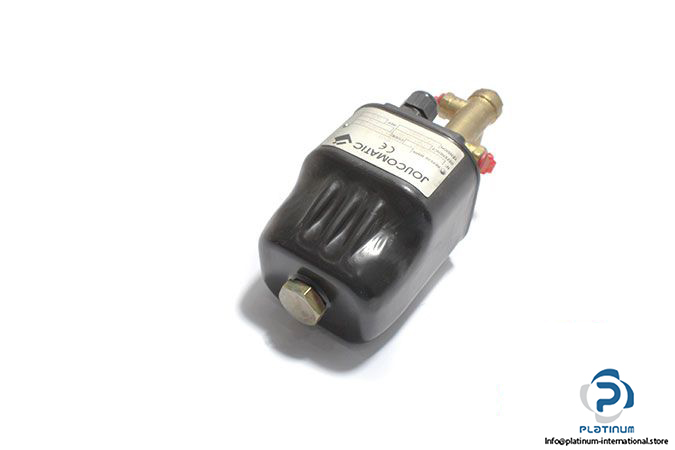

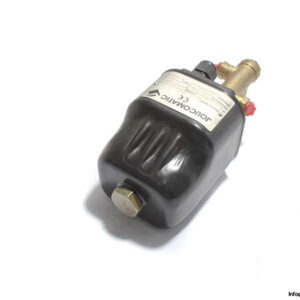

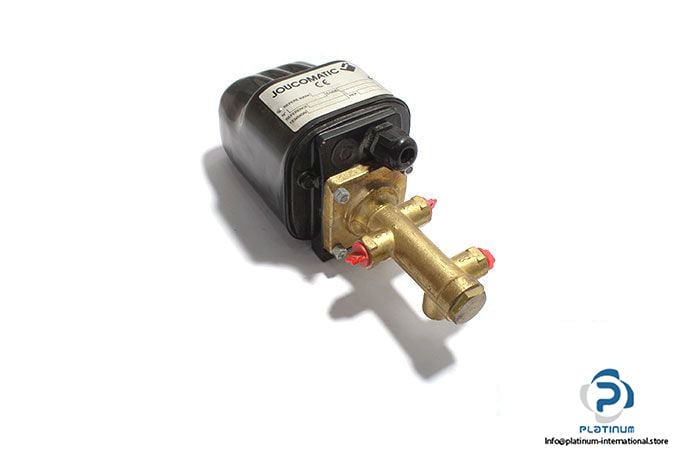

ASCO JOUCOMATIC Solenoid Valve MPV1

The ASCO JOUCOMATIC MPV1 is a high-performance solenoid valve designed for reliable control of compressed air systems. With a robust brass body, stainless steel internal parts, and fast response time, it ensures precision and durability under industrial operating conditions. Compact in design with G1/4 port size, this valve is suitable for a wide range of pneumatic automation applications.

• Manufacturer: ASCO JOUCOMATIC
• Type: Solenoid Valve
• Model: MPV1

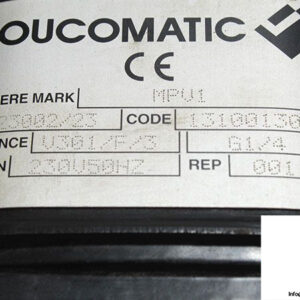

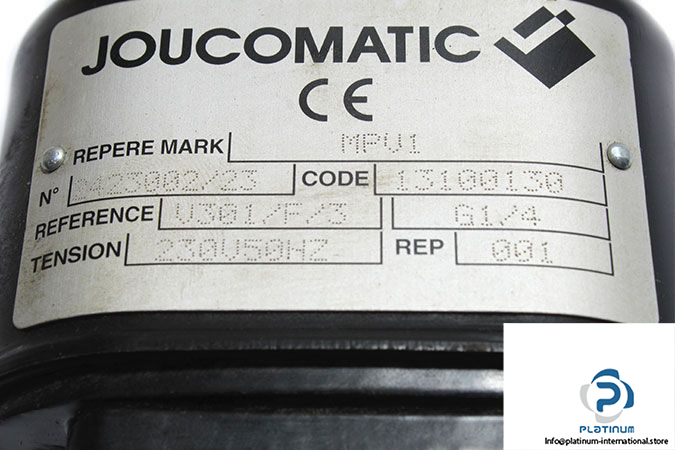

• Code: 13100130 / V301/F/3
• Part No.: 8423002/23
• REP: 001

Technical Information

• Fluids: Air
• Mediums: Compressed air
• Differential Pressure: 0 to 30 bar
• Ambient Temperature Range: -10°C / +40 °C
• Maximum Viscosity: 300 cSt (mm²/s)
• Response Time (with air ΔP = 6 bar): 30 ms
• Port Size: G1/4
• Material Body: Brass
• Internal Parts: Stainless steel
