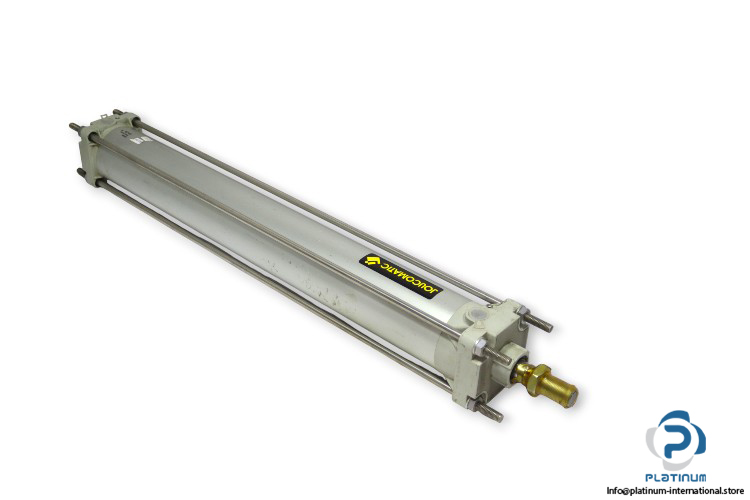

JOUCOMATIC PCN 80 A 600-DM Pneumatic Cylinder

The JOUCOMATIC PCN 80 A 600-DM Pneumatic Cylinder is a high-quality actuator designed for reliable linear motion in industrial automation systems. Built to operate with compressed air, it delivers precise movement and long service life under demanding conditions.

Manufacturer: JOUCOMATIC
Type: Pneumatic Cylinder
Model: PCN 80 A 600-DM

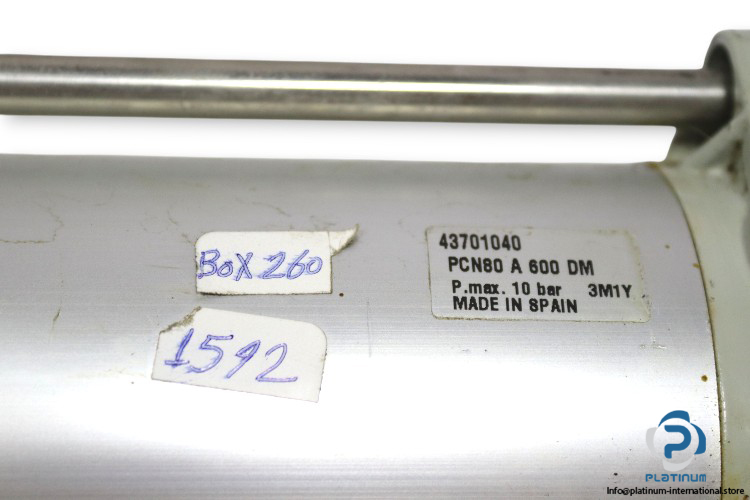

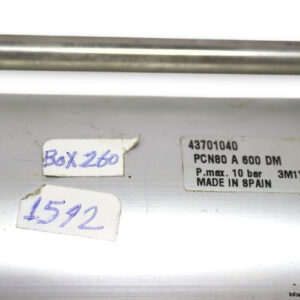

Part No.: 43701040
Ref Code: 3M1Y
Series: PCN

Technical Information

• Media: Compressed Air
• Bore Diameter: 80 mm
• Stroke: 600 mm
• Bore x Stroke: 80 x 600 mm
• Rod Diameter: 22 mm
• Frame Dimensions: 95 x 950 mm
• Pneumatic Connection: G 3/8
• Pressure Max.: 10 bar
• Operation Mode: Double
• Piston Rod End: Male
• Shape: Square
• Rod Direction: One Side
• Temperature Range: 10 “ 70 °C
