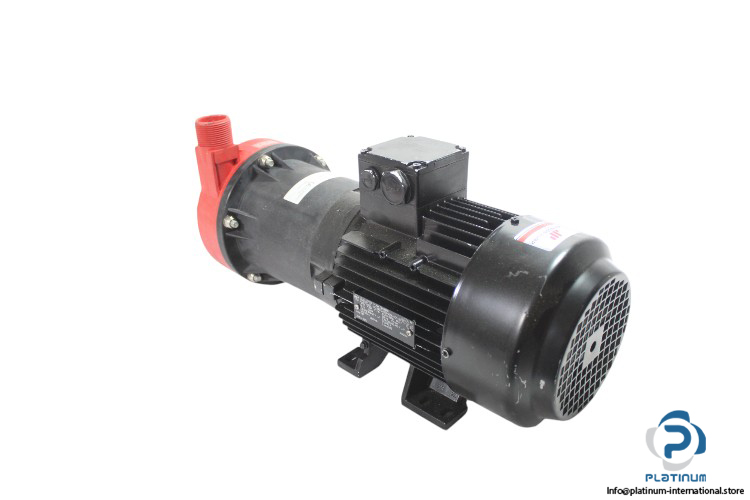

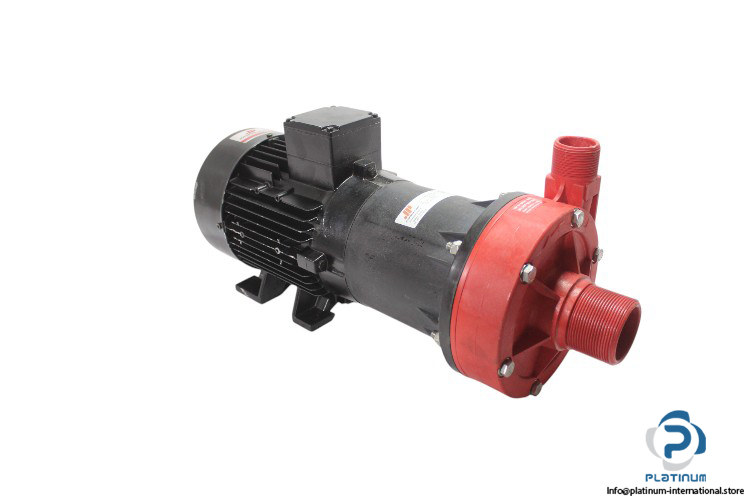

Johnson Pump MDR105P3-1V Seal-Less Centrifugal Pump

The Johnson Pump MDR105P3-1V is a high-performance seal-less centrifugal pump designed for industrial applications. It features a durable design with a 2-inch inlet and 1.25-inch outlet, ideal for a variety of fluid handling tasks.

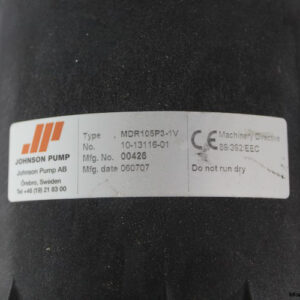

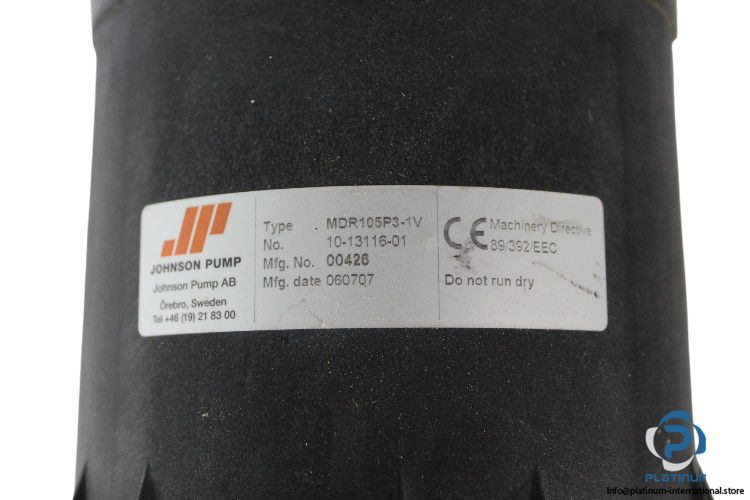

Manufacturer: Johnson Pump

Model: MDR105P3-1V

Type: Seal-Less Centrifugal Pump

Part No.: 10-13116-01

Mfg No.: 00426

Technical Information:

• Connection Inlet/Outlet: 2 / 1.25 inch
• Attachment: MEZ 7AA90S02 MOTOR

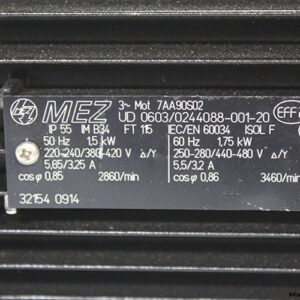

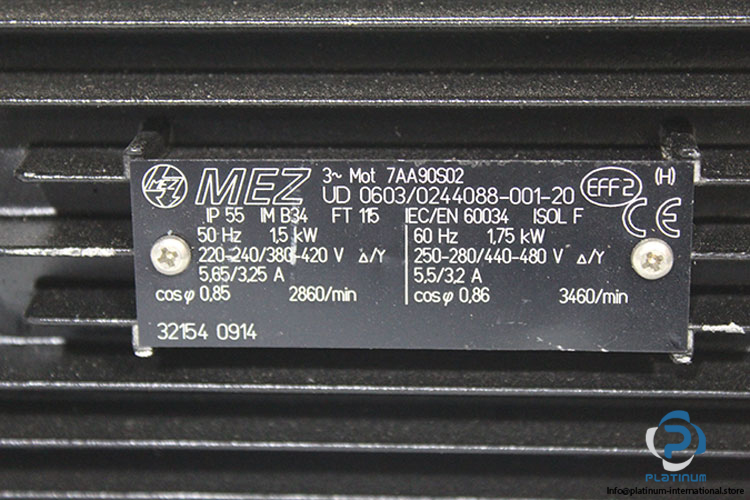

MEZ Three-Phase Motor “ 7AA90S02

Manufacturer: MEZ

Model: 7AA90S02

Type: Three-Phase Motor

Part No.: UD0603/0244088-001-20

Code: 32154 0914

Technical Information:

• Rated Voltage at 50Hz: 220 to 240/380 to 420 V
• Rated Current at 50Hz: 5.65/3.25 A
• Power at 50Hz: 1.5 kW
• Speed at 50Hz: 2860 rpm
• Power Factor (cos): 0.85
• Rated Voltage at 60Hz: 250 to 280/440 to 480 V
• Rated Current at 60Hz: 5.5/3.2 A
• Rated Power at 60Hz: 1.75 kW
• Rated Speed at 60Hz: 3460 rpm
• Power Factor (cos) at 60Hz: 0.86
• IP Rate: IP55
• Thermal Class: F
