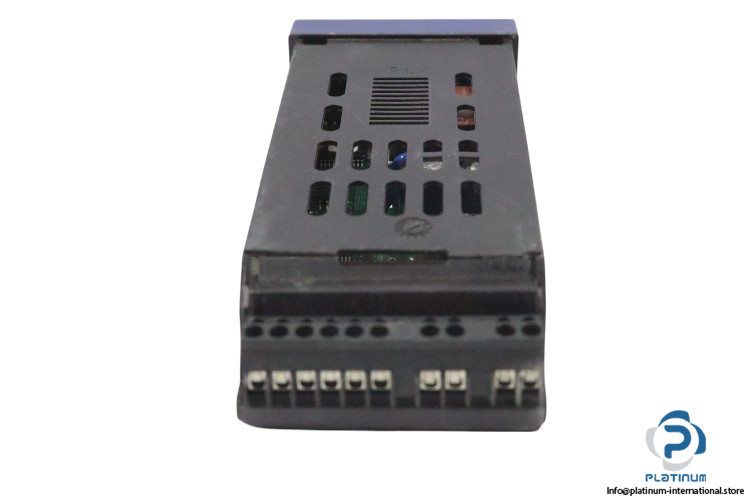

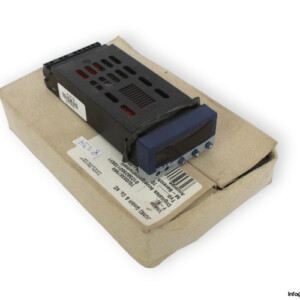

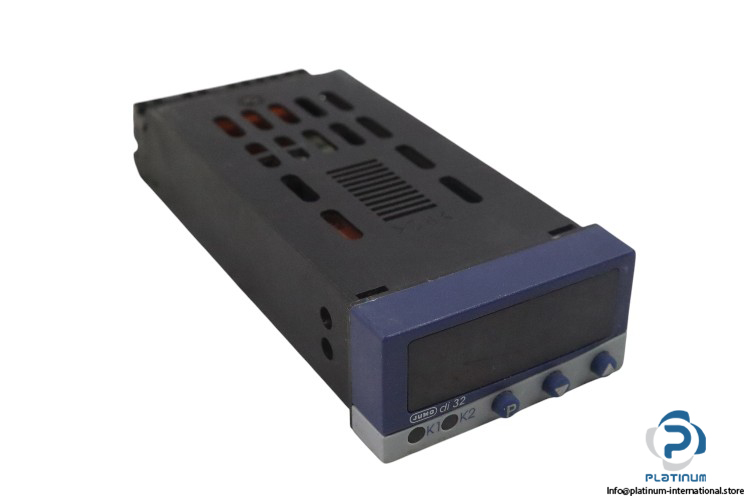

JUMO DI 32 Digital Microprocessor Indicator

The JUMO DI 32 is a compact and reliable digital microprocessor indicator designed for precise temperature monitoring and industrial process control. Featuring flexible input options and dual output capability, this unit is ideal for a wide range of automation and measurement applications.

Manufacturer: JUMO

Type: Digital Microprocessor Indicator

Model: DI 32

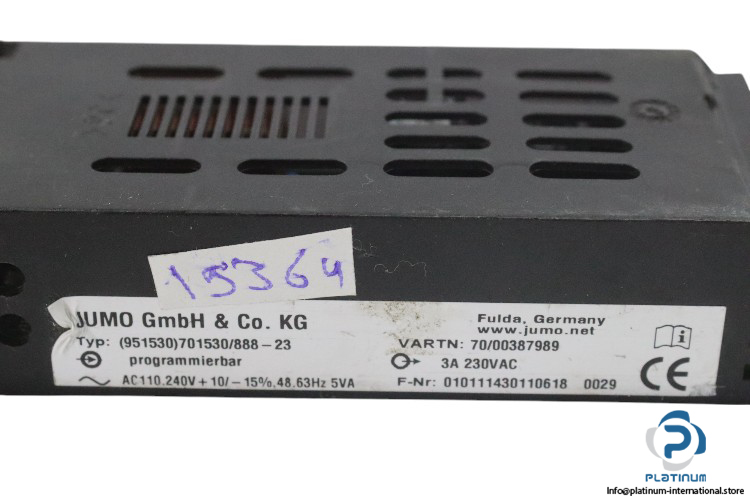

MRN: (951530)701530/888-23

Technical Data:

• Operating Voltage: 110 / 240 V AC
• Frequency: 48 / 63 Hz
• No. of Logic Input: 1
• Output 1: Relay, 230 V, 3 A
• Output 2: Logic Output, 5 V, 20 mA
• Contact Rating: 1 NO, 3 A at 230 V AC
• Signal Input: Thermocouple, Pt100/1000, Potentiometer, Resistance Transmitter
• Logic Input: Floating contact (alternative to Output 2)
• Range Limits: -200 / 850°C
• Data Backup: EEPROM
• Display: 7-segment display, 4 digits, red
• Display Range/Unit: -1999 / +9999 digit / °C / °F
• Ambient Temperature Range: 0 / 55°C
• Protection Degree: to EN 60529, Front: IP66, Rear: IP20
• Bezel Dimensions: 96 × 48 mm
