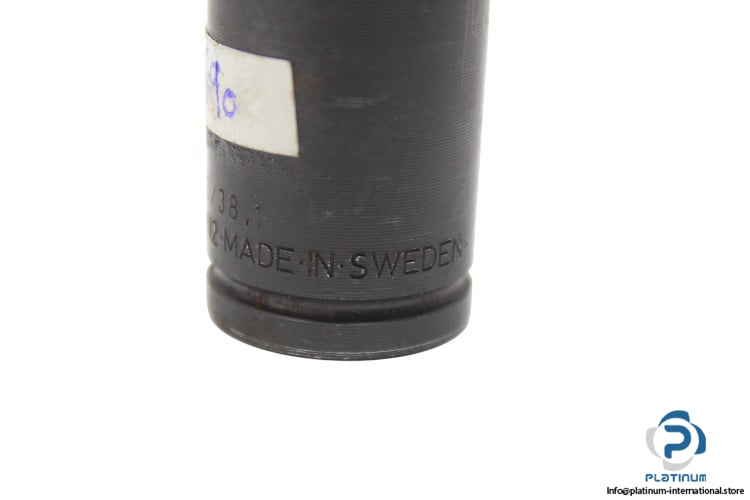

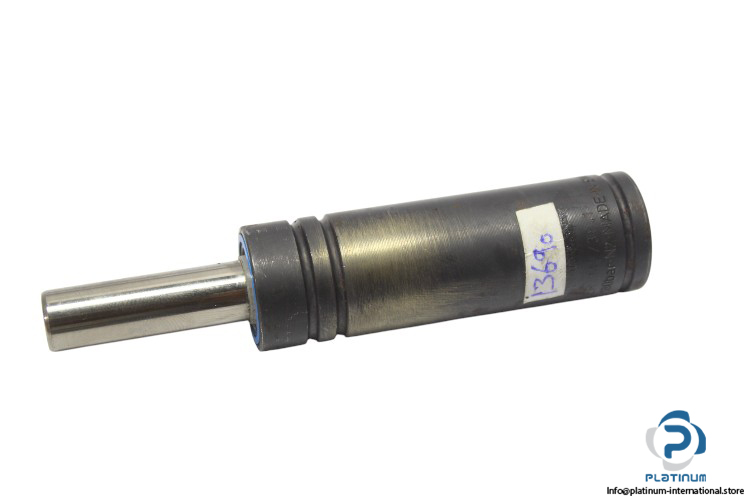

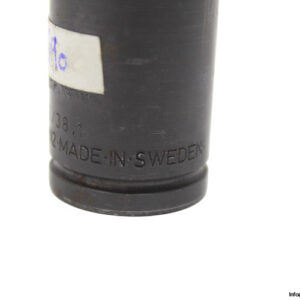

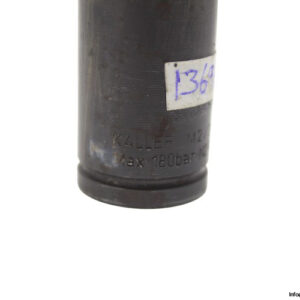

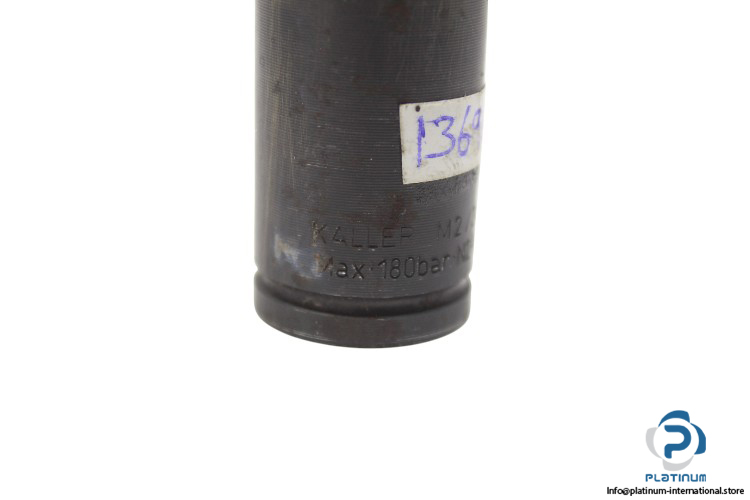

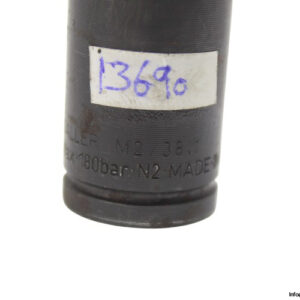

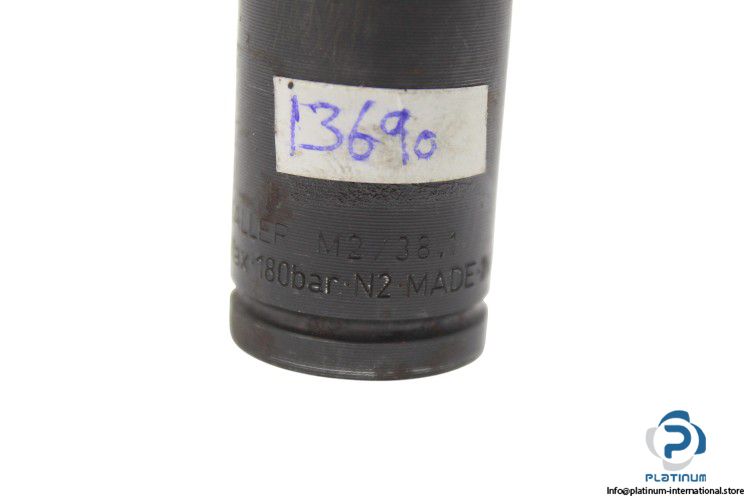

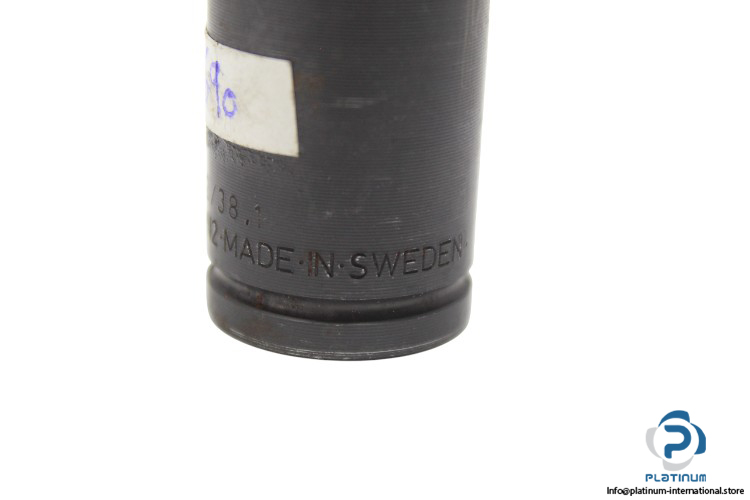

Kaller M2/38.1 Gas Spring Actuator
The Kaller M2/38.1 Gas Spring Actuator is designed for high-performance applications requiring precise force and motion control. With a compact design and optimized force generation, this gas spring actuator offers exceptional durability and reliability in industrial systems.
Manufacturer: KALLER
Type: Gas Spring Actuator
Model: M2/38.1
Technical Data:
- Piston Diameter: 25 mm
- Stroke: 38 mm
- Total Length: 118 mm
- Rod Diameter: 12 mm
- Charging Pressure (Psi): 1958
- End Force At Full Stroke (LBF): 695
- Force Increase By Temperature Percent Per (°F): 0.17
- Gas Volume (CuF): 0.00052972
- Initial Force at Max. Pressure (LBF): 340
- Max Charging Pressure (Psi): 2610
- Max Piston Rod Velocity (FtMin): 314.96
- Max. Operating Temperature (°F): 176
- Min Charging Pressure (Psi): 362
- Min. Operating Temperature (°F): 32
