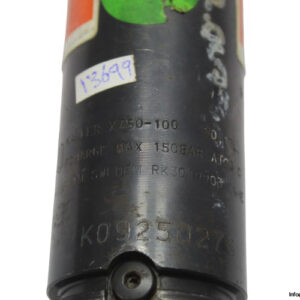

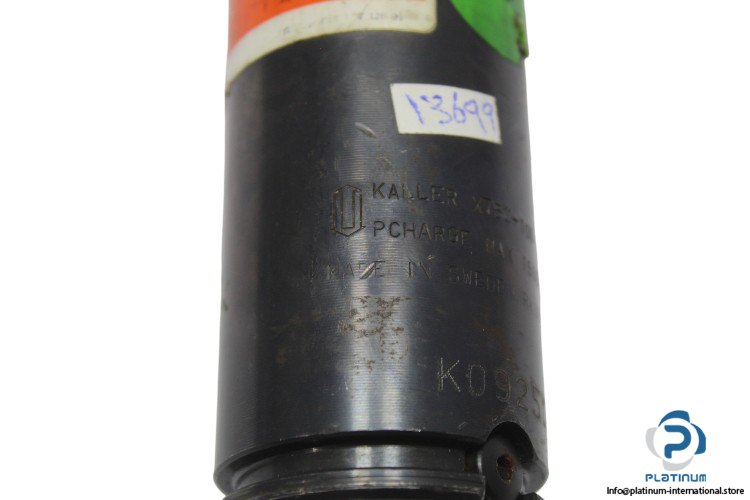

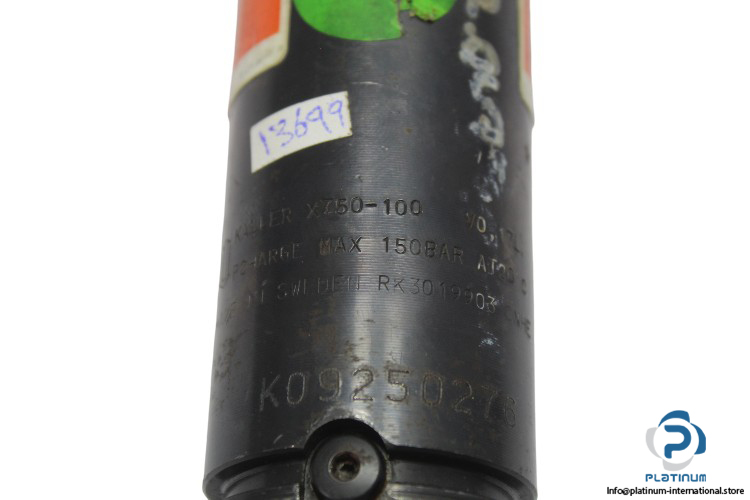

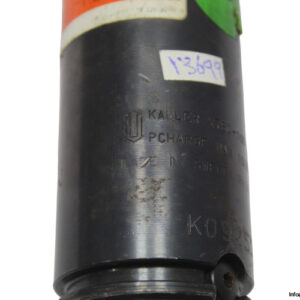

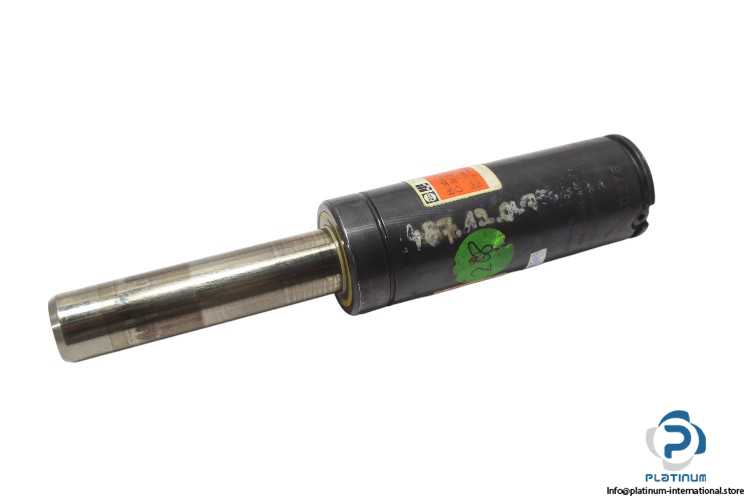

Kaller X 750-100 Gas Spring Actuator

The Kaller X 750-100 gas spring actuator provides high-performance motion control with a piston diameter of 45 mm and a stroke length of 100 mm. Built for reliability in demanding applications, it offers excellent force generation and thermal performance.

Manufacturer: KALLER

Type: Gas Spring Actuator

Model: X 750-100

Part No.: K09250276

Technical Data:

• Piston Diameter: 45 mm
• Stroke: 100 mm
• Total Length: 230 mm
• Rod Diameter: 25 mm
• End Force at Full Stroke: 2675 lbf
• Force Increase by Temperature Percent Per (°F): 0.17
• Gas Volume: 0.17 Liter
• Initial Force at Max. Pressure: 1665 lbf
• Max Charging Pressure: 2175 psi
• Max Piston Rod Velocity: 314.96 ft/min
• Max. Operating Temperature: 176°F
• Min Charging Pressure: 362 psi
• Min. Operating Temperature: 32°F
• Recommended Max Strokes Per Minute: 50-100
