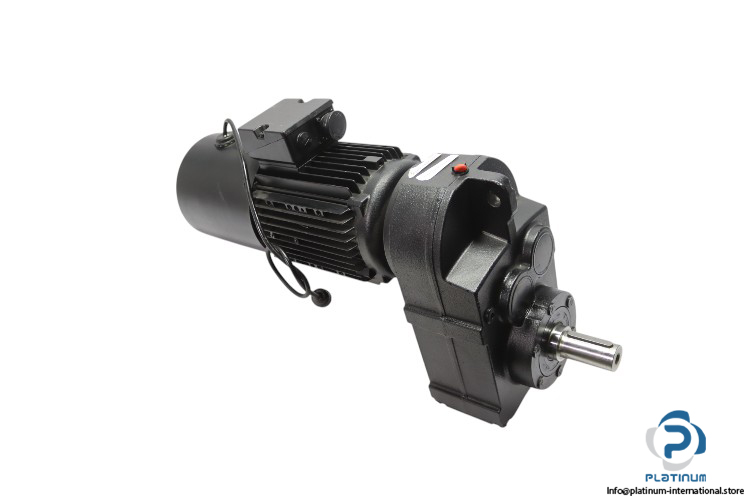

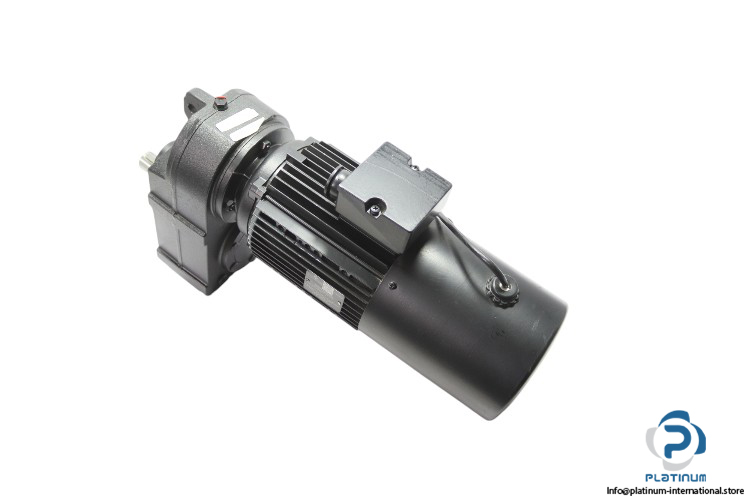

Karl Mayer F33BV DL90L4U B03 I TS Gear Motor

The Karl Mayer F33BV DL90L4U B03 I TS Gear Motor is designed for reliable, high-performance operation in demanding industrial applications. With a wide range of power and speed options, it delivers consistent torque and efficiency.

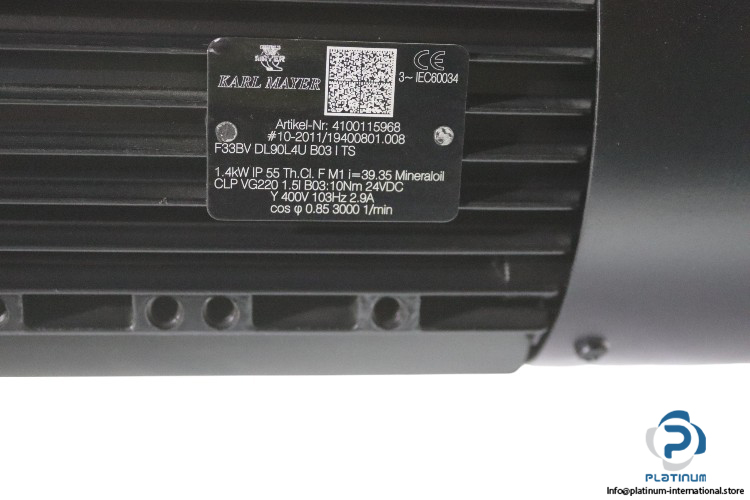

Manufacturer: Karl Mayer

Model: F33BV DL90L4U B03 I TS

Type: Gear Motor

Art. No.: 4100115968

Part No.: 10-2011/19400801.008

Technical Information:

• Power: 1.4 kW
• Voltage: 24 V DC / Delta 400 V
• Current: 2.9 A
• Ratio: 39.35
• Speed: 3000 rpm
• Frequency: 103 Hz
• Power Factor: cos 0.85
• Torque: 10 Nm
• Class: F
• IP Rate: 55
