Manufacture: KDF
Type: Tapped Base Pillow Blocks
Model: UCPA 208
Bearing No.: UC208
Housing No.: PA208

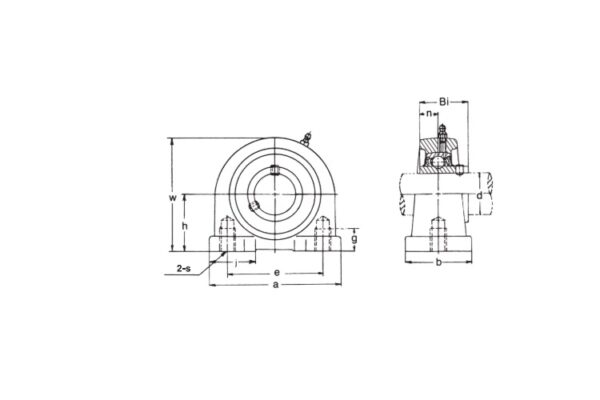

Dimensions
Shaft diameter d: 40 mm
Overall length a: 116 mm
Overall height w: 100 mm
Base width b: 58 mm
Height of spherical seat center h: 49.2 mm
Distance between Attachment Bolts e: 84 mm
Dynamic load rating: 27700 N
Static load rating: 17000 N
Housing type: Tapped Base Pillow Block
