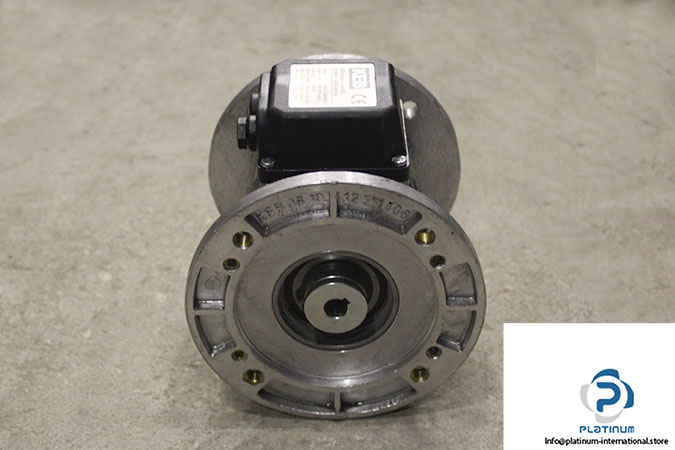

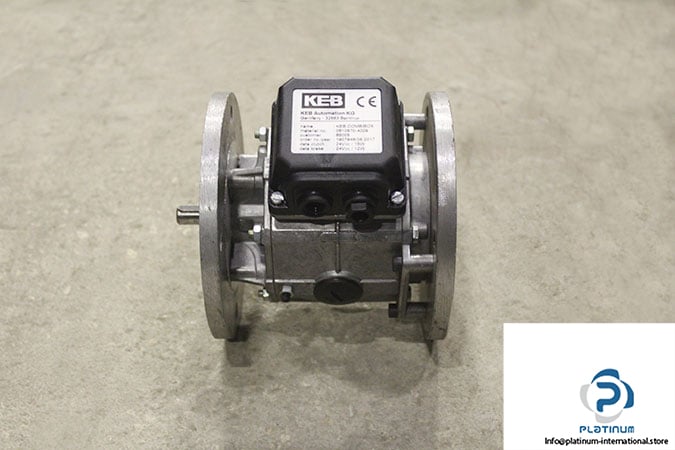

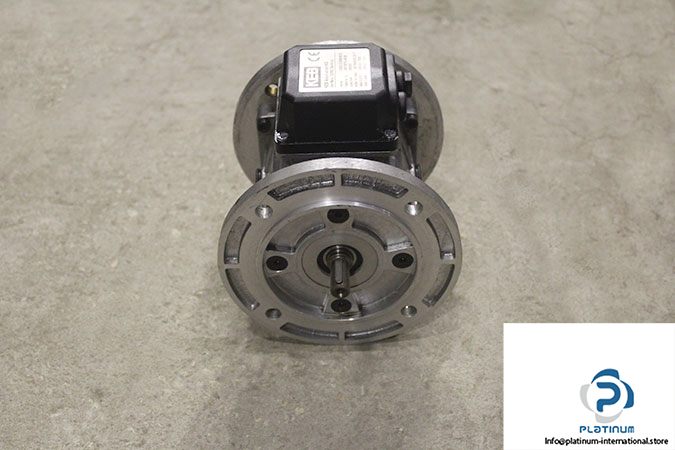

KEB 0610670-4009 Clutch Brake Magnet Technology

The KEB 0610670-4009 is a high-performance clutch brake unit from the Combibox series, designed with advanced magnet technology. Offering reliable torque transfer, dual clutch and brake function, and compact design, it ensures precise and efficient motion control in industrial machinery.

Manufacturer: KEB
Type: Clutch Brake Magnet Technology
Model: 0610670-4009
Combibox: Bore In / Shaft Out
Size: 06
Type: 10
Design: 670

Technical information

• Voltage Clutch: 24 VDC
• Voltage Brake: 24 VDC
• Torque Clutch: 7 Nm
• Torque Brake: 7 Nm
• Power Clutch: 15 W
• Power Brake: 12 W
• Shaft/Bore Diameter: 14 mm
• Insulation Class: B
