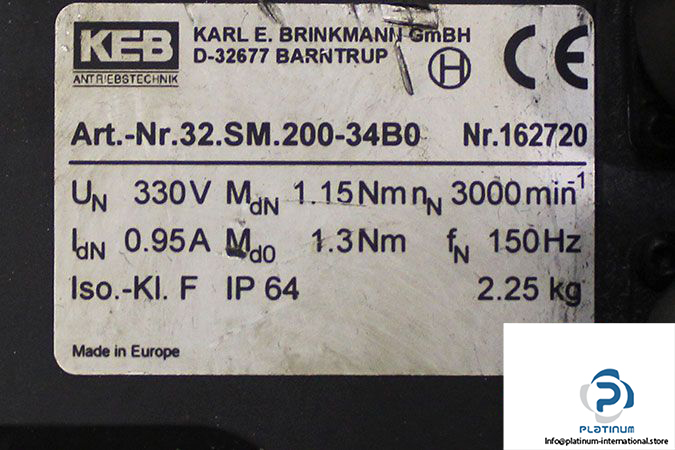

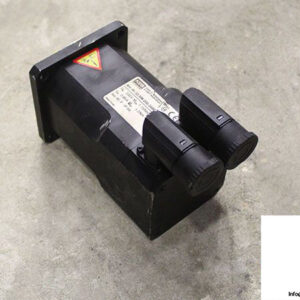

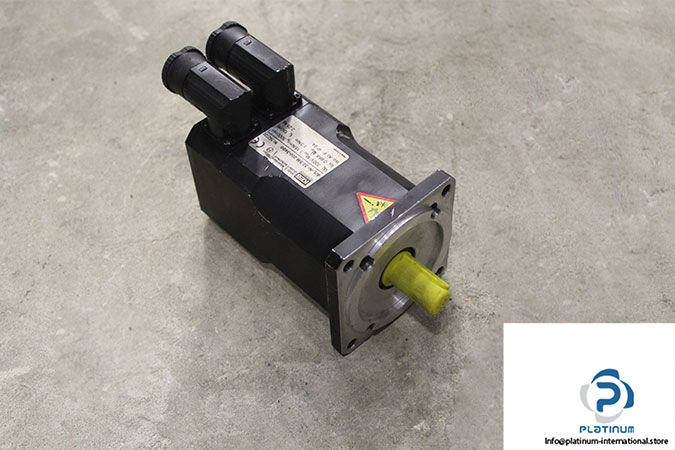

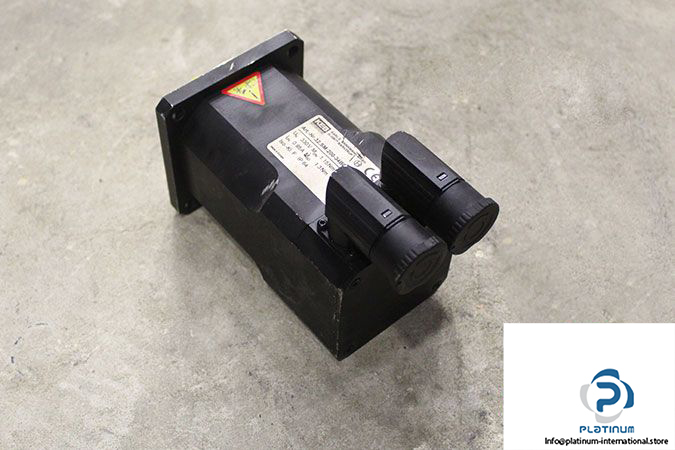

KEB 32.SM.200.34B0 SYNCHRONOUS SERVO MOTOR
Designed for high-precision motion control applications, the KEB 32.SM.200.34B0 synchronous servo motor delivers reliable performance with excellent torque consistency. Ideal for automation systems, this self-cooled motor combines robust construction with intelligent features such as resolver feedback and IP64 protection.
Manufacturer: KEB
Type: Synchronous Servo Motor
Model: 32.SM.200.34B0
Part No.: 162720
Technical Information
- Size: 32
- Speed: 3000 rpm
- Rated Voltage: 330 V
- Stall Torque: 1.3 Nm
- Current at Stall Torque: 1.7 A
- Rated Torque: 1.15 Nm
- Rated Current: 0.95 A
- Rated Power: 360 W
- Voltage Constant: 66.5 V/1000min»¹
- Max. Torque: 5.2 Nm
- Max. Current: 7.2 A
- Frequency: 150 Hz
- Connection: Connector / Turnable Angular Flange Connector
- Cooling: Self-Cooling with Flange B5 IFT5 Compatible
- Version: Without Brake; with Feather Key
- Encoder: 2-Pole Resolver
- Insulation Class: F
- Protection Class: IP64
