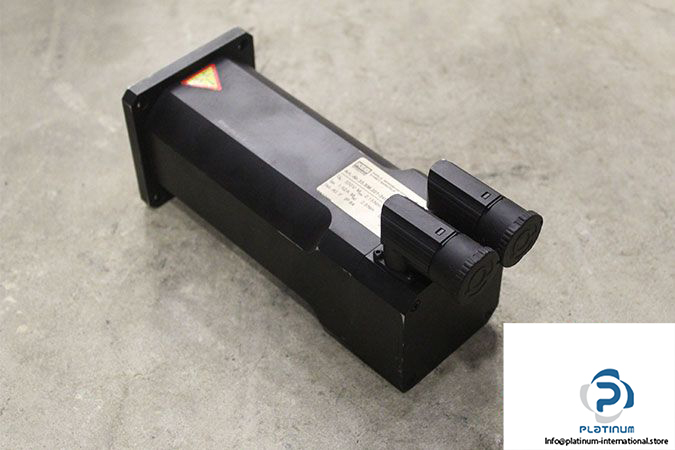

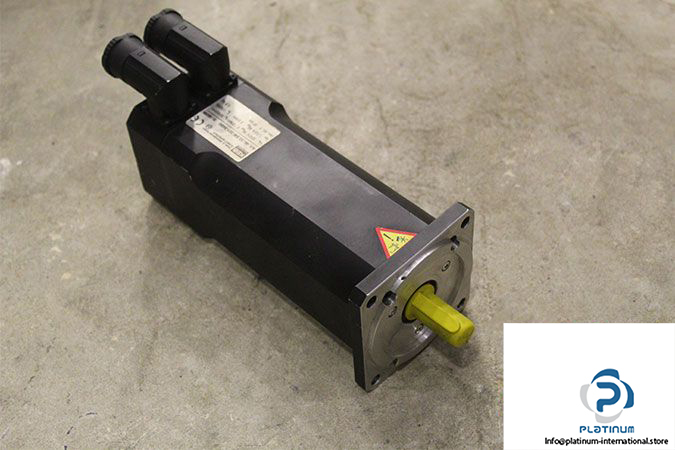

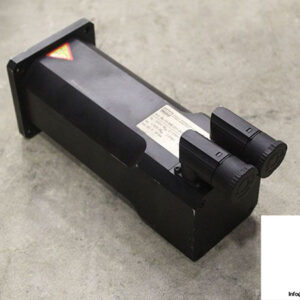

KEB 33.SM.201.34B0 SYNCHRONOUS SERVO MOTOR

The KEB 33.SM.201.34B0 is a high-performance synchronous servo motor engineered for precision motion control applications. With self-cooling technology and integrated brake, it ensures reliable operation and torque stability in demanding environments. This compact motor is optimized for use in automated systems and industrial machinery.

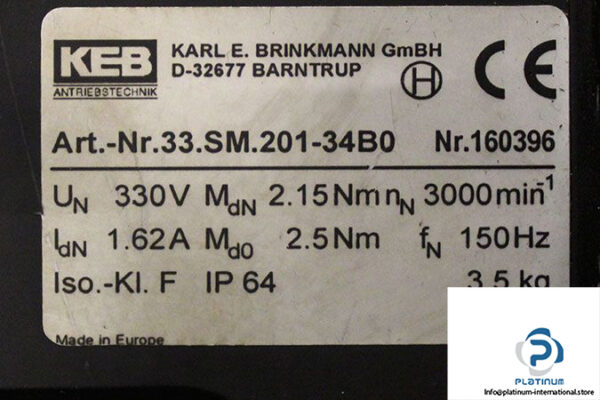

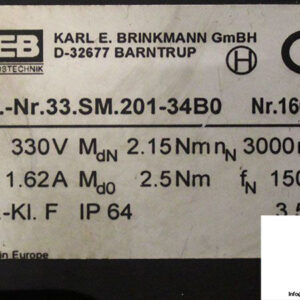

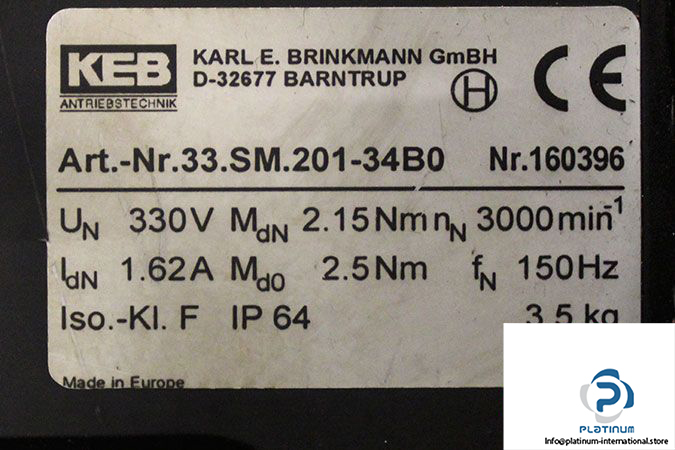

Manufacturer: KEB
Type: Synchronous Servo Motor
Model: 33.SM.201.34B0
Part No.: 160396

Technical Information

• Size: 33
• Speed: 3000 rpm
• Rated Voltage: 330 V
• Stall Torque: 2.5 Nm
• Rated Torque: 2.15 Nm
• Rated Power: 680 W
• Voltage Constant: 70.7 V/1000min^-1
• Max. Torque: 10 Nm
• Rated Current: 1.62 A
• Frequency: 150 Hz
• Connection: Connector / Turnable Angular Flange Connector
• Cooling: Self-Cooling with Flange B5 IFT5 Compatible
• Version: Standard with Brake
• Encoder: 2-Pole Resolver
• Brake Type: 05.P1.320
• Brake Power: 12 W
• Holding Torque: 4.5 Nm
• Moment of Inertia: 0.18 Kgcm²
• Max. Speed: 10,000 min^-1
• Brake Mass: 0.35 kg
• Brake Rated Voltage: 24 V (+6%, -10%)
• Brake Rated Current: 0.5 A
• Insulation Class: F
• Protection Class: IP64
