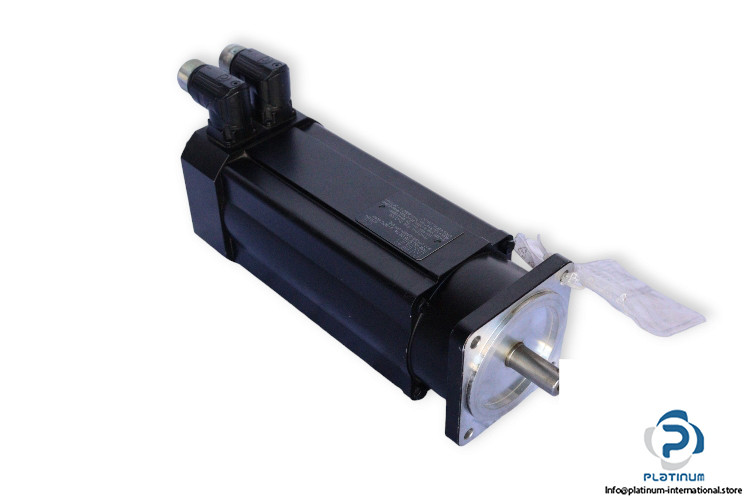

KEB TA 32 V30 BP05 ER TW AC SERVO MOTOR
This KEB AC Servo Motor is engineered for high-performance applications requiring precision, power, and control. With integrated resolver feedback and braking system, it is suitable for automation systems demanding superior torque stability and speed regulation.
Manufacturer: KEB
Type: AC Servo Motor
Model: TA 32 V30 BP05 ER TW
Part no: 11-2013/21234501.001

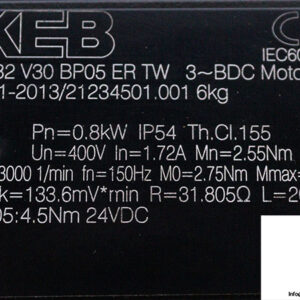

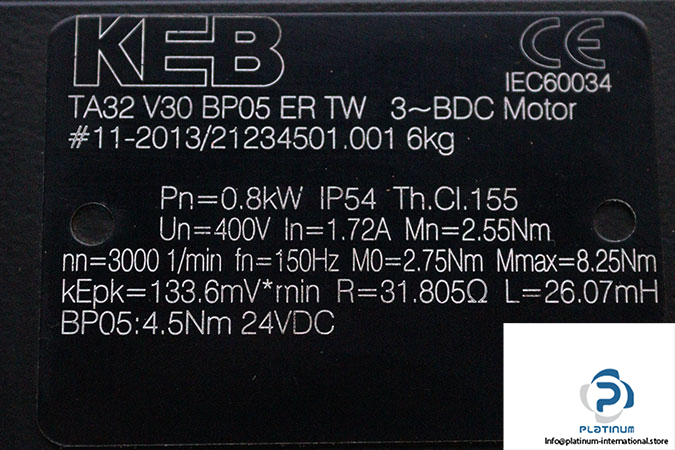

Technical Information
- Rated Voltage: 400 V
- Rated Current: 1.72 A
- Rated Torque: 2.55 Nm
- Rated Power: 0.8 kW
- Rated Speed: 3000 rpm
- Frequency: 150 Hz
- Stall Torque: 2.75 Nm
- Max. Torque: 8.25 Nm
- Constant Voltage: 133.6 mV*min
- Resistance: 31.805 ohm
- Brake: BP05
- Brake Voltage: 24 VDC
- Brake Power: 12 W
- Brake Torque: 4.5 Nm
- Encoder System ER: Resolver (resolution 12 bit/revolution)
- Encoder Voltage: 7 VAC
- Encoder Frequency: 10 kHz
- Protection Class: IP 54
- Temperature Class: 155°C
- Thermistor Sensor: PTC
- Number of Poles: 6 pole
