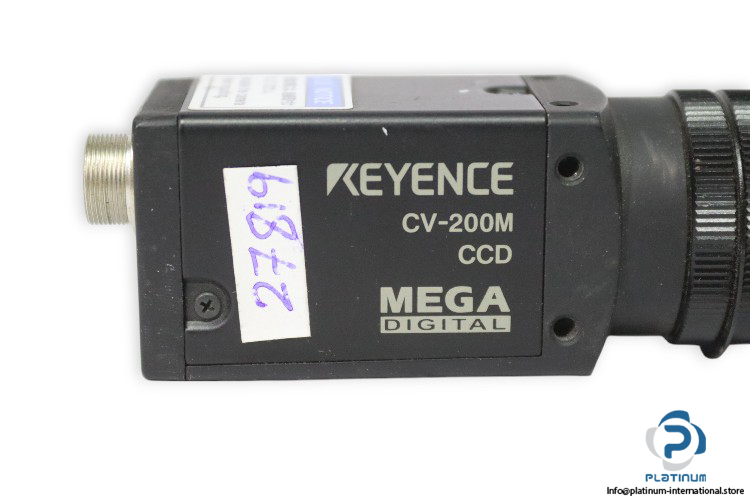

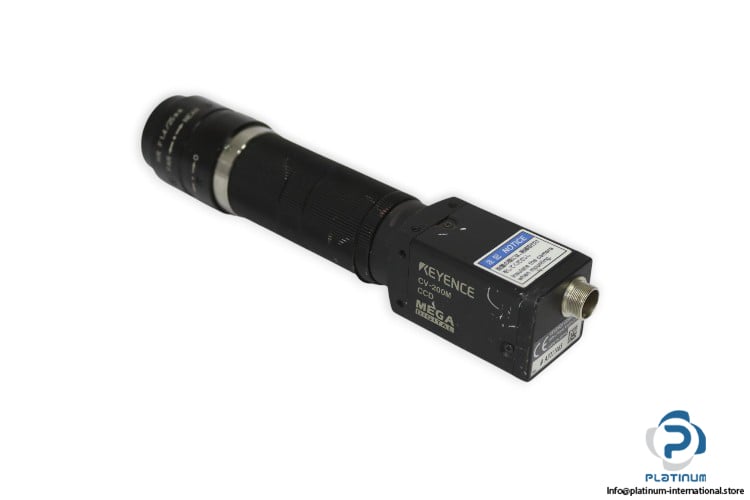

KEYENCE CV-200M DIGITAL MONOCHROME CAMERA

High-resolution industrial camera with precise imaging and fast data transfer, ideal for inspection, measurement, and machine vision applications. Includes a compatible HR lens for enhanced clarity and precision.

• Manufacturer: Keyence
• Type: Digital 2-million pixel Black and White Camera (Monochrome) with Lens
• Model: CV-200M / CCD

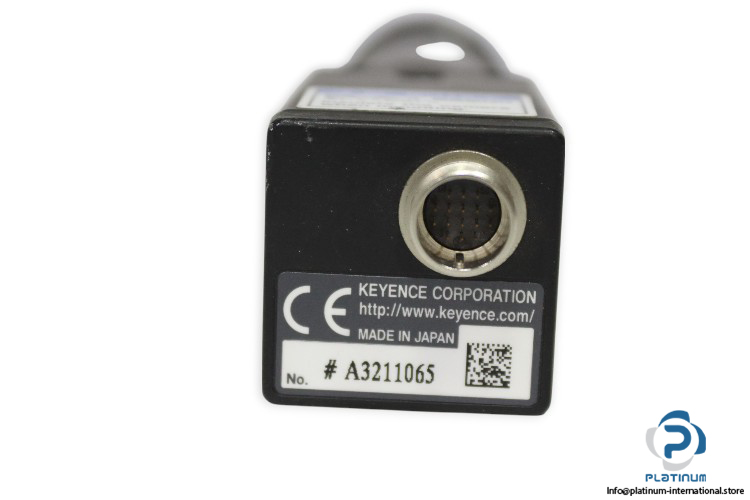

• Ref. Code: A3211065

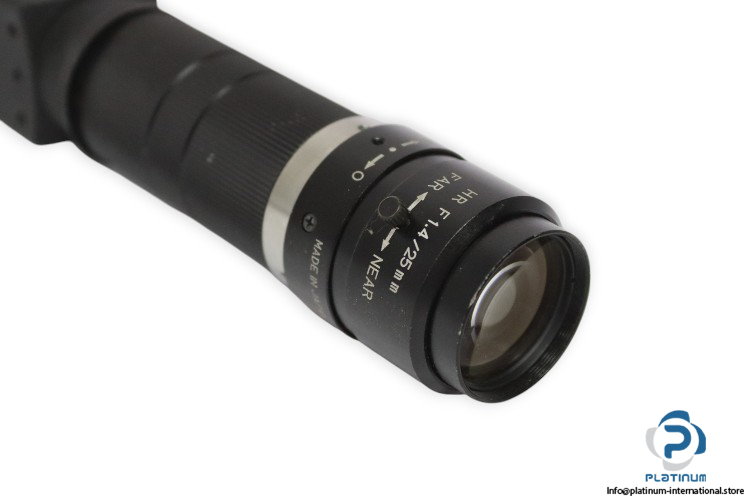

• Lens Code: HR F1.4/25MM

Technical Information

• Image Sensor: 1/1.8-inch Monochrome CCD, 2.01¯MP (approx. 1,920,000 valid pixels)
• Pixel Size: 4.4¯x¯4.4¯µm
• Resolution: 1600 x 1200
• Transfer System: Digital Serial Transfers
• Pixel Transfer Frequency: Up to 82¯MHz
• Scan System: Progressive & Interlace Modes
• Shutter Speed: 1/15 to 1/20,000¯sec (numeric settings)
• Lens Mount: C-mount
• Ambient Temperature: 0 to +40¯°C
