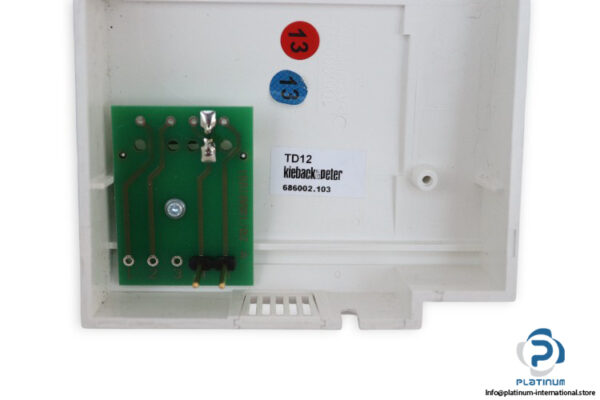

Manufacturer: Kieback and Peter
Type: Room temperature sensor
Model: TD12

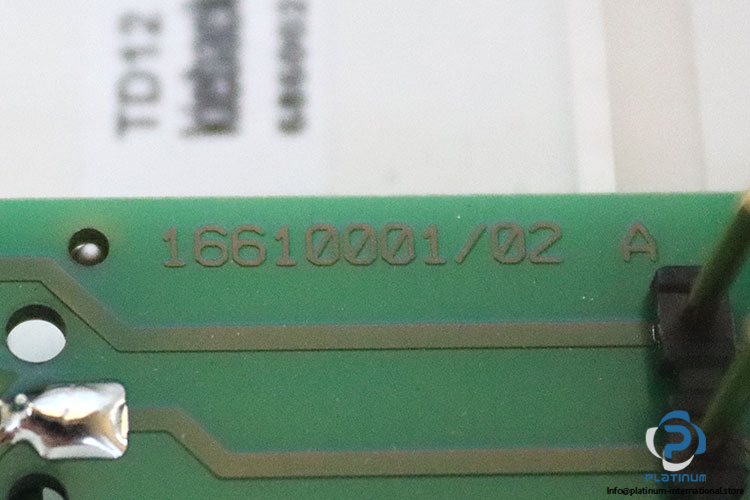

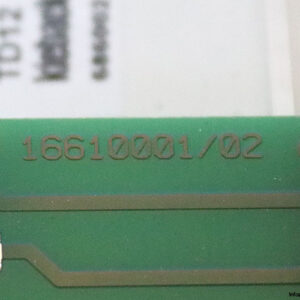

Part No.: 16610001/02A

Function: Temperature voltage transmitter
Measured quantity: Room temperature in homes or offices
Measuring element: KP10 active measuring element; 2.73 V at 0 °C; TC = 10 mV/K
Measuring tolerance: Typically, ±0.2 K
Measuring range: -20 … +60°C
Ambient temperature: -20 … +60°C

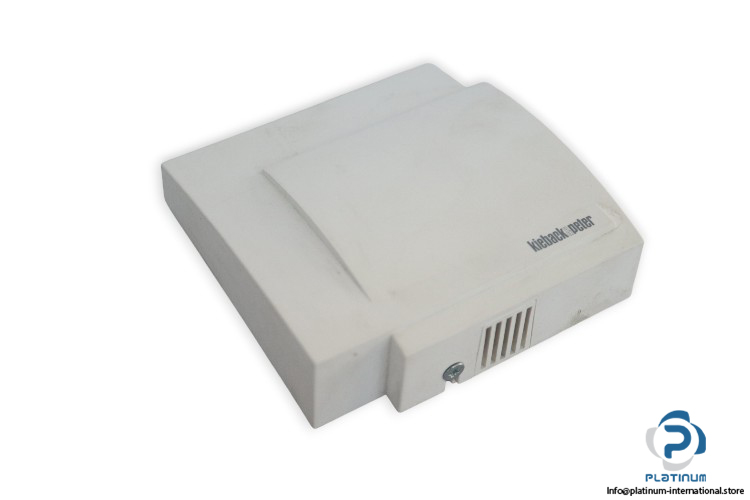

Housing: Plastic housing, RAL 9010 (pure white)
Setting knob: 10 kΩ potentiometer
Degree of protection: IP30
Dimensions: 82.5 x 82.5 x 28.3 mm
