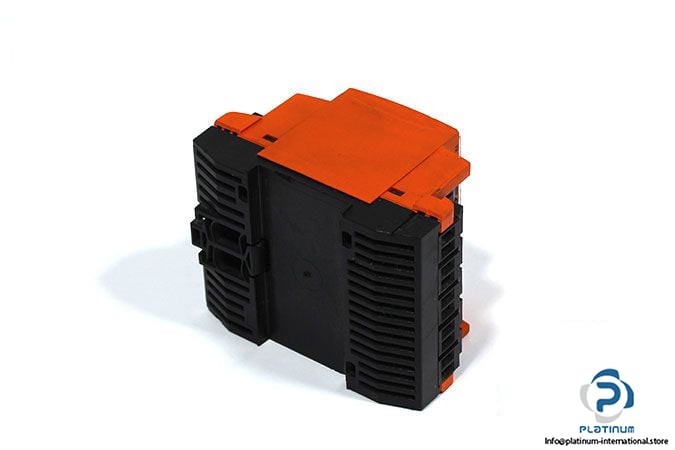

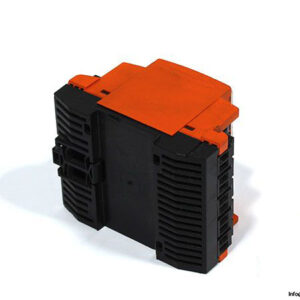

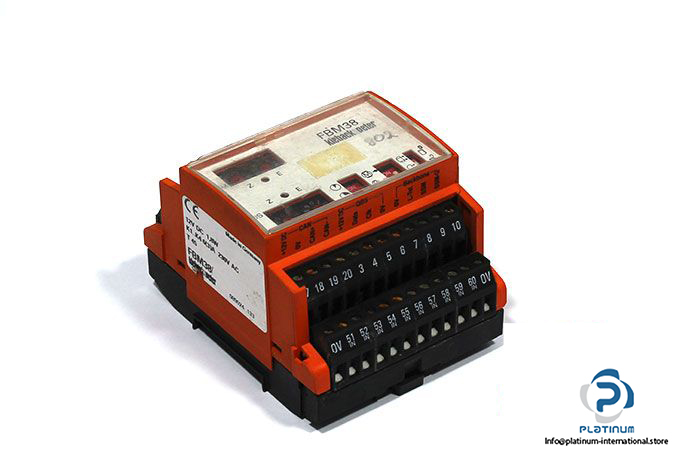

Manufacturer: Kieback&Peter

Type: Fieldbus Module

Model: FBM38

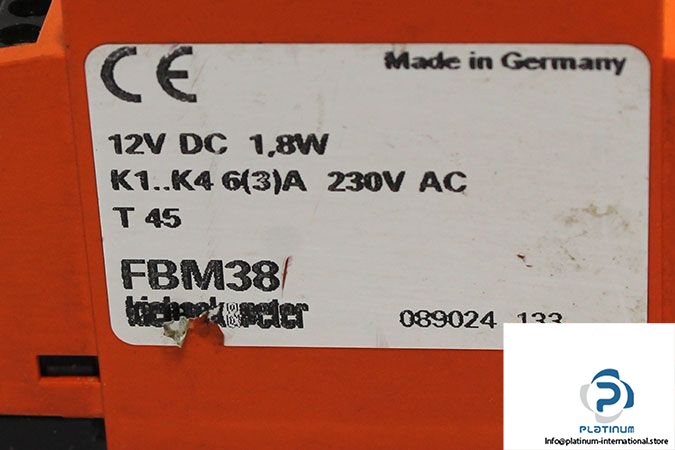

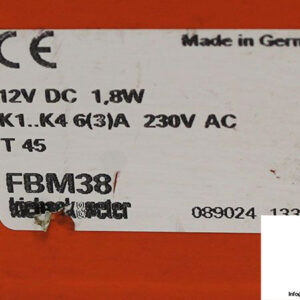

Operating Voltage: DC 12 V ±20%, 150 mA, 1.8 VA

Inputs: 10 binary inputs (terminals 51/IN–60/IN), function selection using macro settings, invertible switching function for malfunction message inputs (normally closed/normally open)

Outputs: 4 potential-free changeover switches (K1–K4), contact load: max. AC 230 V / DC 24 V, 6 (3) A The assembly may only be operated on one mains phase.

Inputs and Outputs: backbone 3 binary inputs / outputs (terminals 7–10), LED test and collective malfunction message with acknowledgement

Operating Temperature: 0…45 °C

Protection Class: IP20

Dimensions: 71 x 90 x 60 mm

Weight: 0.23 kg
