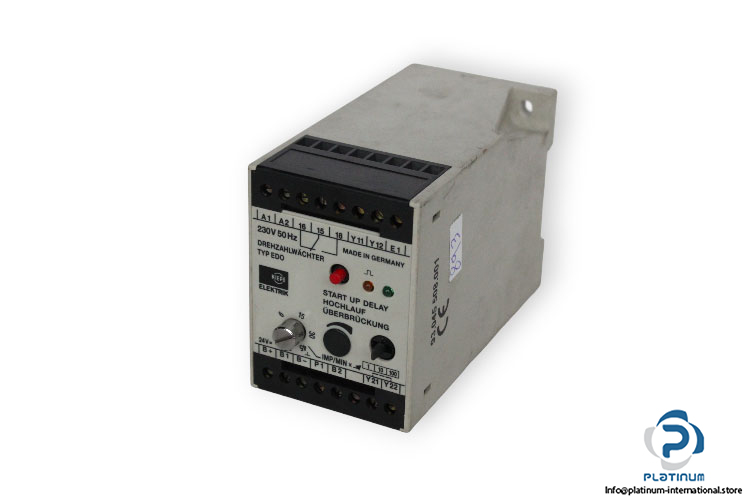

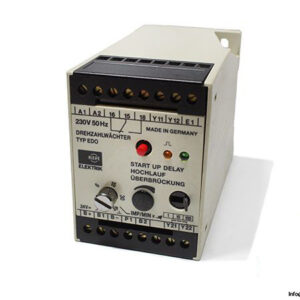

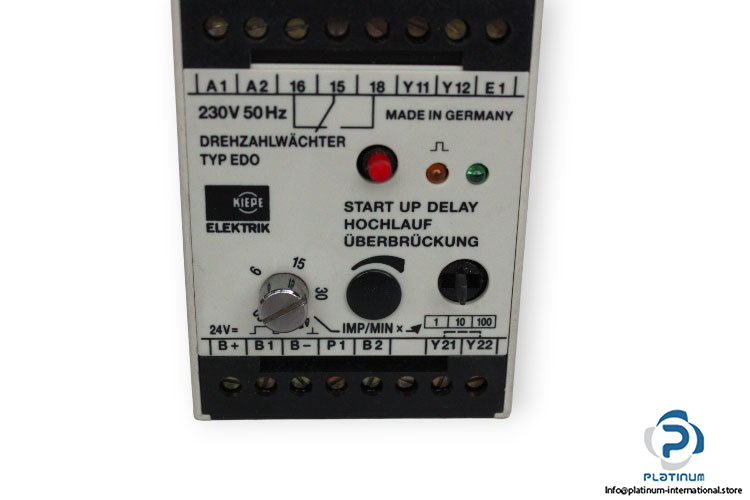

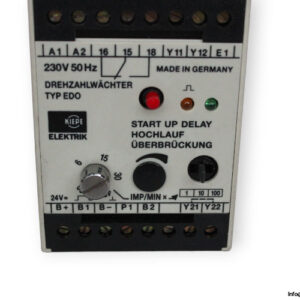

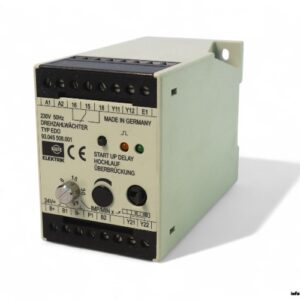

KIEPE ELEKTRIK EDO ROTATIONAL SPEED MONITORING

The Kiepe Elektrik EDO is a high-quality rotational speed monitoring device designed to ensure operational safety and precision in industrial applications. Engineered for reliability, it offers accurate speed detection and control with robust housing for demanding environments. This unit is ideal for conveyor systems, rotating machinery, and automated process control.

Manufacturer: Kiepe Elektrik
Type: Rotational Speed Monitoring
Model: EDO

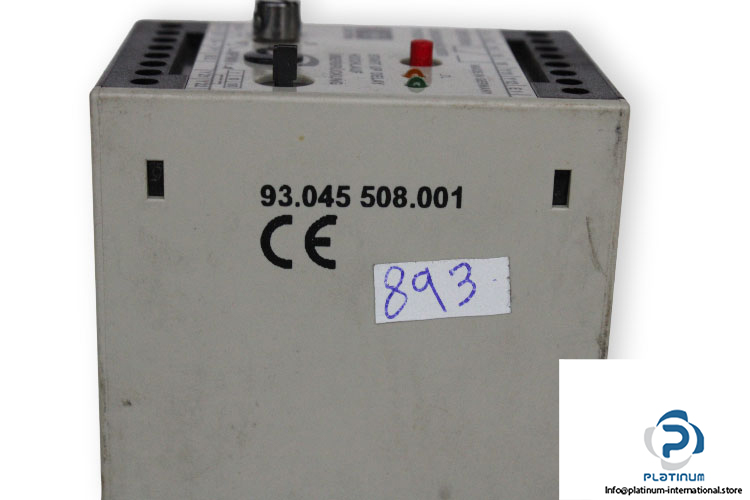

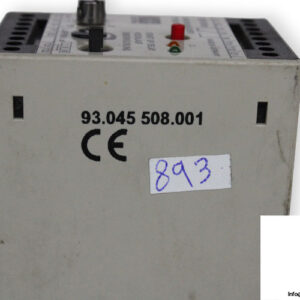

Part No.: 93.045 508.001

Technical Information

• Coil Voltage: 230 V AC
• Frequency: 50 Hz
• Power Consumption: < 3 VA
• Type of Contact: 1 change-over contact (Single pole double through)
• Line Cross Section: max. 2.5 mm²
• Operating Temperature: -25 / +70 °C
• Protection Class Housing/Terminal: IP 30 / IP 20
• Dimensions: 55 x 110 x 75 mm
