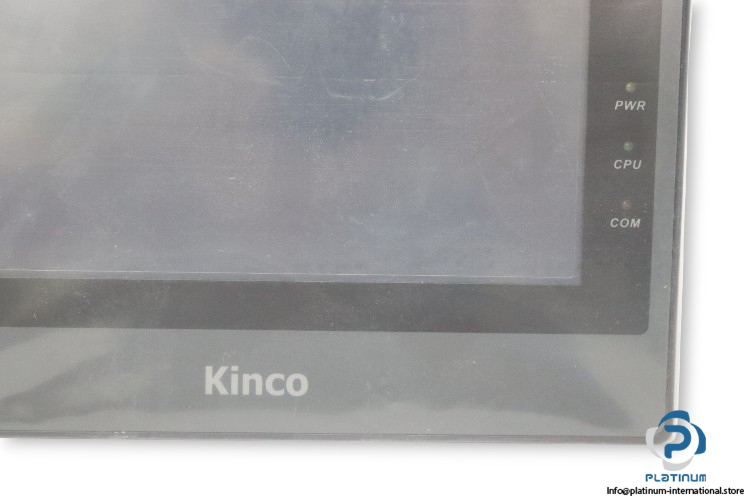

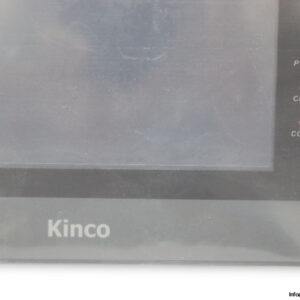

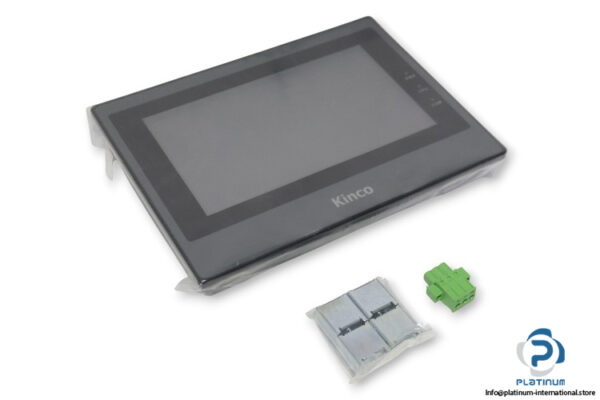

Kinco MT4414TE Human Machine Interface (HMI)

The Kinco MT4414TE Human-Machine Interface (HMI) from the MT4000 series is a high-performance operator panel designed to provide intuitive control and real-time monitoring for industrial automation systems. With a vivid 7-inch TFT display and advanced communication options, it ensures precise visualization and reliable connectivity in demanding environments.

Manufacturer: Kinco
Type: Human-Machine Interface HMI
Model: MT4414TE

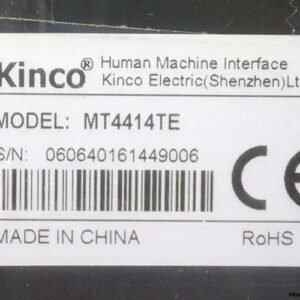

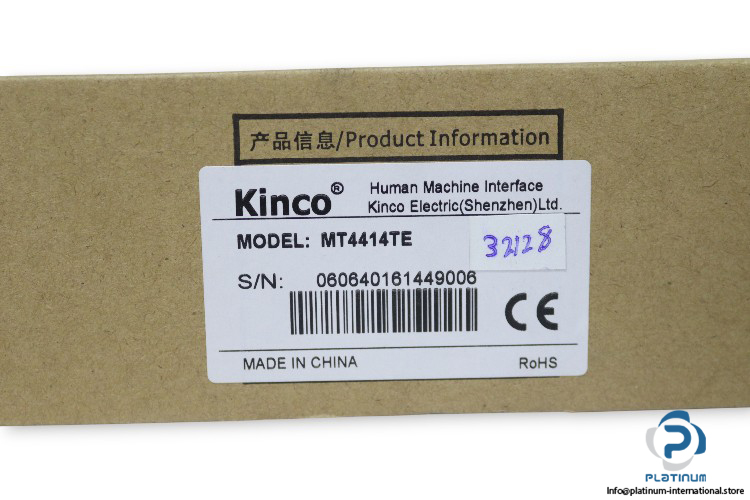

Ref. No.: 060640161449006

Technical Information

• Series: MT4000
• Display Design: 16:9 TFT
• Screen Diagonal: 7 In
• Resolution: 800 x 480 Pixels
• Colors No.: 65,536 Colors
• Backlight: LED
• Brightness: 300 cd/m²
• Supply Voltage: 24 V DC
• Rated Power: 4 W
• Touch Panel: 4-Wire Precision Resistance Network
• Memory: 128M FLASH, 64M SDRAM
• Expandable Memory: 1 USB Host
• Recipe Memory & RTC: 512 KB & RTC
• Ethernet: 10/100 Base-T
• Processor: 32-bit RISC CPU 800 MHz
• Program Download: USB Slave / Serial Port / Ethernet Port

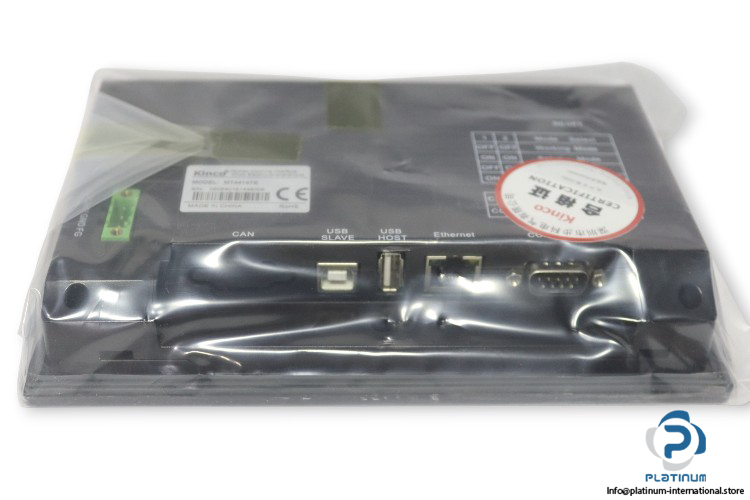

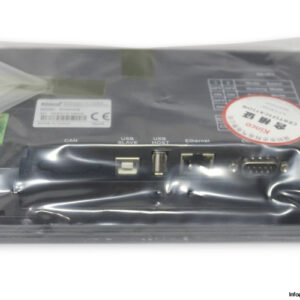

• COM Port: COM0: RS232/RS485-2/RS485-4, COM2: RS232
• Protection Class: IP65
• Ambient Temperature: 0 / 50 °C
• Dimensions: 204 x 150 x 37 mm
