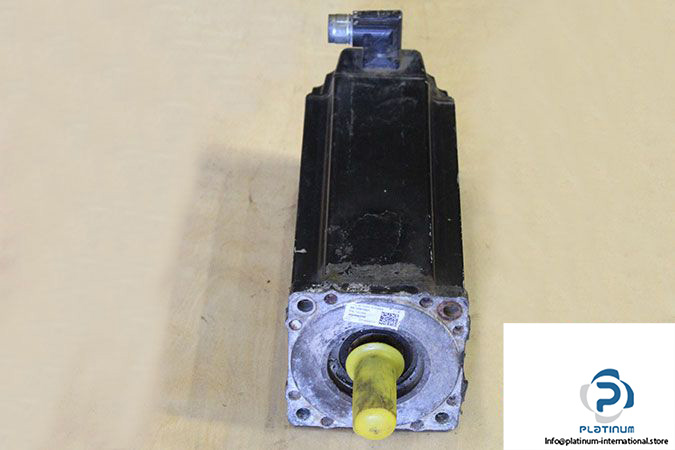

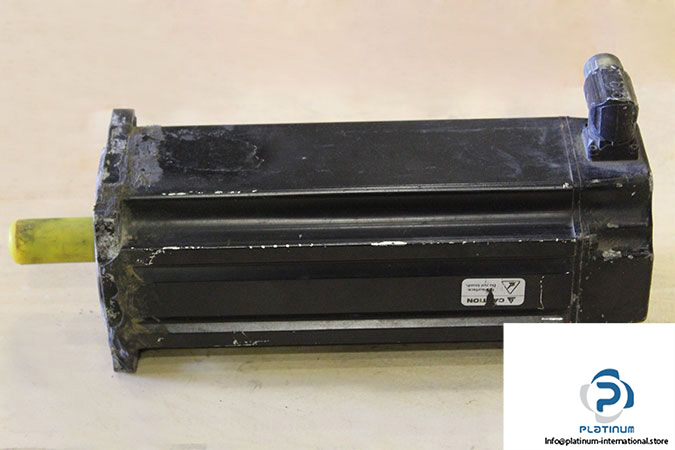

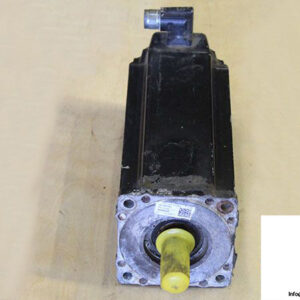

ALLEN-BRADLEY VPL-B1306C-PJ14AA AC SERVO MOTOR
The Allen-Bradley VPL-B1306C-PJ14AA is a high-performance AC servo motor from the KINETIX family, engineered for precision motion applications. With its compact 130 mm frame, robust torque output, and advanced encoder feedback, it offers reliable performance in demanding industrial environments.
Manufacturer: Allen-Bradley
Type: AC Servo Motor
Family: KINETIX
Model: VPL-B1306C-PJ14AA
Ref No.: PN-142486

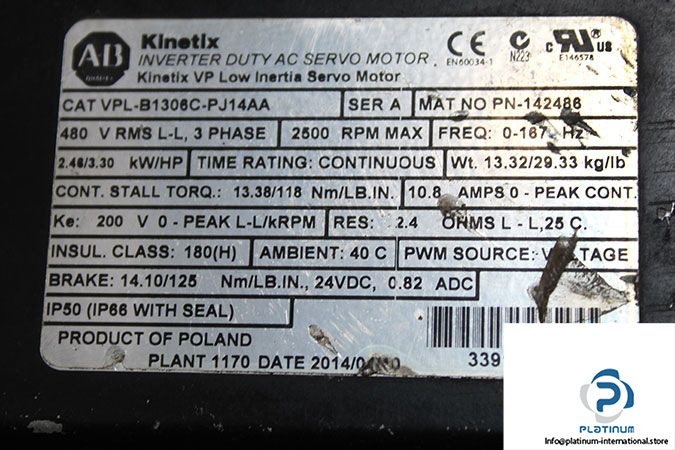

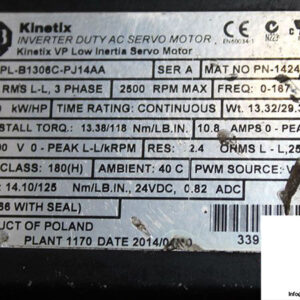

Technical Information
- Frame Size: 130 mm
- Magnet Stack Length: 6
- Voltage Class: 480 V
- Rated Power: 2.46 kW
- Rated Speed: 2500 rpm
- Max. Speed: 2500 rpm
- Continuous Stall Torque: 13.38 Nm
- Peak Stall Torque: 34.62 Nm
- Frequency: 0“167 Hz
- Temperature: 40 °C
- Voltage Brake: 24 V DC

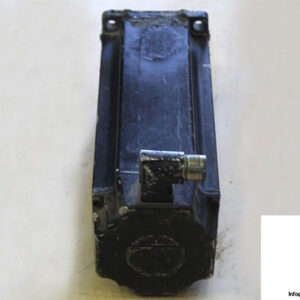

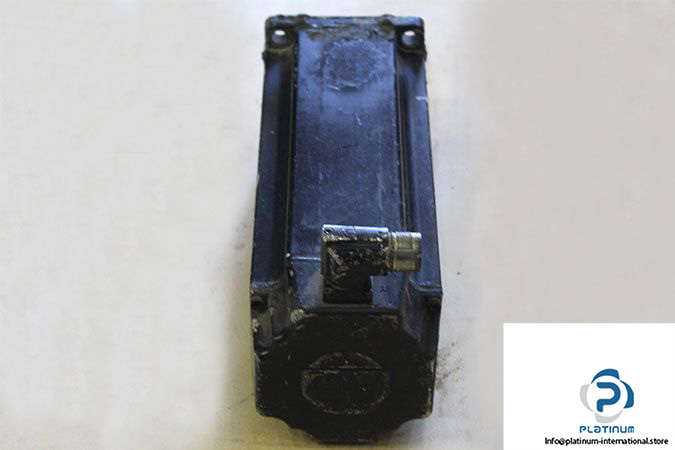

- Connector: Single Speedtec DIN Connector, Right Angle, 325° Rotatable
- Feedback: 18-Bit Absolute Multi-Turn Digital Encoder (Hiperface DSL Protocol)
- Insulation Class: H
- Protection Class: IP50 (IP66 with Seal)
