Manufacturer: KLASCHKA

Type: Sensor

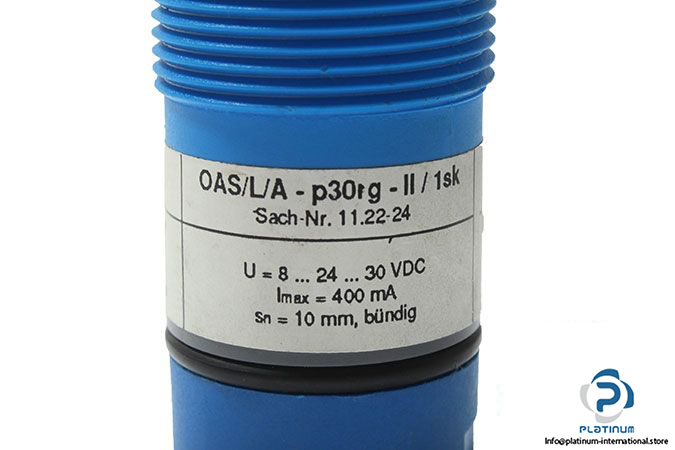

Model: OAS/L/A-P30RG-II/1SK

Part No.: 112224

Sensing Range: 10 mm

Real Sensing Range: 10 ± 10 % mm

Operating Voltage: 8 … 30 V DC

Operating Current: 400 mA

Switching Output: Normally Open

Electrical Design: PNP

Mounting: Non-Flush Mountable

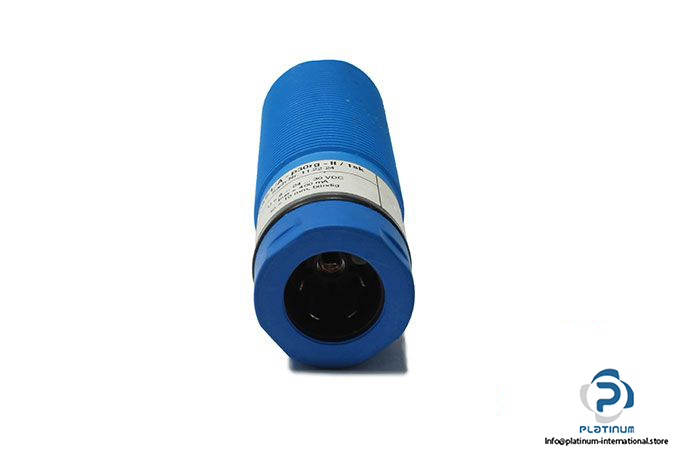

Diameter of Connection: 16.5 mm Connector

Housing: Threaded type

Protection Class: II

Enclosure Rating: IP67

Diameter, Housing Length: 30, 92 mm

Ambient Temperature: -25 … 80 °C

Material: PBT

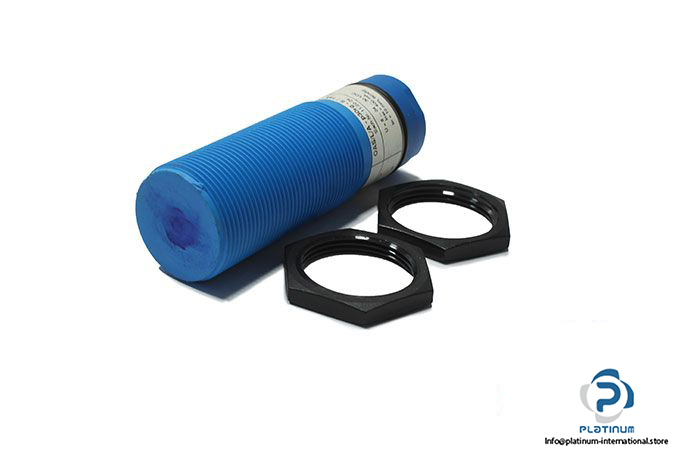

Supplied Accessories: 2 lock nuts

Weight: 0.08 kg
