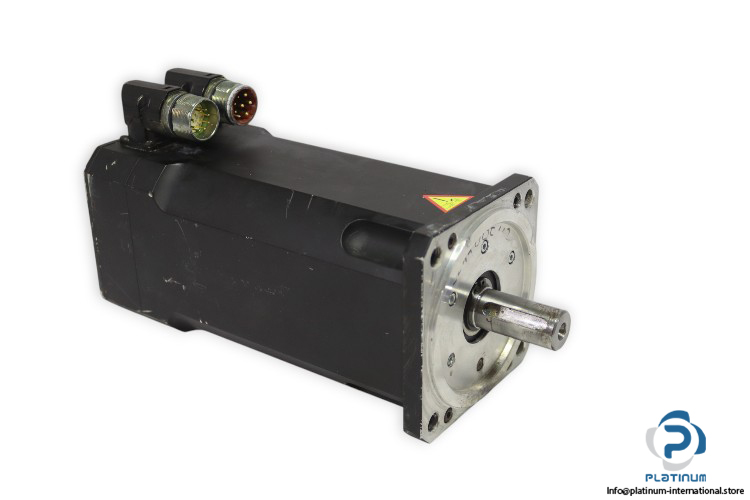

Kollmorgen DBL4-0530-30-Y-560 S-B BP Servo Motor
The Kollmorgen DBL4-0530-30-Y-560 S-B BP is a high-performance servo motor engineered for precision motion control applications. Featuring a resolver feedback system, integrated brake, and IP64 protection, it ensures reliable operation even in demanding industrial environments.

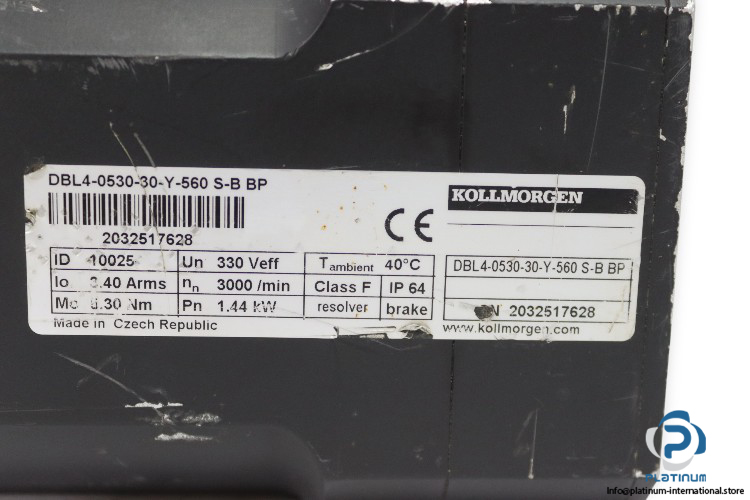

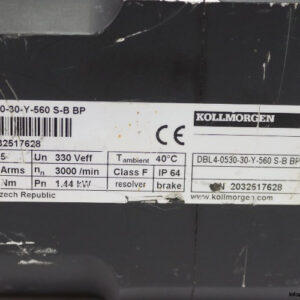

Manufacturer: Kollmorgen
Type: Servo Motor
Model: DBL4-0530-30-Y-560 S-B BP
Part No.: 2032517628
ID No.: 10025
Technical information
- Rated Voltage (Un): 330 Veff
- Rated Current (Io): 3.40 Arms
- Rated Speed (nN): 3000 min»¹ (rpm)
- Rated Power (Pn): 1.44 kW
- Rated Torque (Mn): 5.30 Nm
- Ambient Temperature: 40 °C
- Insulation Class: F
- Protection Class: IP64
- Feedback: Resolver
- Equipped With: Brake
