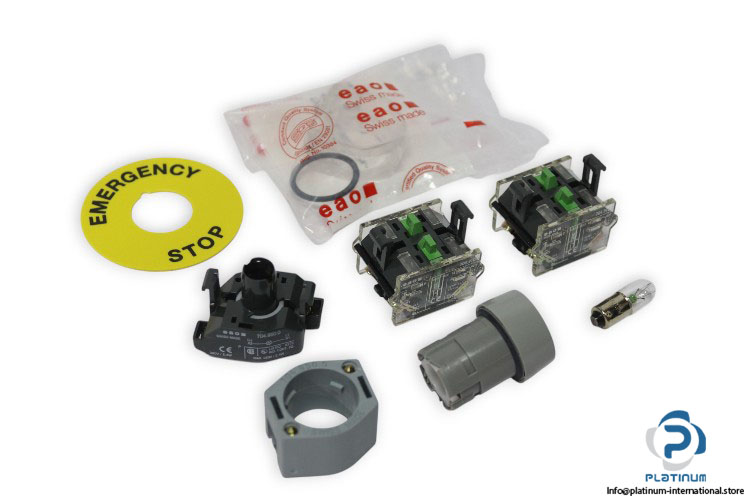

KONGSBERG 3500722 EMERGENCY STOP BUTTON WITH LAMP BLOCK
The Kongsberg 3500722 Emergency Stop Button with Lamp Block is a robust safety control device designed for industrial applications. Built with high-quality components from the EAO 704 Series, it provides reliable emergency shutdown functionality with clear visual indication.
Manufacturer: Kongsberg
Type: Emergency Stop Button with Lamp Block

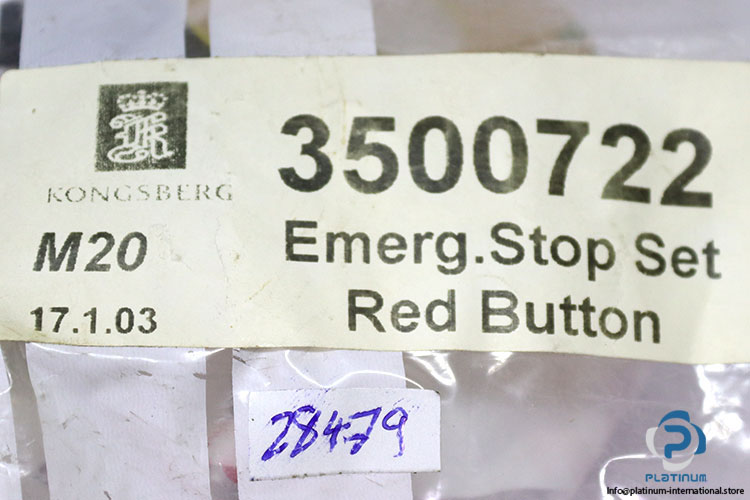

Model: 3500722
Series: C-series
Part No.: 17.1.03
Technical Information
- Thread Size: M20

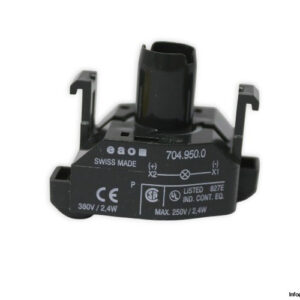

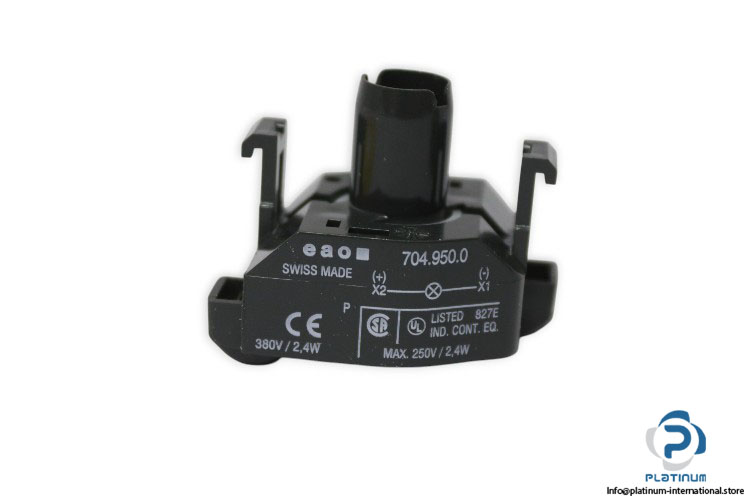

- Contains: EAO 704.950.0 Lamp Block
- Maximum Conductor Cross-Section: 2.5 mm² (or 2 mm × 2.5 mm²)
- Tightening Torque: 0.5 Nm
- Material: Plastic, panel mounting with EAO 704 Series
- Positions: 2

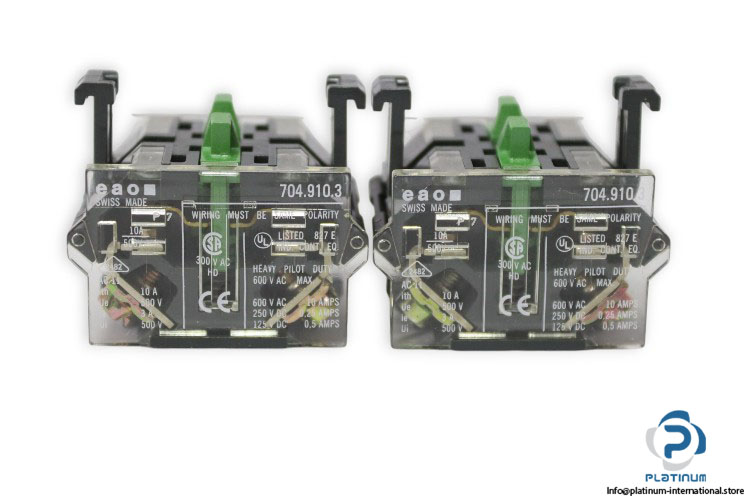

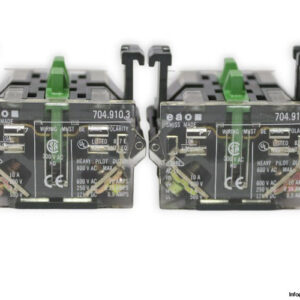

- Switching Element: EAO 704.910.3
- Configuration: Double-pole, 2 normally open (2 NO) contacts (DPST-NO)
- Switching Action: Slow-make (gradual engagement for controlled operation)
- Terminals: Screw-type, secure wiring connections
