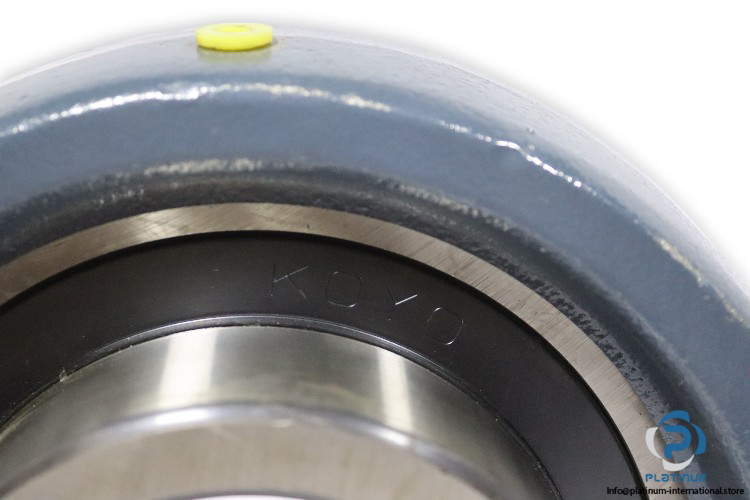

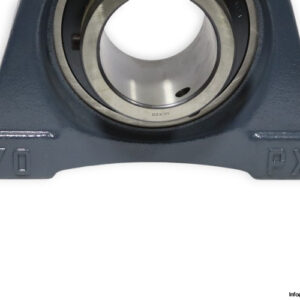

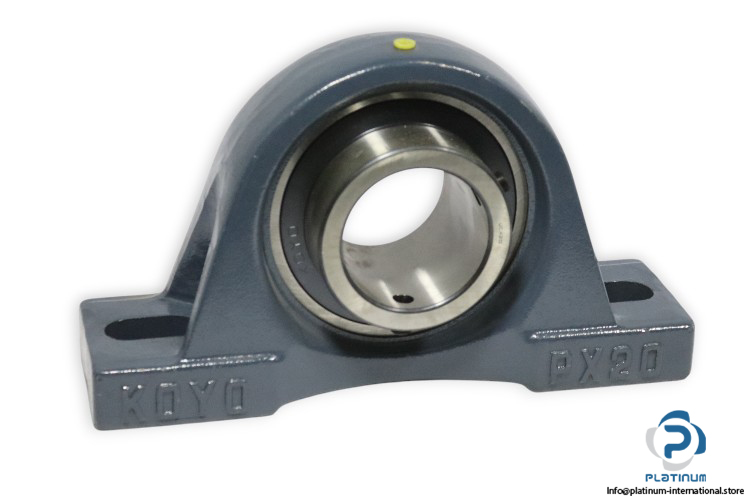

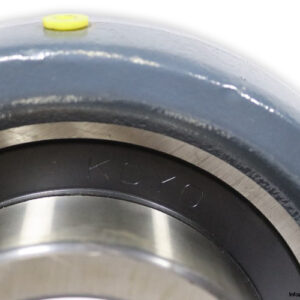

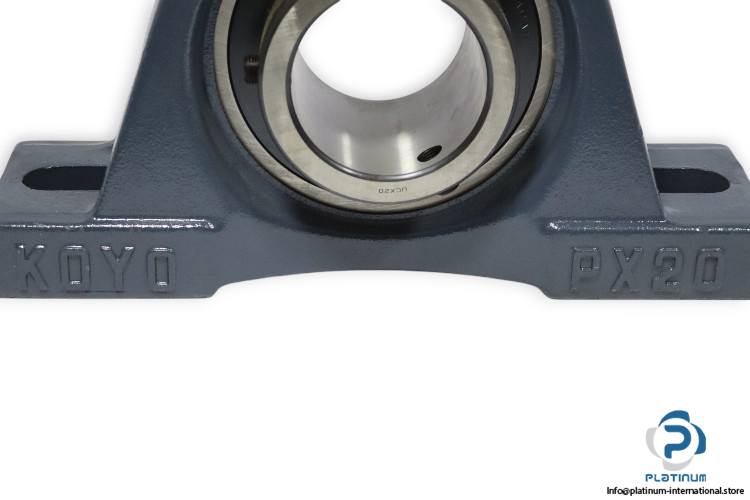

Koyo Pillow Block Ball Bearing Unit – UCPX20
The Koyo UCPX20 Pillow Block Ball Bearing Unit is a reliable and robust solution for supporting rotating shafts with high load capacities. Designed with precision and durability, it ensures smooth operation in industrial applications. Below are the key specifications:
- Manufacturer: Koyo
- Type: Pillow Block Ball Bearing Unit
- Model: UCPX20

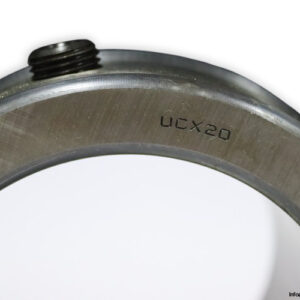

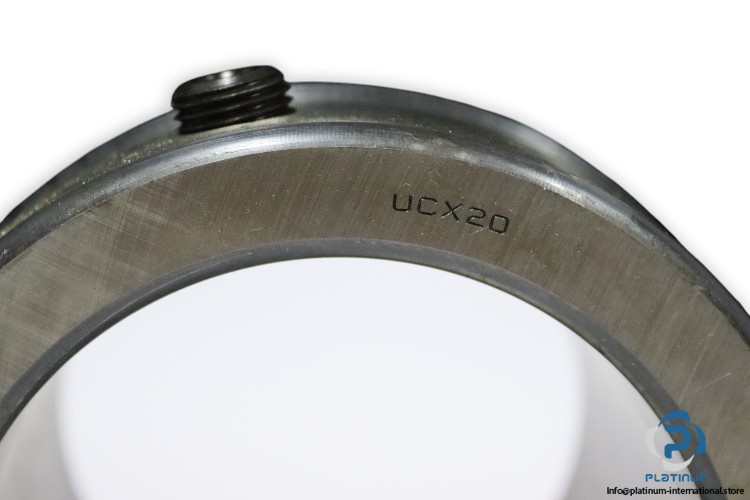

- Bearing No.: UCX20
- Housing No.: PX20

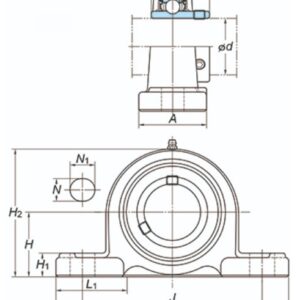

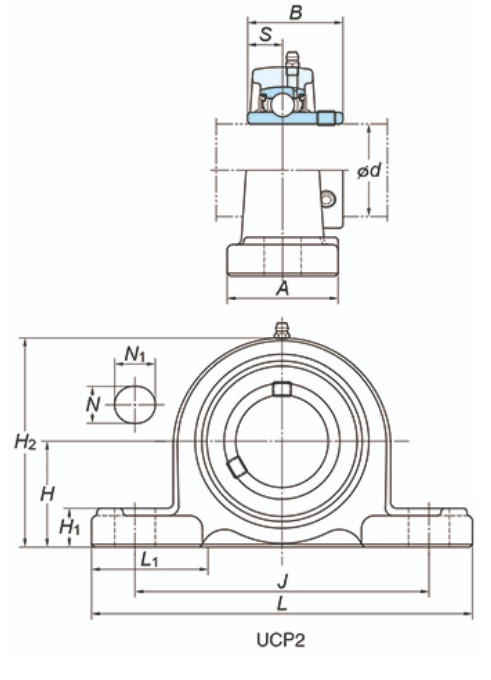

- Bore Diameter (d): 100 mm
- Overall Length (L): 432 mm
- Overall Height (H): 127 mm
- Width of Inner Ring (B): 117.5 mm
- Distance Between Attachment Bolts (J): 337 mm
- Diameter of Attachment Bolt Hole (N): 33 mm
- Basic Load Rating:
- Dynamic (C): 133 kN
- Static (C‚): 105 kN
- Fatigue Load: 3.91 kN
- Bolt Size: M27
