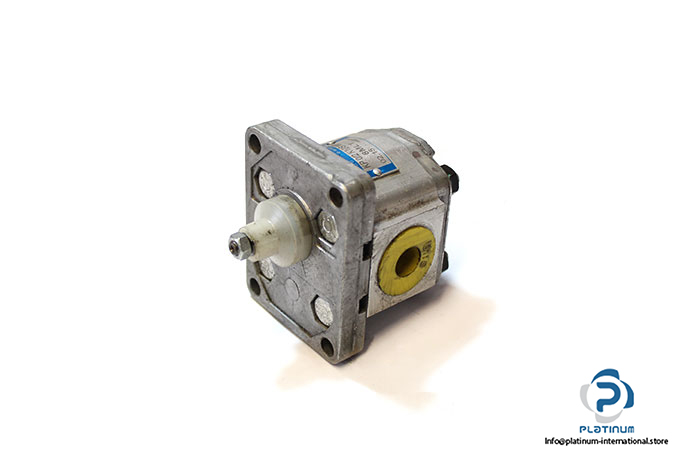

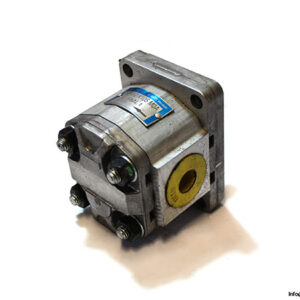

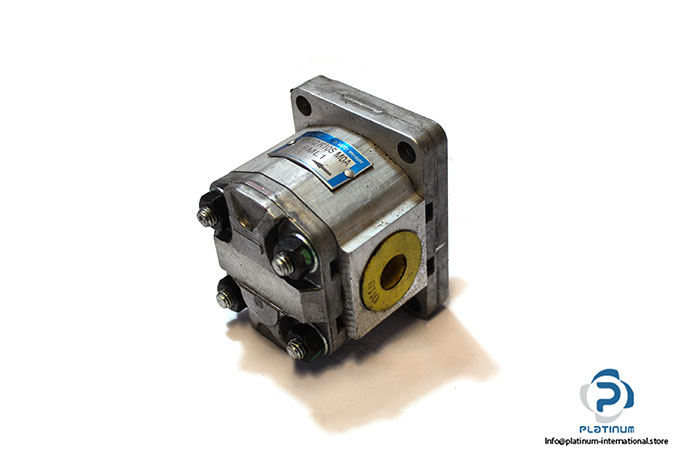

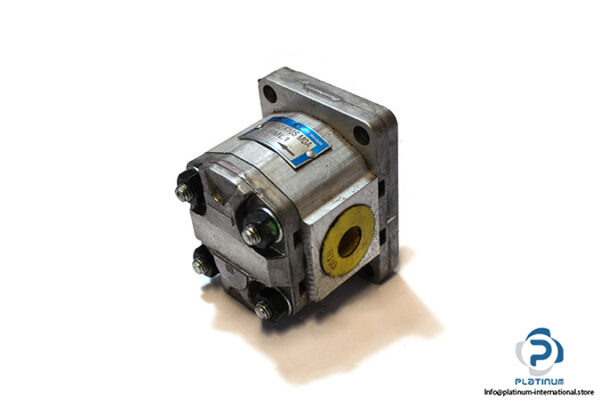

Manufacturer: KRACHT

Type: High Pressure Gear Pump

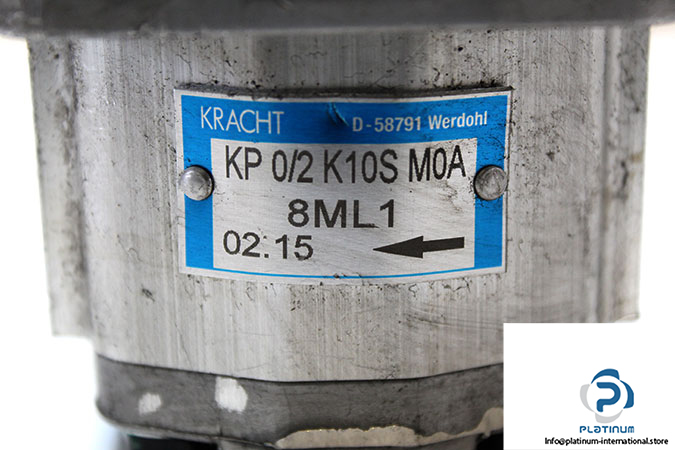

Model: KP0/2K10SM0A8ML1

Size: 0

Type Of Gearing: Shaft And Pin Wheel Made Of Case-Hardened Steel

Ambient Temperature: -20 ^oC ….60 ^oC

Displacement: 2 cm³

Output flow at 1495 rpm: 3 l/min

Operating Pressure Inlet Port: – 0.3 bar (vacuum)

Operating Pressure Short Time: 2.5 bar

Direction of Rotation: Clockwise

Materials: Housing Aluminum

Mounting: 4 Bolt Rectangular Flange

Fluid temperature: 85 ^oC

Shaft End: Taper 1:8

Range Speed: 700-4000 rpm

Viscosity: 10….1400 mm²/s
