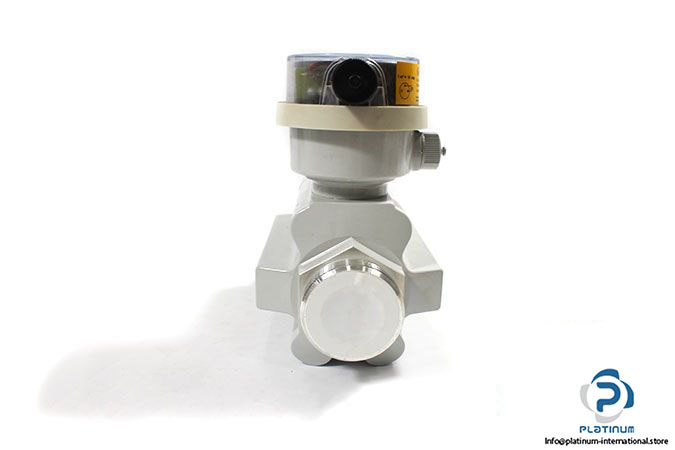

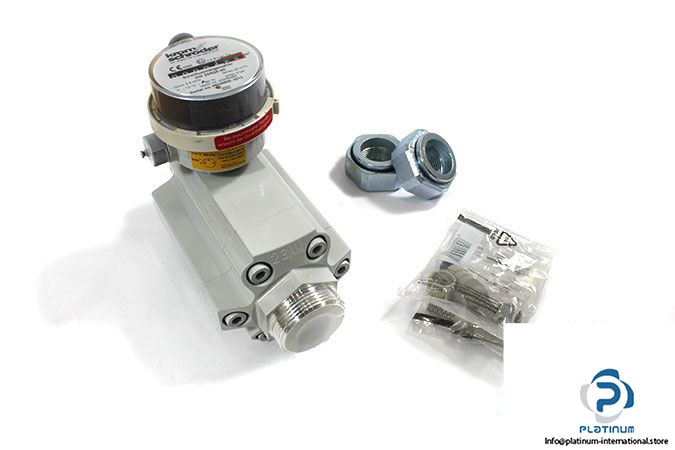

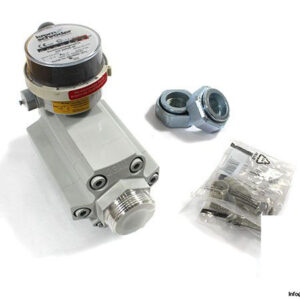

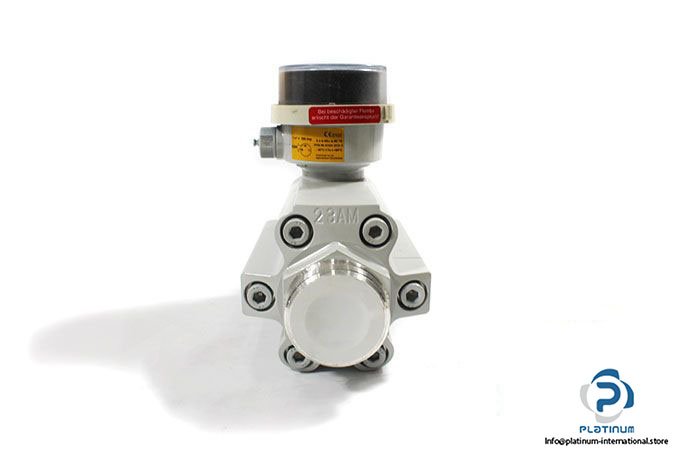

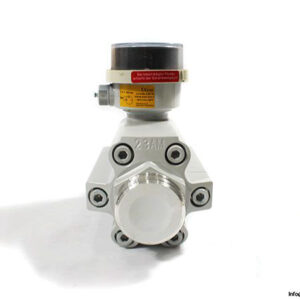

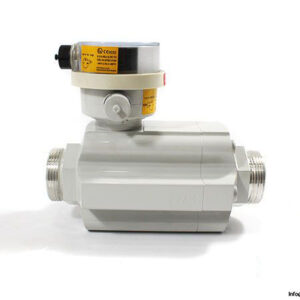

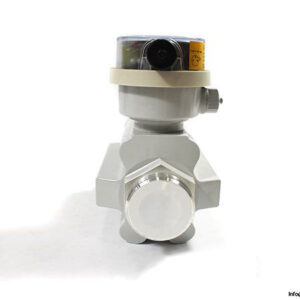

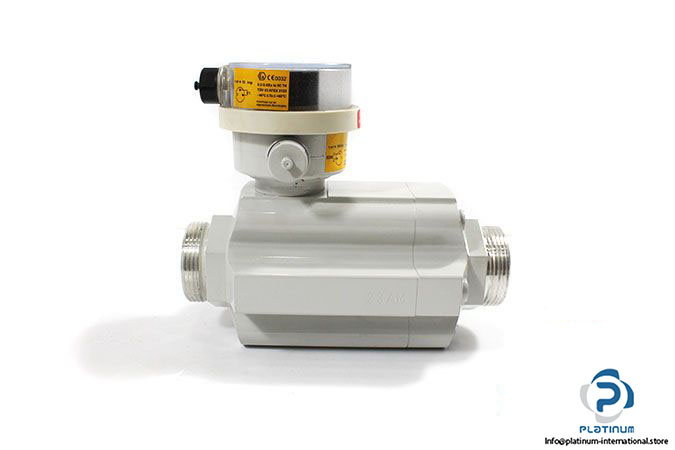

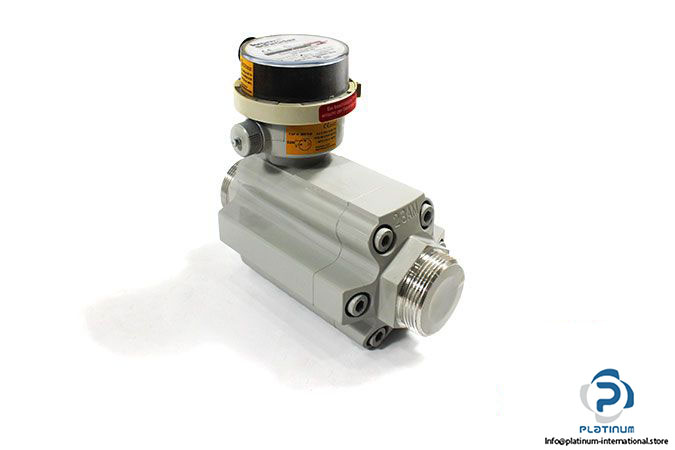

Kromschroder DM 25R25-40 Flow Meter
The Kromschroder DM 25R25-40 is a high-accuracy industrial flow meter designed for reliable consumption measurement in demanding applications. Built with a durable aluminum housing and equipped with standard Cyble target technology, it provides precise readings, long service life, and excellent performance under industrial conditions.

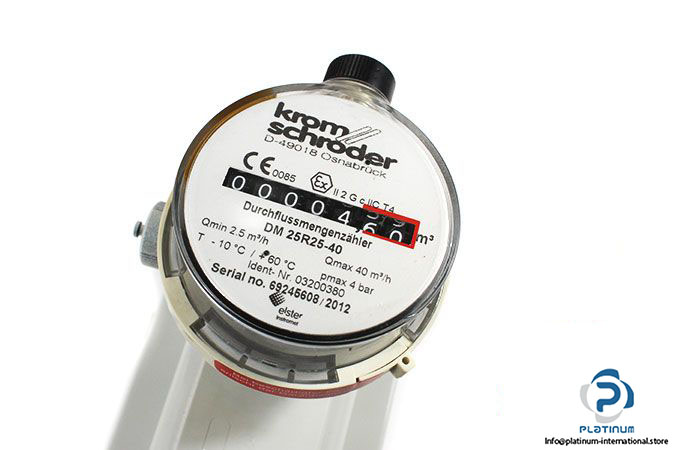

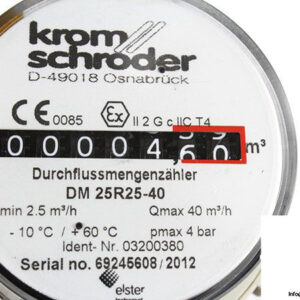

Manufacturer: Kromschroder
Type: Flow Meter
Model: DM 25R25-40

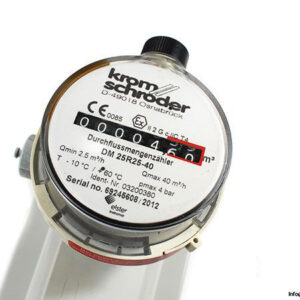

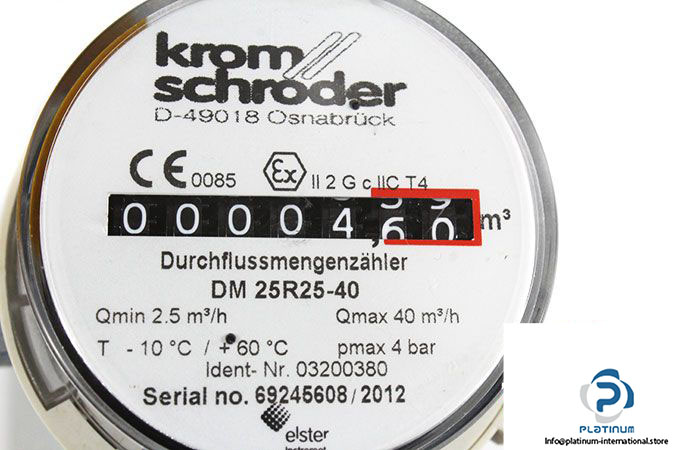

Ident. No.: 03200380
Serial No.: 69245608
Technical Information
- Features:
- High accuracy budget meter
- Flange design
- Equipped as standard with the Cyble target
- Application:
- Typically used for the internal billing of consumption in industrial installation
- Laboratories and test rigs
- Housing Material: Aluminum
- Flow Meter Type: DM
- Operating Flow Rate: 2.5 m³/h / 40 m³/h
- Output Pulse Value (E200): 500 pul/m¹
- Output Pulse Value (E1): 10 pul/m³
- Max. Pressure: 4 bar
- Connection: RP 1

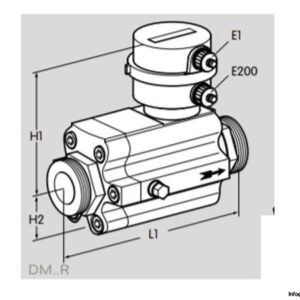

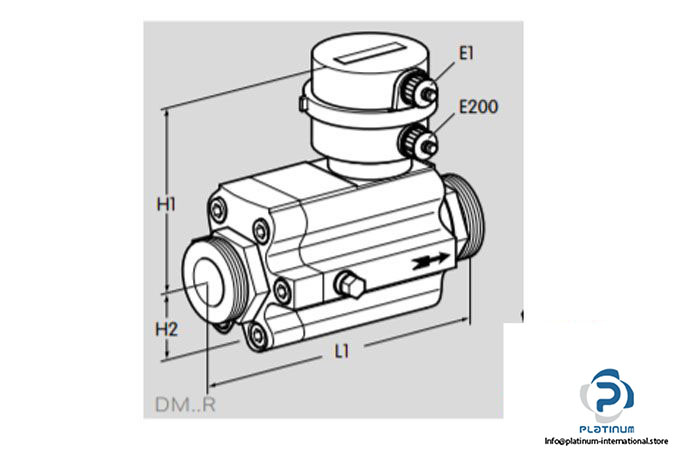

- Dimensions:
- Length (L1): 185 mm
- Height (H1): 115 mm
- Height (H2): 44 mm
- Nominal Diameter (DN): 25 mm
- Nominal Pipe Size (NPS): G1
- Protection Proof: EX II 2 G c IIC T4
- Temperature: -10 to 60 °C
Recommendation: This model is highly recommended for industries requiring precise flow measurement and dependable consumption tracking. Its EX-certified protection, wide flow range, and Cyble pulse output make it an ideal choice for upgrading old flow meters, integrating with digital monitoring systems, and ensuring reliable long-term performance in industrial plants, test benches, and laboratory setups.
