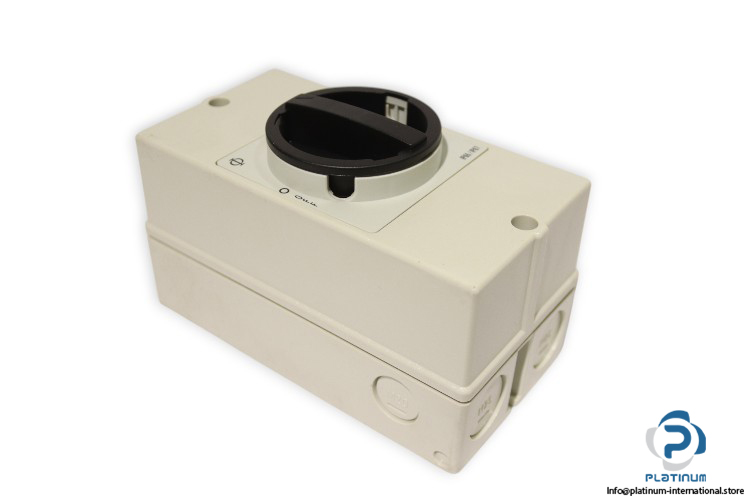

Kraus & Naimer KG32 T103/40KL11V Main Switch

The Kraus & Naimer KG32 T103/40KL11V is a heavy-duty main switch from the KG32 series, designed for reliable isolation and protection in industrial electrical systems. With rigid silver contacts, high current capacity, and IP66/67 protection, it ensures dependable performance under demanding conditions.

Manufacturer: Kraus & Naimer
Type: Main Switch
Model: KG32 T103/40KL11V

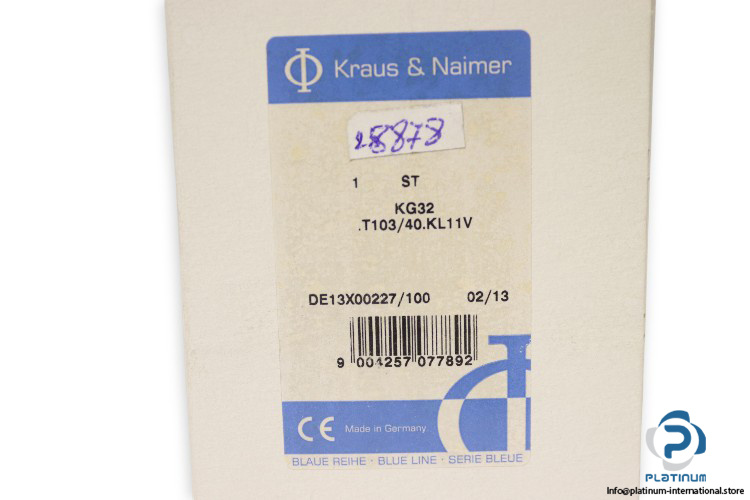

Part No.: DE13X00227/100, 02/13

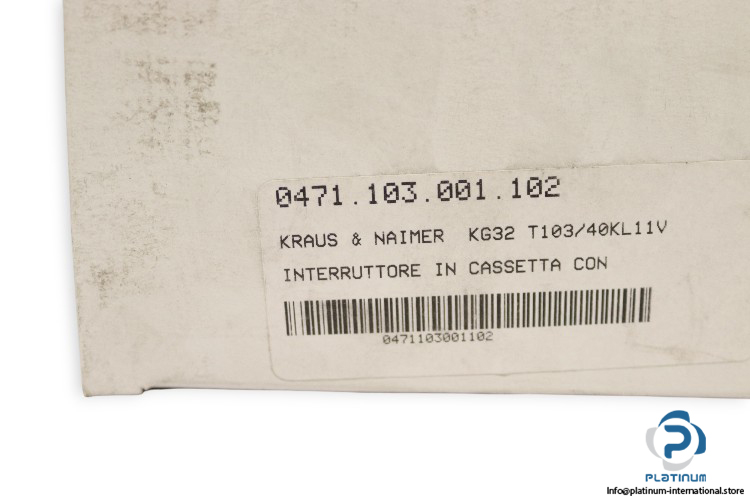

COMAS No.: 0471.103.001.102
Serial No.: 9004257077892
Series: KG32
Type Size: S00

Technical information

• Classification Contact: Rigid contact bridge
• Classification Contact Material: Silver
• Classification Terminal: Screw terminal
• Rated Insulation Voltage (Ui): 690 V @ 50/60 Hz
• Rated Current: 30 A @ 600 V AC
• Voltage Ratings: 220 V / 380 V / 690 V / 240 V

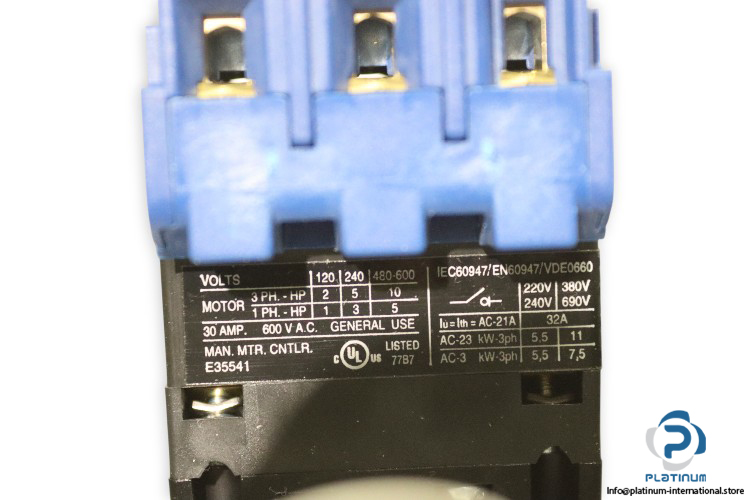

• Motor Ratings:
• 1-Phase: 120 V, 1 HP / 240 V, 3 HP / 480“600 V, 5 HP
• 3-Phase: 120 V, 2 HP / 240 V, 5 HP / 480“600 V, 10 HP
• Thermal Current: 32 A (AC-21A)
• Power: 5.5 / 11 / 7.5 kW

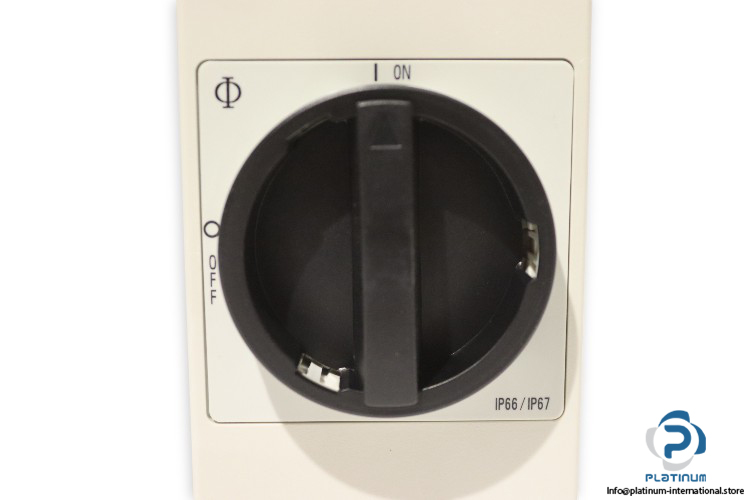

• IP Rate: 66/67
