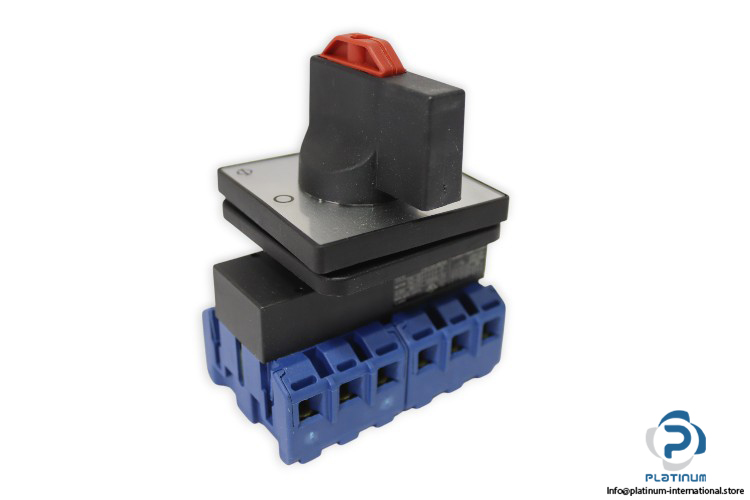

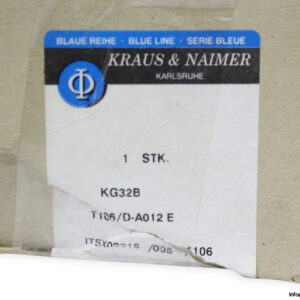

Kraus & Naimer KG32B T106/D-A012 E Rotary Switch

The Kraus & Naimer KG32B T106/D-A012 E rotary switch from the KG 32 series is designed for high-performance switching in industrial electrical systems. Built with rigid silver contacts, screw terminals, and multiple voltage ratings, it ensures safe, durable, and efficient operation across single-phase and three-phase applications.

Manufacturer: Kraus & Naimer
Type: Rotary Switch

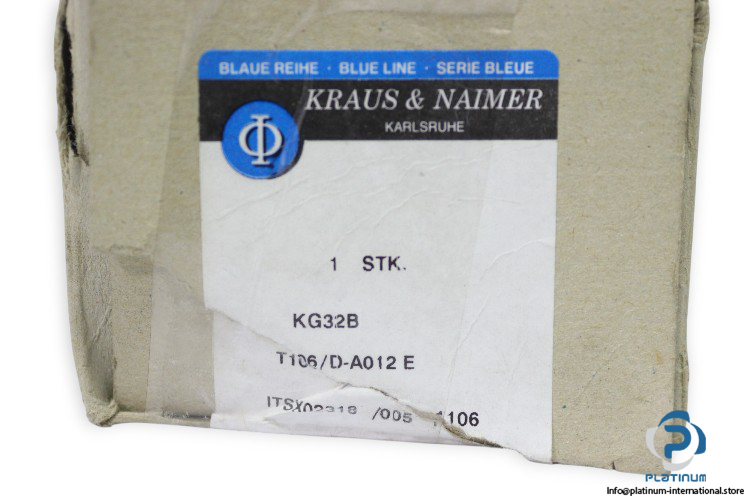

Model: KG32B T106/D-A012 E

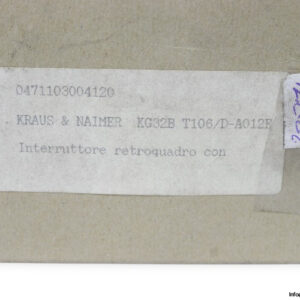

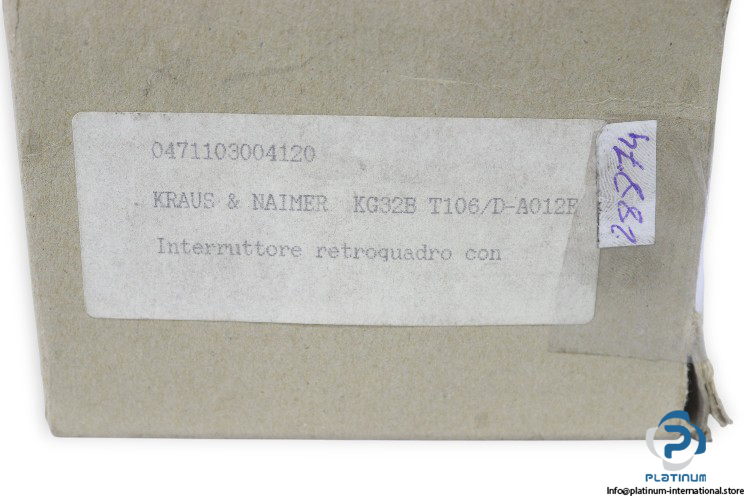

Part No.: 0471103004120

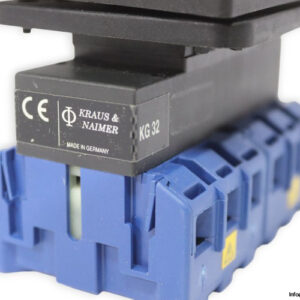

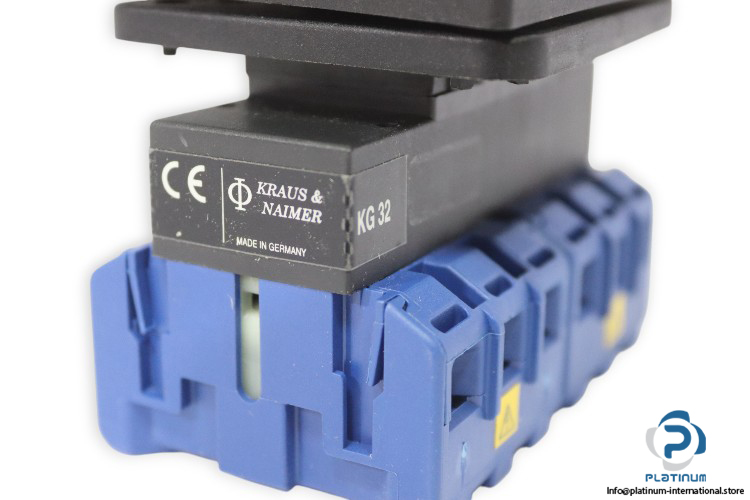

Series: KG 32
Type Size: S1

Technical information

• Classification Contact: Rigid contact bridge
• Classification Contact Material: Silver
• Classification Terminal: Screw terminal
• Rated Insulation Voltage (Ui): 690 V
• Rated Current: 30 A @ 600 V AC
• Voltage Ratings: 220 V / 380 V / 690 V / 240 V

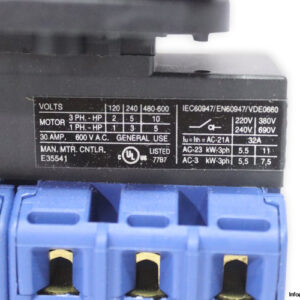

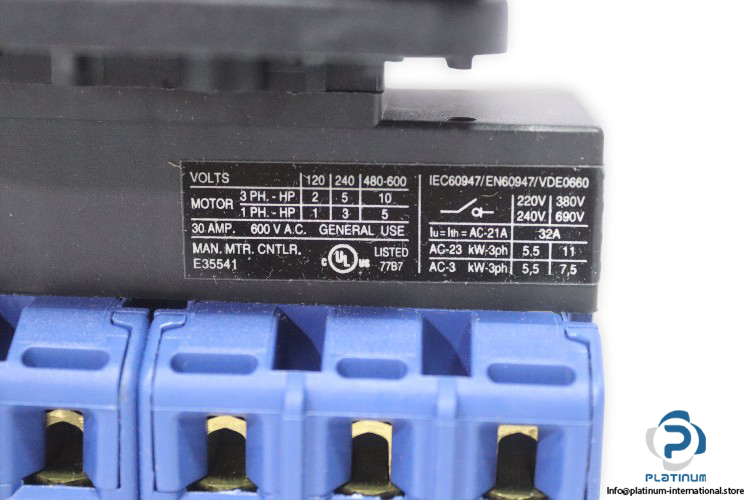

• Motor Ratings:
• 1-Phase: 120 V, 1 HP / 240 V, 3 HP / 480“600 V, 5 HP
• 3-Phase: 120 V, 2 HP / 240 V, 5 HP / 480“600 V, 10 HP
• Thermal Current: 32 A (AC-21A)
• Power: 5.5 / 11 / 7.5 kW
