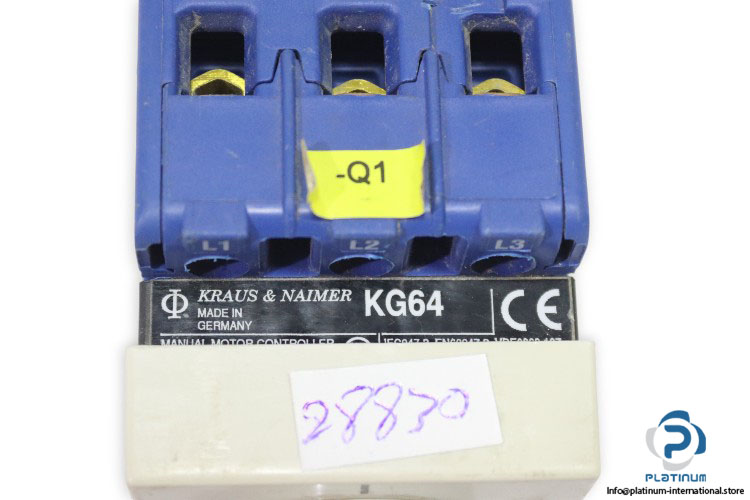

KRAUS&NAIMER KG64 Main Switch

The KRAUS&NAIMER KG64 is a robust main switch designed for reliable switching and disconnection in industrial environments. With a compact size and durable construction, it provides high performance and safety under demanding conditions.

Manufacturer: KRAUS&NAIMER
Type: Main Switch
Model: KG64

Technical Information

• Size: S0
• Function: Switch / Switch Disconnector
• Rated Insulation Voltage: 690 V AC/DC
• Rated Thermal Current: 63 A
• Rated Operational Power AC-3:
  • 220 – 240 V: 11 kW
  • 380 – 440 V: 18.50 kW
  • 500 – 500 V: 22 kW
  • 660 – 690 V: 15 kW
• Rated Impulse Voltage Uimp: 6 kV
• Poles No.: 3-Pole
• Protection Class: IP66
• Ambient Temperature: 0 / 40 °C
• Dimensions: 64 x 64 mm
