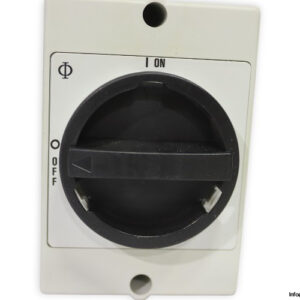

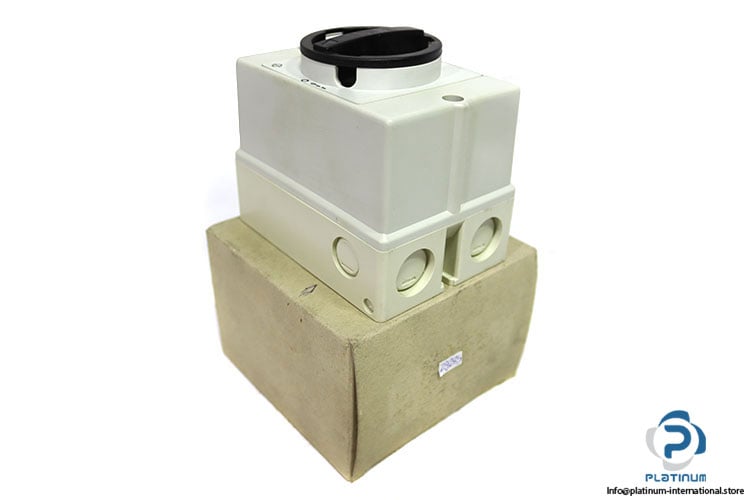

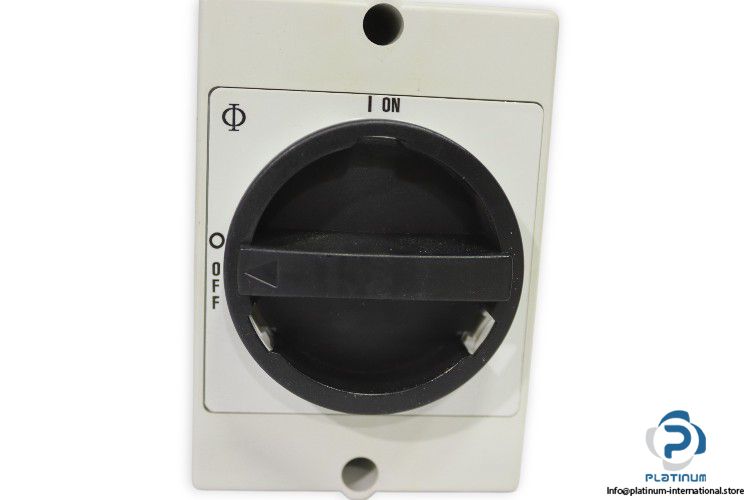

Kraus & Naimer KG10 T103/40 KS51V Main Switch Disconnector
The Kraus & Naimer KG10 T103/40 KS51V is a robust main switch disconnector engineered for safe and reliable operation in industrial environments. With high protection class and secure interlocking, it ensures dependable performance in demanding applications.
Manufacturer: Kraus & Naimer
Type: Main Switch Disconnector

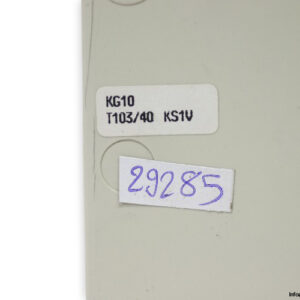

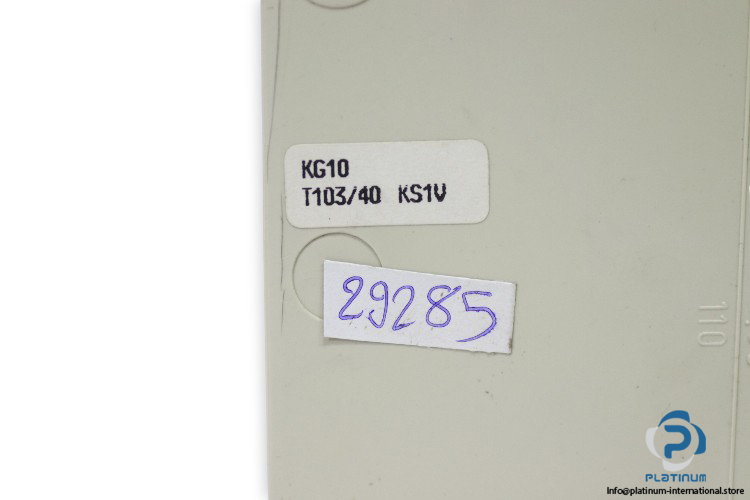

Model: KG10 T103/40 KS51V
Technical Information
- Function: Switch interlocked with lid to prevent opening in ˜ON™ position
- Rated Operational Voltage: 400 V AC
- Rated Operational Current: 40 A
- Frequency: 50 / 60 Hz
- Poles No.: 3 Pole
- Contacts: 1 Normally Open (NO) (Early Break) + 1 Normally Closed (NC)
- Protection Class: IP66/67
- Ambient Temperature: -25 / 40 °C
- Dimensions: 120 x 85 x 90 mm
