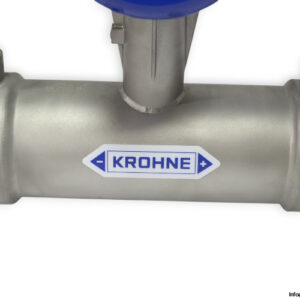

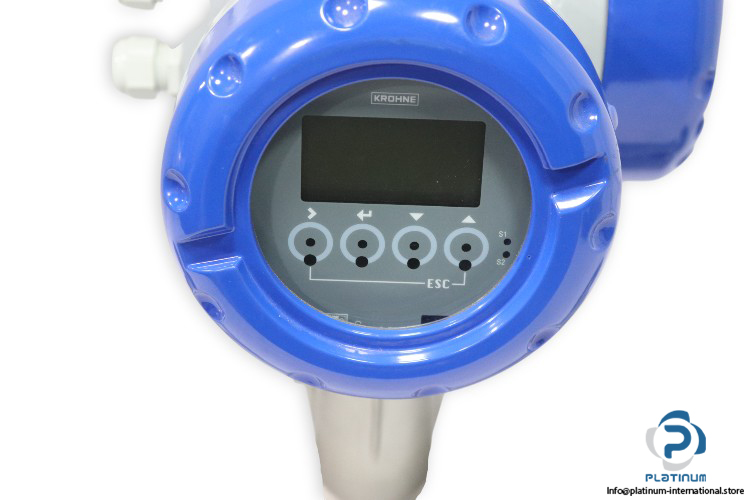

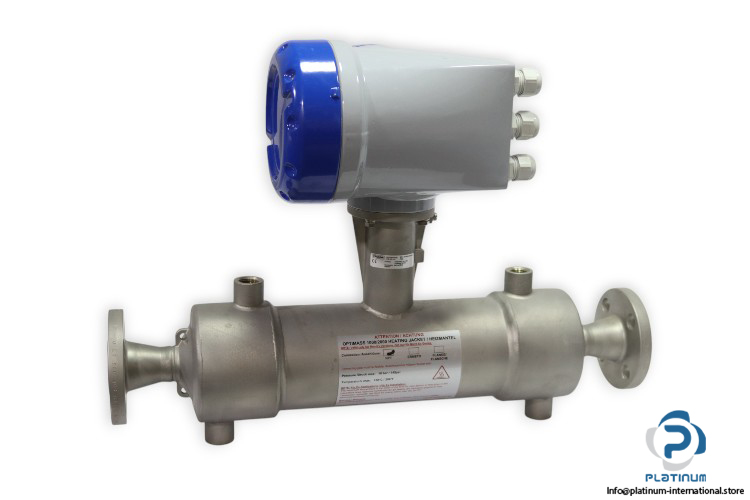

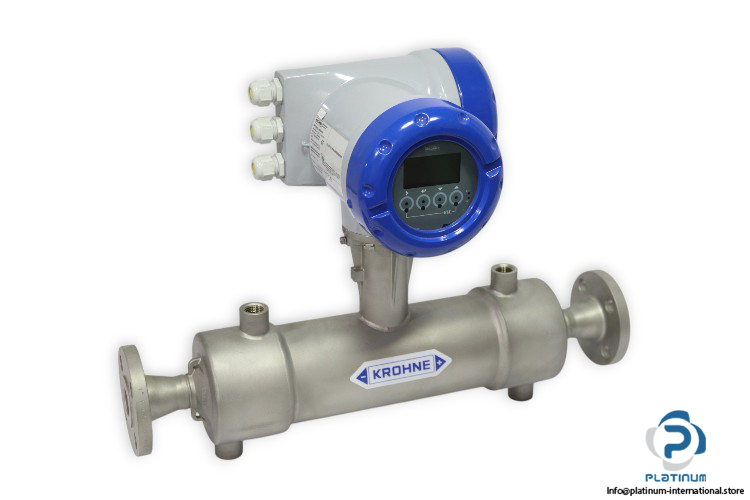

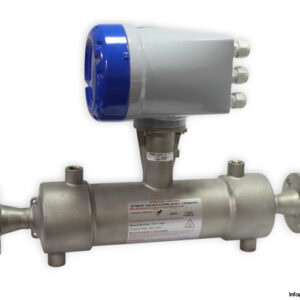

KROHNE OPTIMASS 1400C S15 Sensor for Mass Flow with Heating Jacket
The KROHNE OPTIMASS 1400C S15 is a high-precision mass flow sensor equipped with an integrated heating jacket for stable operation under varying process conditions. Designed with durable stainless-steel materials, it provides accurate flow measurement of liquids such as water across a wide temperature and pressure range. This model combines reliability, precision, and robust construction for demanding industrial environments.

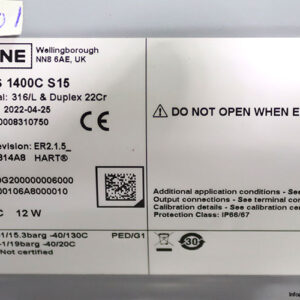

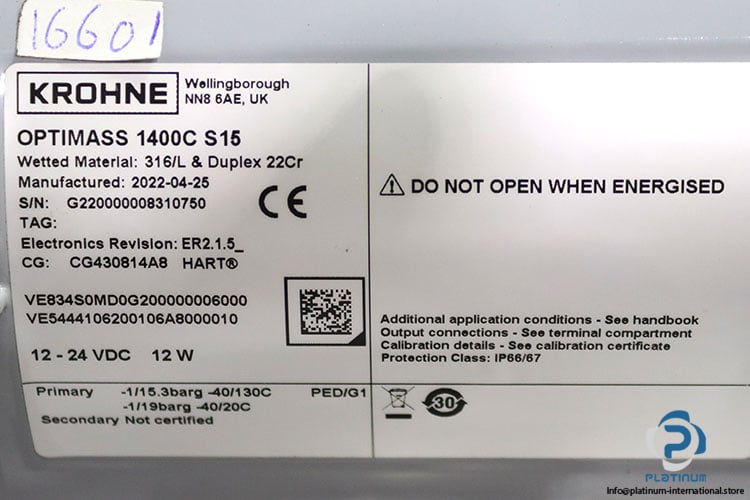

Manufacturer: KROHNE
Type: Sensor for Mass Flow with Heating Jacket
Model: OPTIMASS 1400C S15
Serial Number: G220000008310750
Code: 13218-P, CG430814A8, VE5444106200106A8000010, VE834S0MD0G200000006000
Electronics Revision: ER2.1.5_
Technical Information
- Calibration Fluid: Water
- Maximum Temperature Difference: 80 °C
- Communication Protocol: HART
- Power Supply: 12 to 24 VDC
- Power Consumption: 12 W
- Wetted Materials: 316L Stainless Steel and Duplex 22Cr
- Protection Class: IP66 / IP67
- Connection: NPT

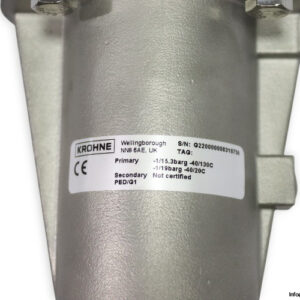

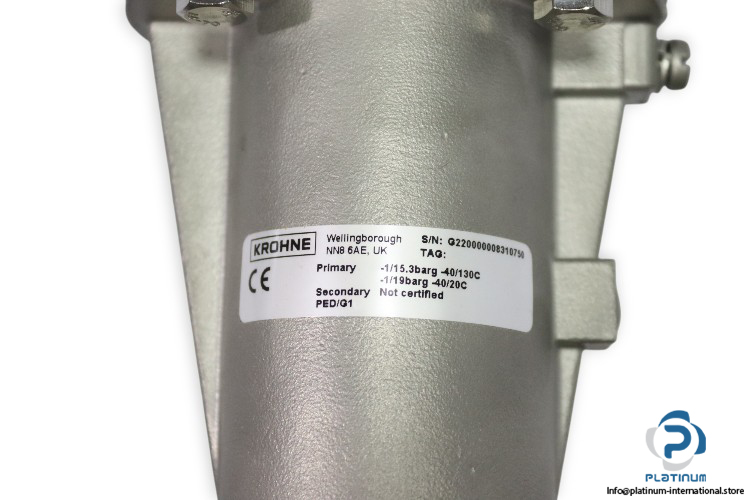

- Primary Pressure Rating: “1 to 15.3 barg (“40 to 130 °C)
- Alternate Pressure Rating: “1 to 19 barg (“40 to 20 °C)
- Operating Temperature Range (Primary): “40 °C to +130 °C
- Calibration Temperature: +20 °C
- Calibration Pressure: 1 to 6 barg
- Flanged Connection Temperature Range: “40 °C to +130 °C
- Hygienic Connection Temperature Range: “40 °C to +130 °C
- Nominal Pressure at 20 °C: “1 to 100 barg (FM / PED)
- Compliance: CRN / ASME B31.3: “1 to 100 barg

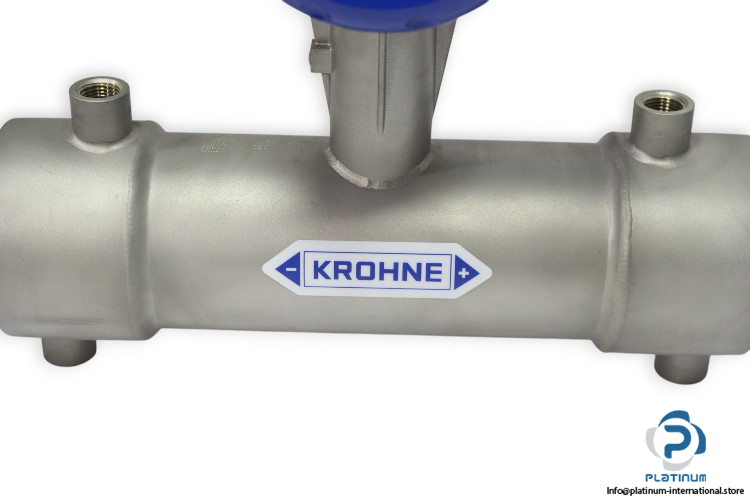

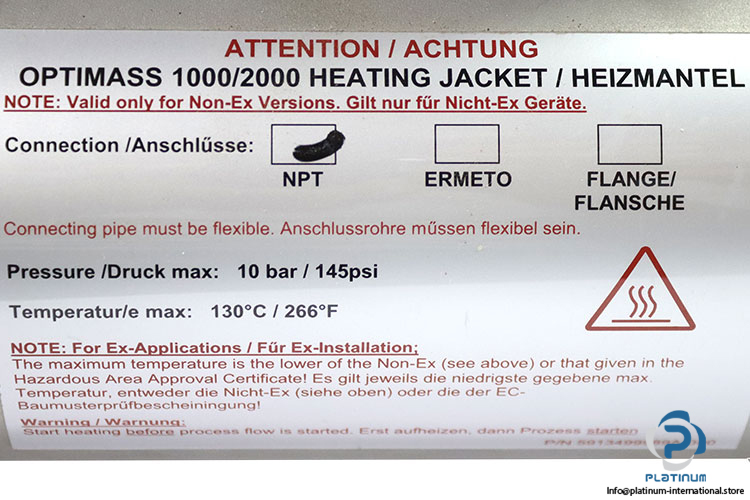

Heating Jacket (Accessory)
- Model: OPTIMASS 1000 / 2000
- Connection Options: NPT
- Maximum Pressure: 10 bar
- Maximum Temperature: 130 °C
