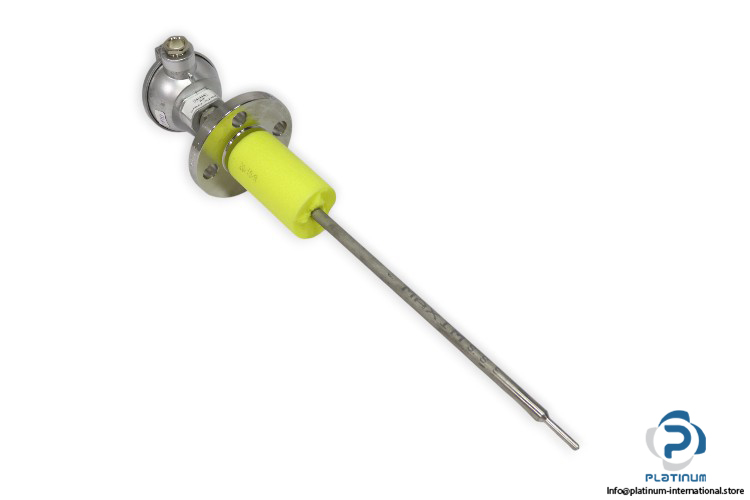

KROHNE INOR OPTITEMP TCA-F23 Temperature Transmitter
The KROHNE INOR OPTITEMP TCA-F23 is a high-quality RTD and thermocouple-based temperature transmitter designed with a DIN-style assembly and durable welded multipart thermowell. It ensures precise measurement of liquids, gases, and solids in industrial environments, offering dependable performance and fast response time.
Manufacturer: KROHNE INOR
Type: Temperature Transmitter (RTD with Transmitter Head) / Thermocouple
Model: OPTITEMP TCA-F23

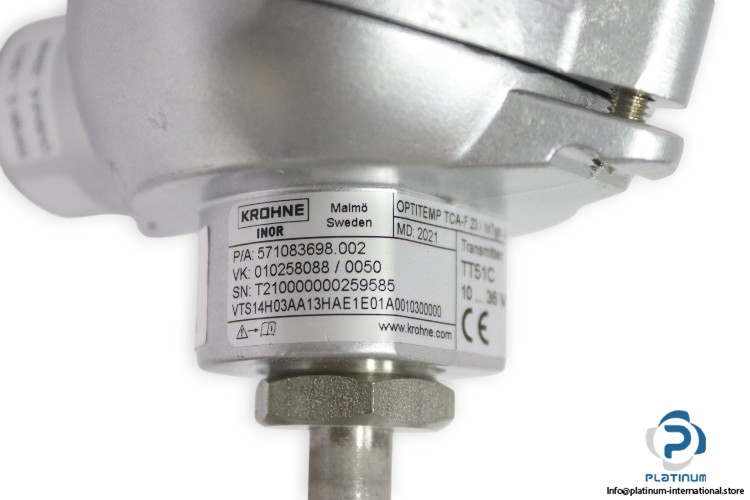

Part No.: 571083698.002
Ref No.: 010258088 / 0050
Serial No.: T210000000259585

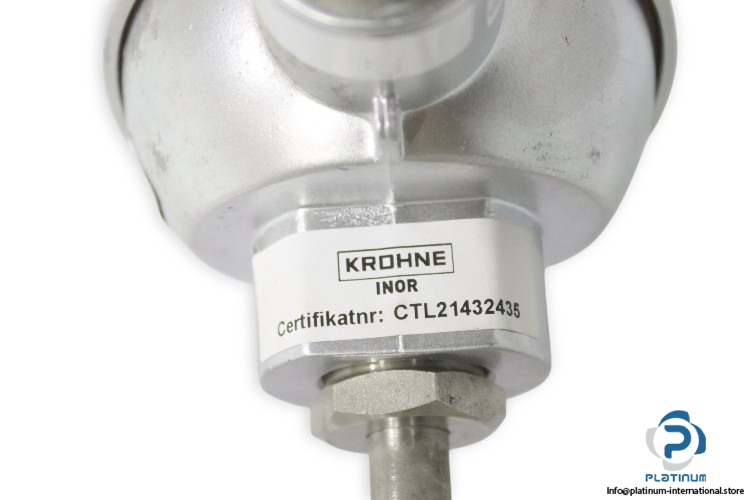

Cert. No.: CTL21432435

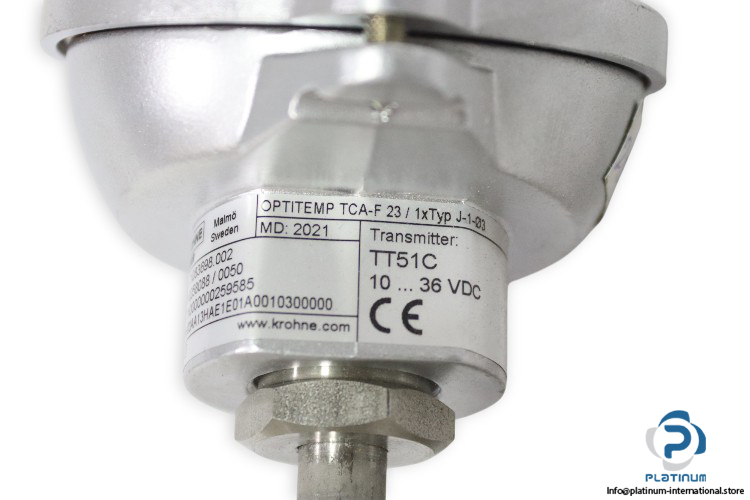

Transmitter Model: TT51C
Code No.: VTS14H03AA13HAE1E01A0010300000
Technical Information
- Input Power: 10“36 VDC
- Family: OPTITEMP
- Flange Connection: DIN-style based on form 2F
- Thermowell Type: Welded multipart with reduced tip
- Measured Media: Liquids, Gases, Solids
- Temperature Assembly Design: DIN-style

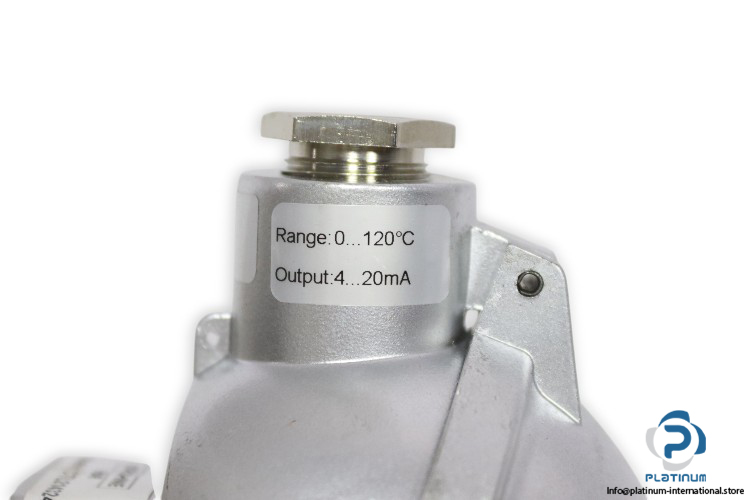

- Measurement Range: 0 / 120 °C
- Output Signal: 4 / 20 mA
- Response Time: 8 s “ 21 s
- Thermocouple (TC) Configuration: 1 x Type J
- Thermowell Diameter: 11 mm
- Thermowell Tip Design: Reduced
- Mounting Point: Pipe, Tank
- Measuring Point: Pipe, Tank
