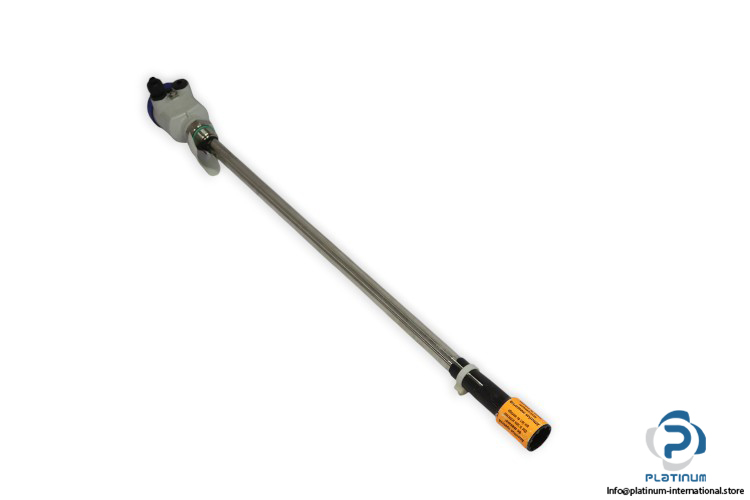

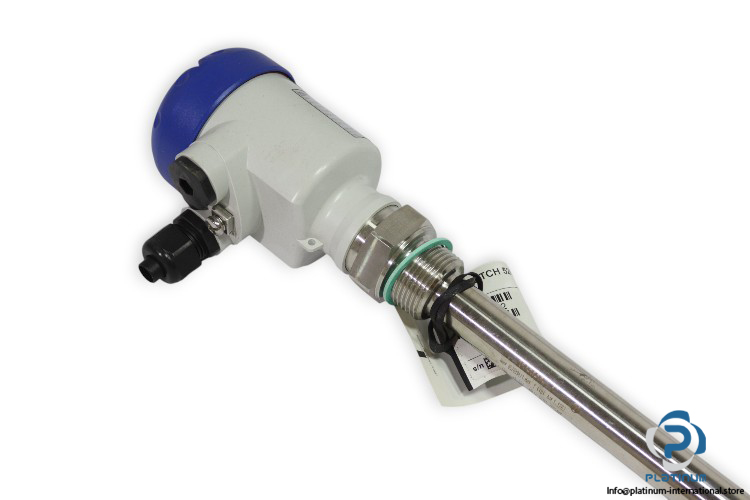

KROHNE VF11.XXGAVXPC VIBRATING LEVEL SWITCH
The KROHNE VF11.XXGAVXPC, part of the OPTISWITCH 5200C series, is a robust vibrating level switch engineered for accurate level detection in harsh industrial environments. With flexible power supply options, durable housing materials, and high ingress protection, it ensures reliable operation under demanding conditions.
Manufacturer: KROHNE
Type: Vibrating Level Switch
Model: VF11.XXGAVXPC
Series: OPTISWITCH 5200C
Order Number: 2843535/001
Serial Number: 010258088
Ref No.: 018010542 / 53797083

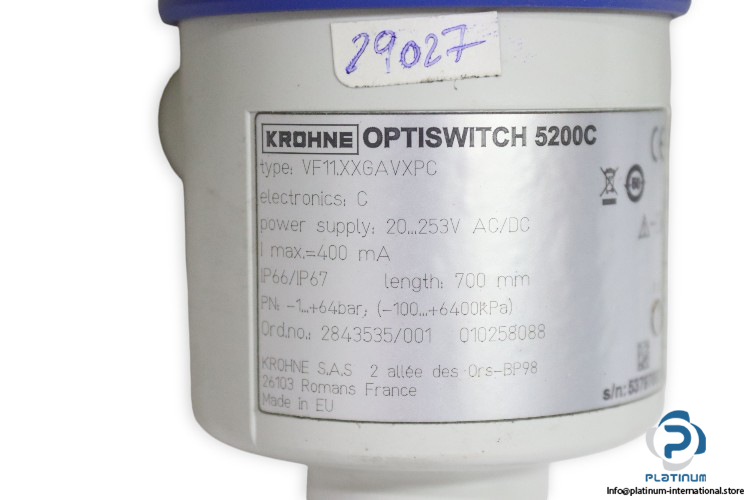

Technical Information
- Electronics: C
- LS: 584
- Power Supply: 20 / 253 V AC/DC
- Current Consumption: max. 400 mA
- Ingress Protection: IP66 / IP67 (dust-tight, water-resistant)
- Probe Length: 700 mm
- Pressure Range (PN): -1 to +64 bar
- Materials (Non-Wetted Parts): Plastic PBT housing, Aluminium die-cast housing, Stainless steel housing “ precision casting, Electropolished stainless steel housing, Aluminium die-casting AlSi10Mg powder-coated (Polyester), 316L stainless steel
- Connection: Pipe thread, cylindrical (DIN 3852-A) G¾, G1
- Ambient Temperature: +18 / +30 °C
