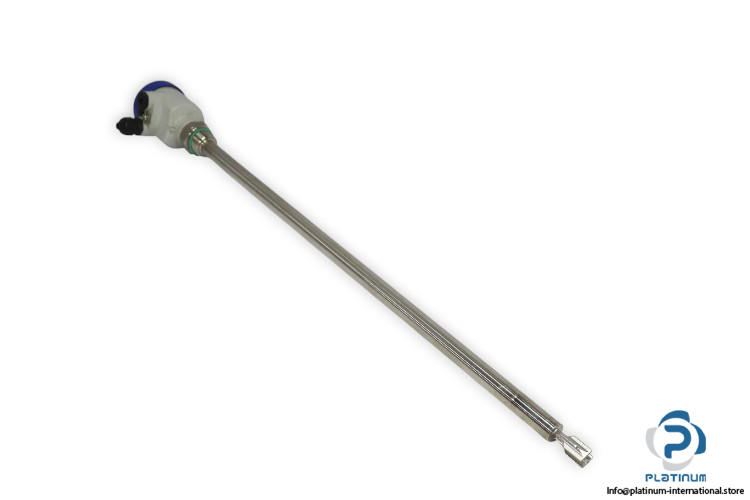

KROHNE OPTISWITCH 5200C Vibrating Level Switch VF11.XXGAVXPC
The KROHNE OPTISWITCH 5200C VF11.XXGAVXPC is a high-quality vibrating level switch designed for reliable measurement in demanding industrial environments. Built with durable materials and wide power supply compatibility, it ensures accurate operation in harsh conditions.
Manufacturer: KROHNE
Type: Vibrating Level Switch
Model: VF11.XXGAVXPC
Series: OPTISWITCH 5200C
Order Number: 2843535/001
Serial Number: 53797082
Ref No.: 8570894/1 / 010258088 / 2843535/1
Technical Information
- Electronics: C
- LS: 584
- Power Supply: 20 / 253 V AC/DC
- Current Consumption: max. 400 mA
- Ingress Protection: IP66 / IP67 (dust-tight, water-resistant, suitable for harsh environments)
- Probe Length: 700 mm
- Pressure Range (PN): -1 to +64 bar
- Materials (non-wetted parts): Plastic housing PBT (Polyester), Aluminium die-cast housing, Stainless steel housing (precision casting), Stainless steel housing (electropolished), Aluminium die-casting AlSi10Mg (powder-coated), 316L Stainless Steel
- Pipe Thread (DIN 3852-A): G¾, G1
- Ambient Temperature: +18 / +30 °C
