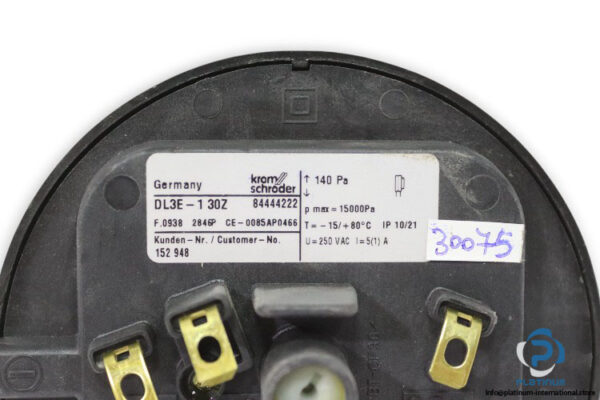

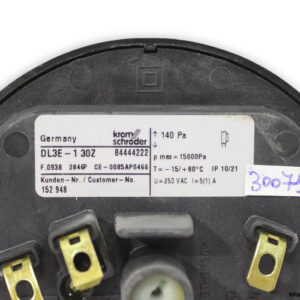

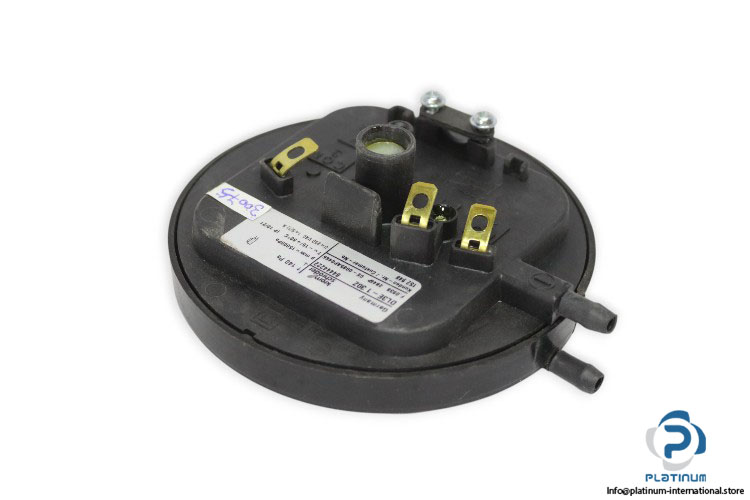

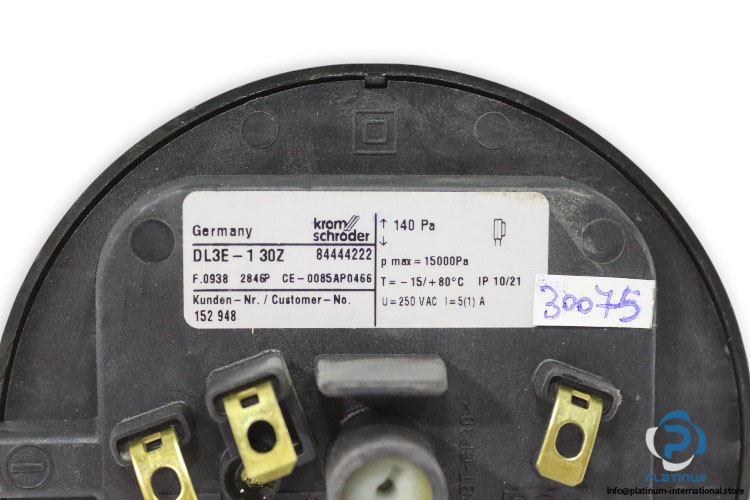

Krom Schroder DL3E-130Z Air Pressure Switch
The Krom Schroder DL3E-130Z is a reliable air pressure switch designed for monitoring and controlling air and gas flow in industrial applications. It features precise switching point adjustment, durable construction, and compatibility with various pneumatic and electrical connections. This pressure switch ensures safe and efficient operation across demanding environments.
- Manufacturer: Krom Schroder
- Type: Air Pressure Switch
- Model: DL3E-130Z
- ID. No.: 152 948
Technical Information
- Power: max. 15000 Pa
- Rated Power: 140 Pa
- Voltage: 250 V AC
- Current: 5(1) A
- Contact: 1 CO
- Setting: Switching point adjustment via adjustment screw
- Pneumatic Connections: Tube connections

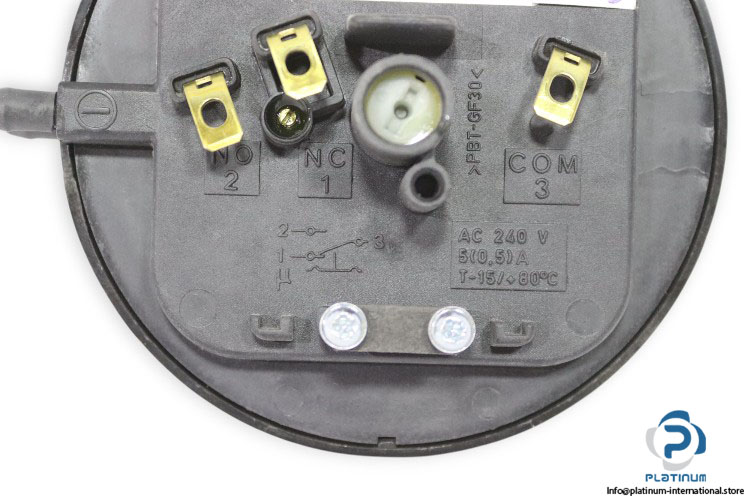

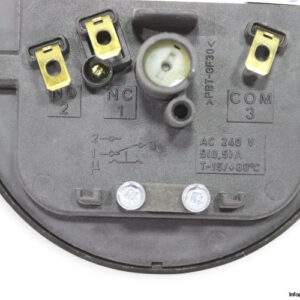

- Electrical Connection: 6.3×0.8 AMP connectors (UR recognized)
- Medium: Air, flue gas, non-aggressive gas
- Temperature: -15 to 80°C
- Protection Degree: IP10/21
