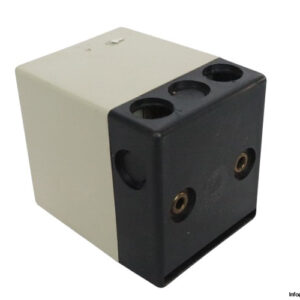

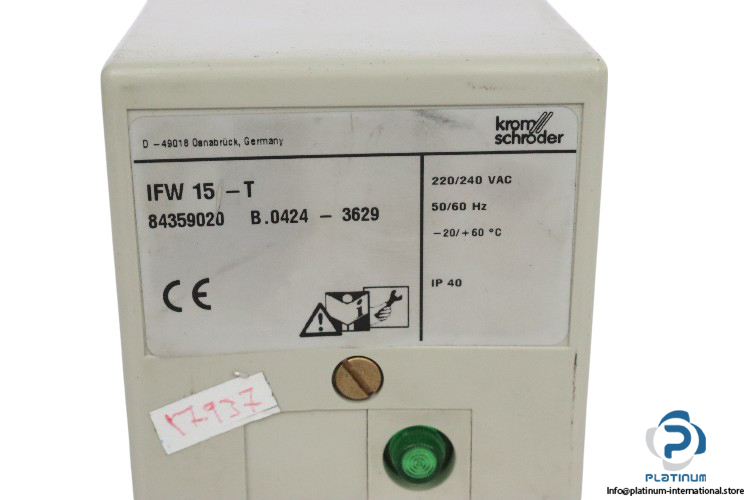

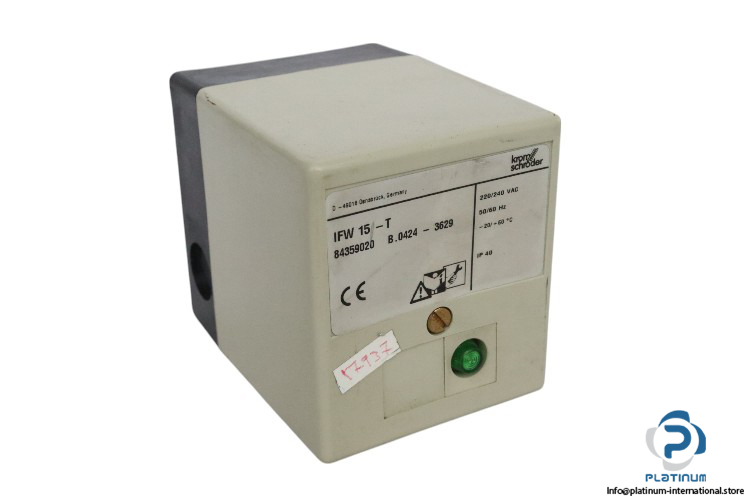

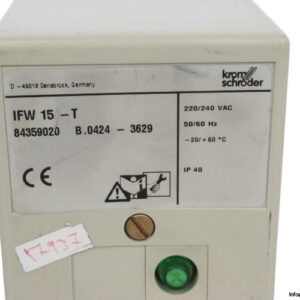

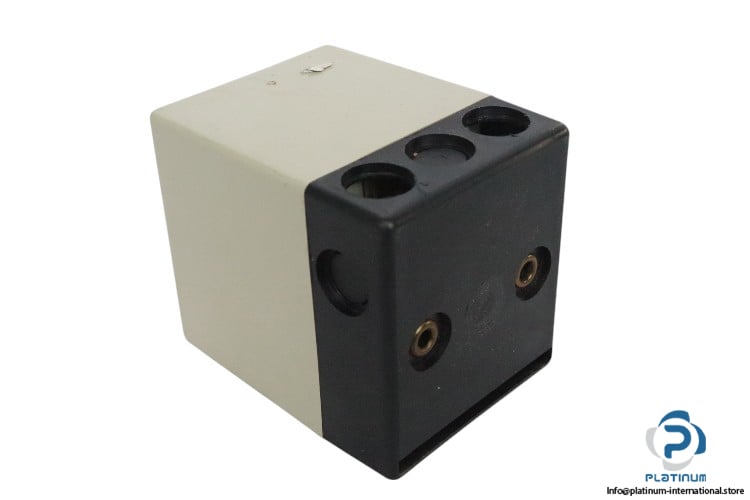

Kromschroder Flame Detector IFW 15-T
Kromschroder Flame Detector IFW 15-T is a reliable and efficient flame detection device designed for industrial applications. It provides precise flame detection and is suitable for a wide range of environments, offering excellent performance under varying conditions.
- Manufacturer: Kromschroder
- Type: Flame Detector
- Model: IFW 15-T
- Part No.: 84359020
Technical Data:
- Main Voltage: 220/240 V AC
- Frequency: 50/60 Hz
- Power Consumption: 12 VA
- Output Voltage for Ionization Sensor: 230 V AC
- Sensor Current: min. 1 mA
- Output Signal: Signaling contacts (1 break contact, 1 make contact)
- Contact Rating: max. 230 V, max. 2 A
- Connection Terminals: 2 x 1.5 mm square
- Flame Signal: LED in unit
- Ambient Temperature: -20 to +60°C
- Protection Degree: IP 40
