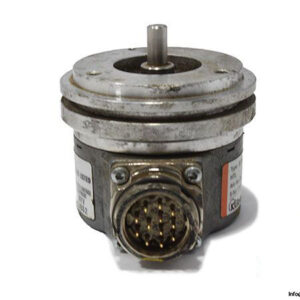

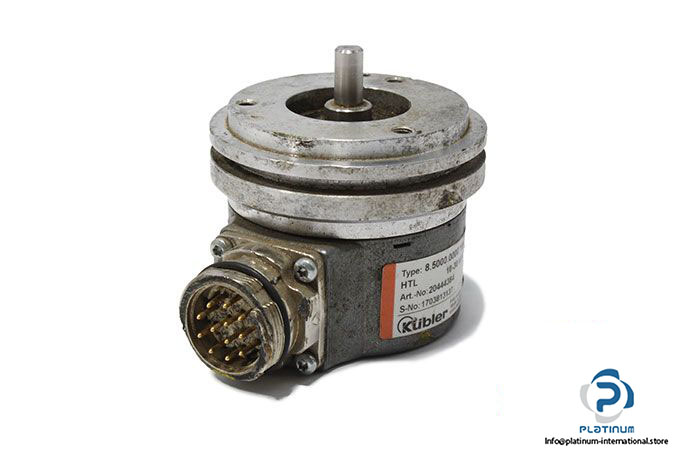

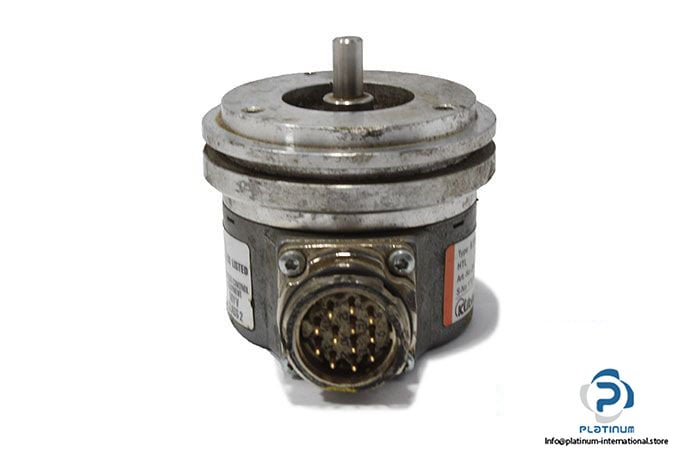

KUBLER 8.5000.0000.1024.S066 INCREMENTAL ENCODER
This high-performance incremental encoder from KUBLER is engineered for precision, speed, and durability in industrial automation environments. Designed to handle high-frequency pulse outputs with reliable accuracy, it offers excellent environmental protection and robust mechanical construction.
Manufacturer: KUBLER
Type: Incremental Encoder

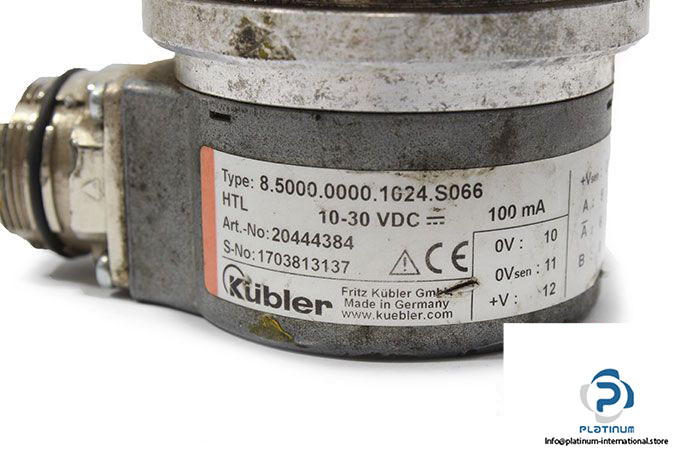

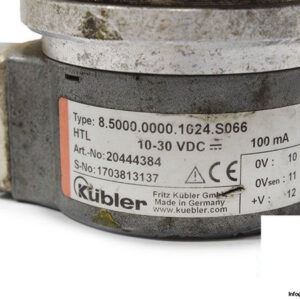

Model: 8.5000.0000.1024.S066
Article No.: 20444384
Serial No.: 1703813137
Technical Information
- Output Circuit: Push-pull
- Power Supply: 10 / 30 VDC
- Power Consumption: max. 100 mA
- Permissible Load / Channel: max. +/- 20 mA
- Pulse Frequency: max. 300 kHz
- Shaft Diameter: 5.9 mm
- Starting Torque: < 0.05 Nm
- Maximum Speed: 6000 min»¹ (peak), 3000 min»¹ (continuous)
- Working Temperature Range: -40 / +85°C
- Protection Class: IP66/IP67
