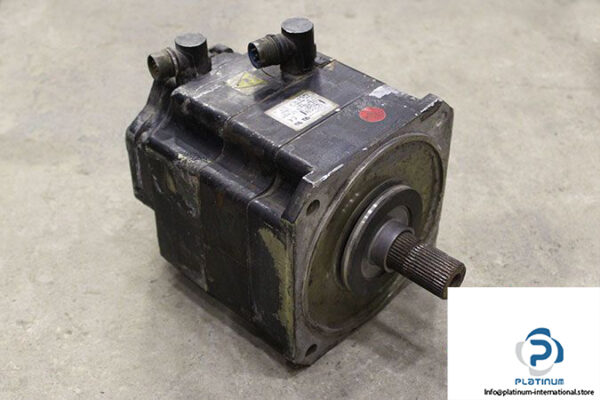

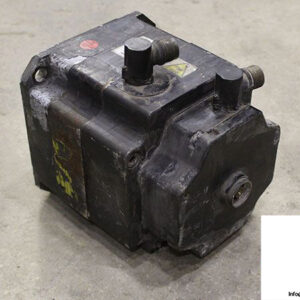

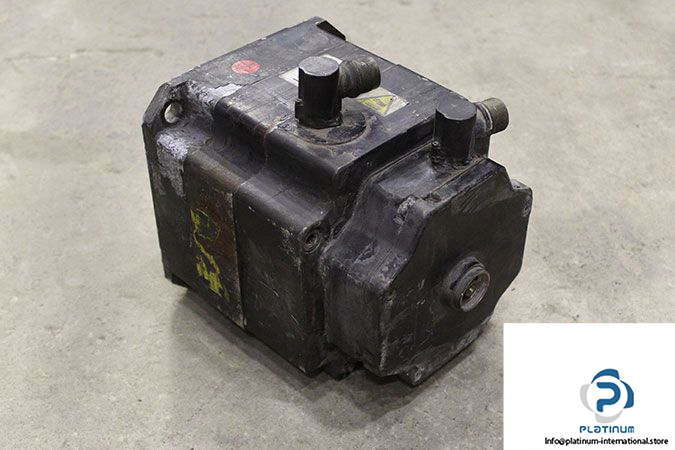

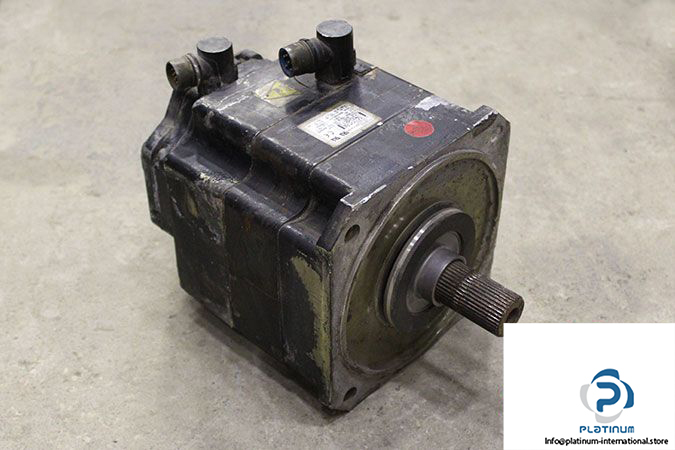

KUKA / SIEMENS 1FK6100-8AF91-1ZZ9-Z S49 BRUSHLESS SERVO MOTOR

Designed for precision control in industrial automation, the KUKA / Siemens 1FK6100-8AF91-1ZZ9-Z S49 is a high-performance brushless servo motor. With reliable power output and advanced protection, it suits a wide range of demanding applications, particularly in robotics and motion systems.

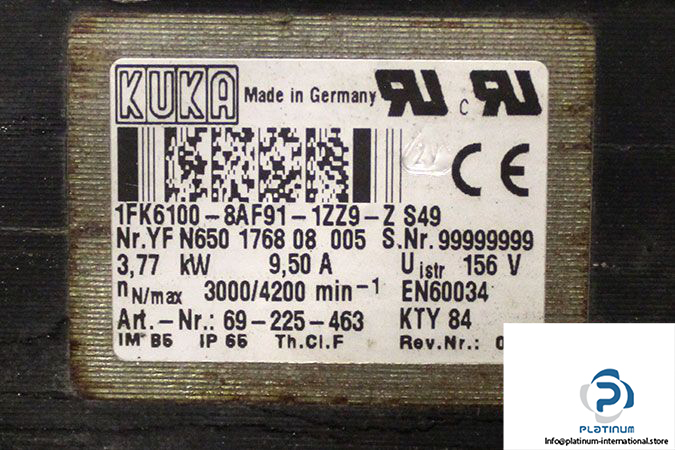

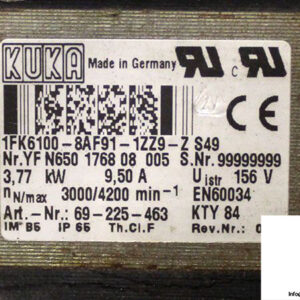

Manufacturer: Kuka / Siemens
Type: Brushless Servo Motor
Model: 1FK6100-8AF91-1ZZ9-Z S49
Article Number: 69-225-463
Nr YF: N650 1768 08 005
Serial Number: 99999999

Technical Information

• Rated Voltage: 156 V
• Rated Current: 9.5 A
• Rated Speed: 3000 min^-1
• Maximum Speed: 4200 min^-1
• Rated Power: 3.77 kW
• Stall Torque: 3 Nm
• Thermal Class: F
• Mounting Position: B5
• Protection Class: IP65
