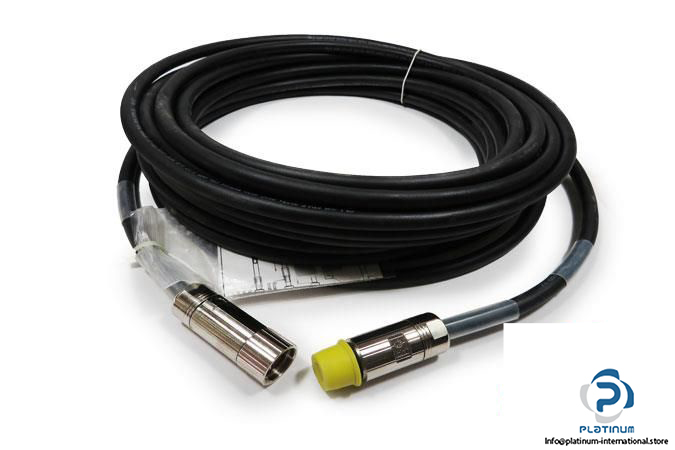

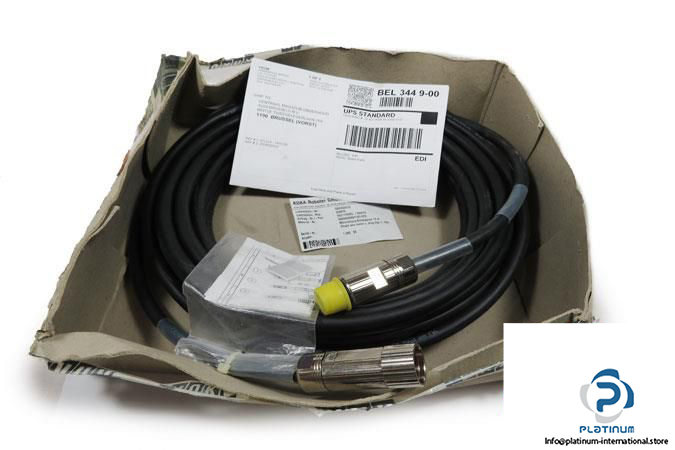

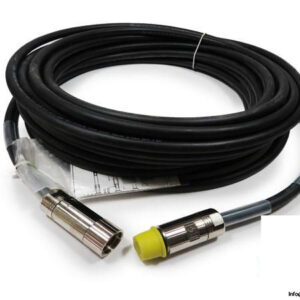

KUKA 71-051-676 15M Single Axis Motor Cable

The KUKA 71-051-676 15M is a high-quality single axis motor cable engineered for reliable performance in industrial robotics and automation. Designed for continuous bending, high load capacity, and safe motor connections, it ensures durable and efficient operation in demanding environments.

Manufacturer: KUKA
Type: Single Axis Motor Cable
Model: 71-051-676 15 M
Codes: 0020335210_000070_0031176325

Technical information

• Voltage: 600 V
• Cross-Section: 4 mm²
• Outside Diameter: 12 mm
• Load Max.: 40 A
• Bending Radius: 140 mm (for continuous bending)
• Length: 15 m
• Connector Type: H-J1, H-J1.5

Applications

• Connection of a motor box with a motor
• Connection of a KR C4 with a motor
