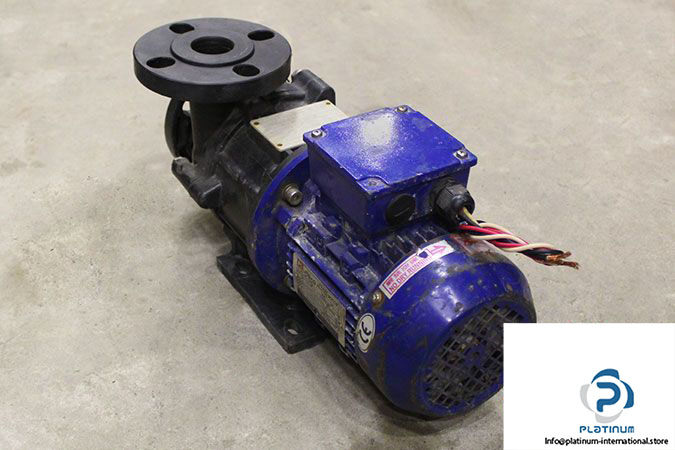

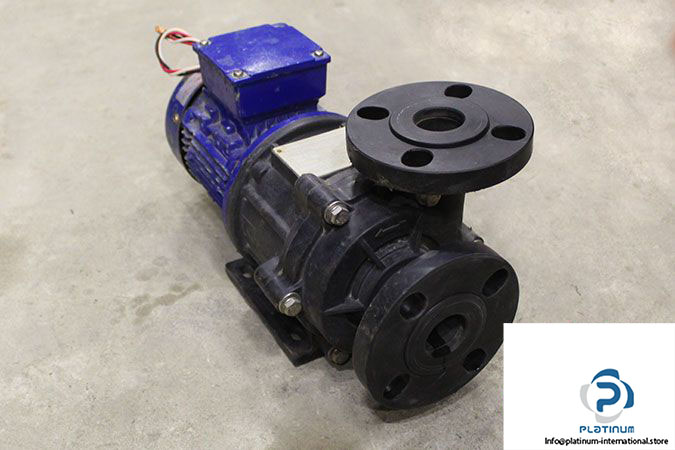

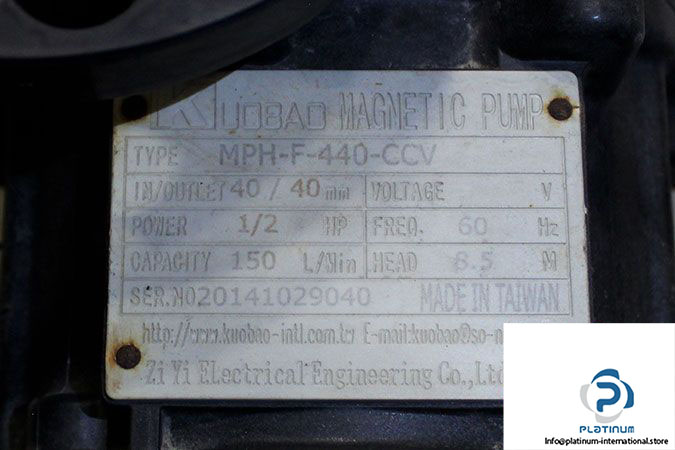

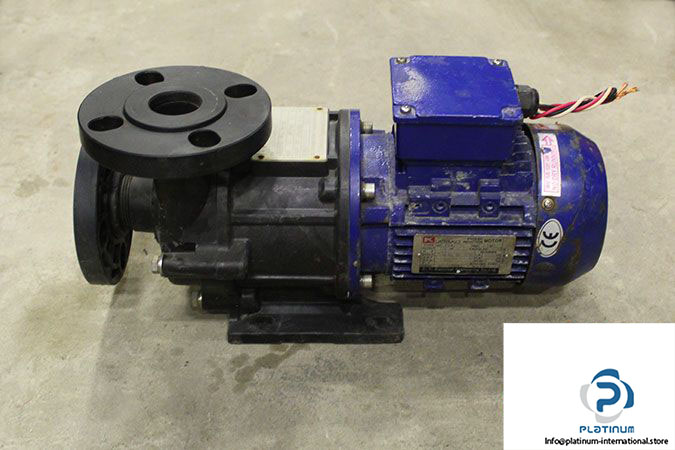

Manufacturer: Kuobao

Type: Magnetically Driven Chemical Pump

Model: MPH-F-440-CCV

Rated Power: 1/2 HP

Rated Head Loss: 6.5 m

Rated Capacitor: 150 L/min

Suction Size: 36 mm

Discharge Size: 36 mm

Frequency: 60 Hz

Attachment: KUOBAO AEVF 3 PHASE ELECTRIC MOTOR

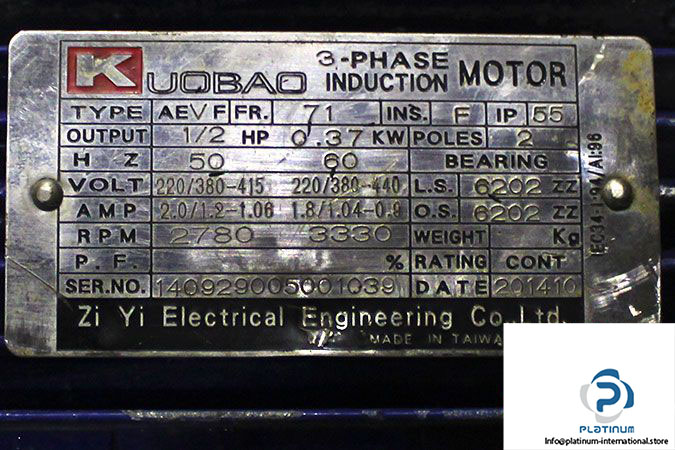

Manufacturer: Kuobao

Type: 3 Phase Electric Motor

Model: AEVF

At 50 Hz

Star connection

• Rated Voltage: 220 V
• Rated Current: 2 A

Delta Connection

• Rated Voltage: 380…415 V
• Rated Current: 2…1.06 A

Rated Speed: 2780 min^-1

At 60 Hz

Star connection

• Rated Voltage: 220 V
• Rated Current: 8 A

Delta Connection

• Rated Voltage: 380…440 V
• Rated Current: 04…0.9 A



Rated Speed: 3330 min^-1

No. Poles: 2

Rated Power: 0.37 kW

Protection Class: IP55

Insulation Class: F

Gross Weight: 12.3 kg
