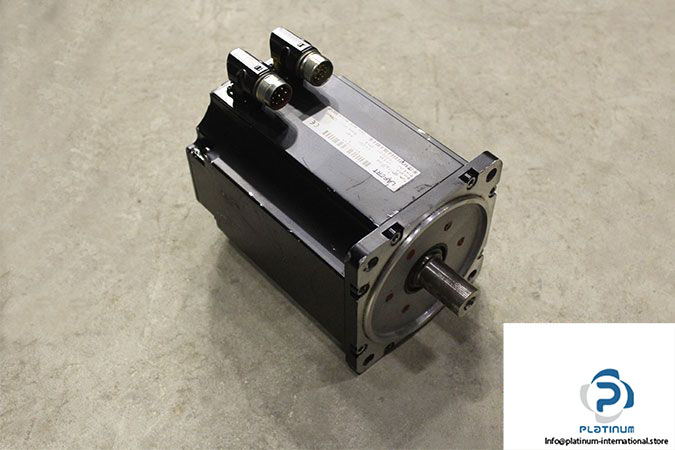

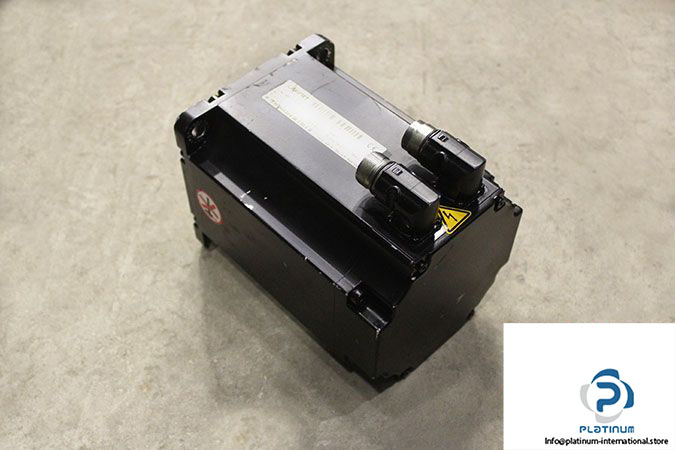

Lafert B7109Q-03399 Brushless Servo Motor
The Lafert B7109Q-03399 is a high-performance brushless servo motor designed for precision motion control applications. It delivers consistent torque, high rotational speed, and excellent efficiency, making it ideal for automation, robotics, and CNC machinery. With IP67 protection and integrated brake, this servo motor ensures reliable operation even in demanding industrial environments.
Manufacturer: Lafert
Type: Brushless Servo Motor
Model: B7109Q-03399

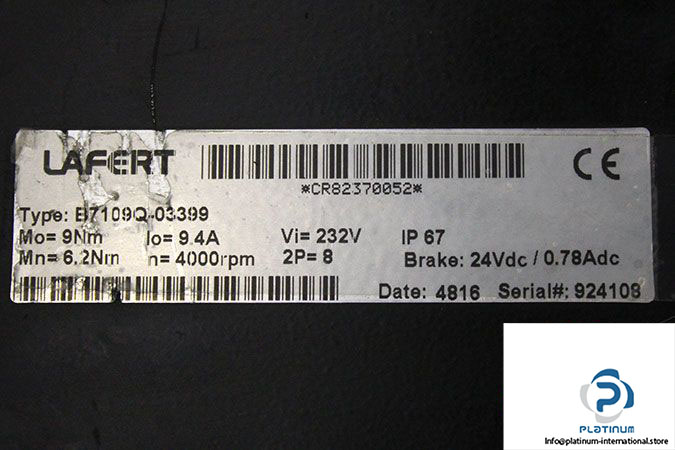

Technical Information
- Nominal Voltage: 232 V
- Stall Current: 9.4 A
- Stall Torque: 9 Nm
- Rated Torque: 6.2 Nm
- Speed: 4000 rpm
- Brake Voltage: 24 VDC
- Brake Current: 0.78 A
- Protection Class: IP67
