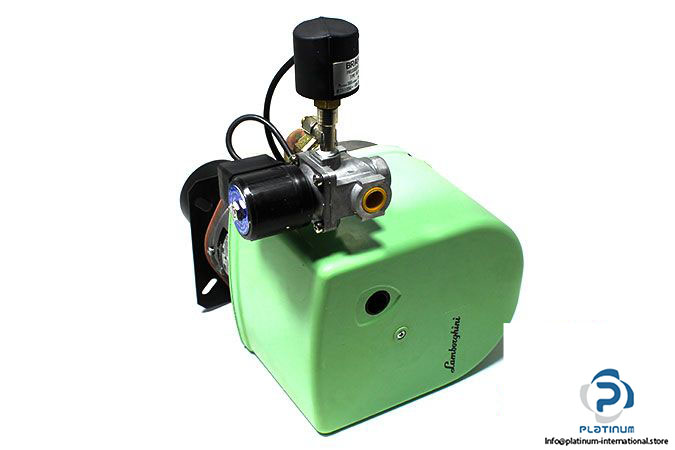

Manufacturer: LAMBORGHINI
Type: forced-draught burner
Model: 3 PM
Part No.: 00830071
A forced-draught burner, with gas/air mix at the combustion head. They are suitable for operating with high-pressure or vacuum chambers according to relevant operational fields. The long draught tube slides on a flange to satisfy every possible application. These burners combine great flame stability with total safety and high performance. They feature a reulator/ stabilizer which keeps the gas/air ratio constant even in the presence of normal causes of combustion process disturbance.
Mains Supply: 220/240 V AC/ 50/60 Hz + 10%-15%
Operation: ON-OFF
Thermal power: 11.9 … 35.8 kW
Burner capacity: 1.2 … 3.6 m3/h
Fuel: Natural gas
Motor: 45 W
Total absorbed power: 265 W
Transformer: 1 A -Sec 8 KV
Weight: 9.2 kg
