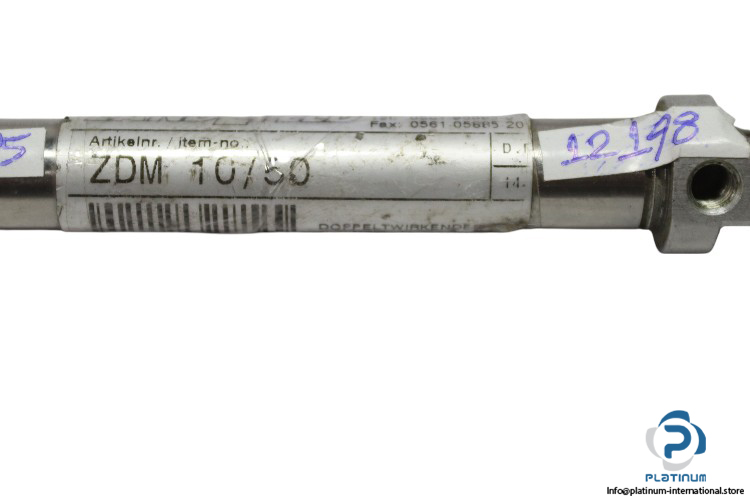

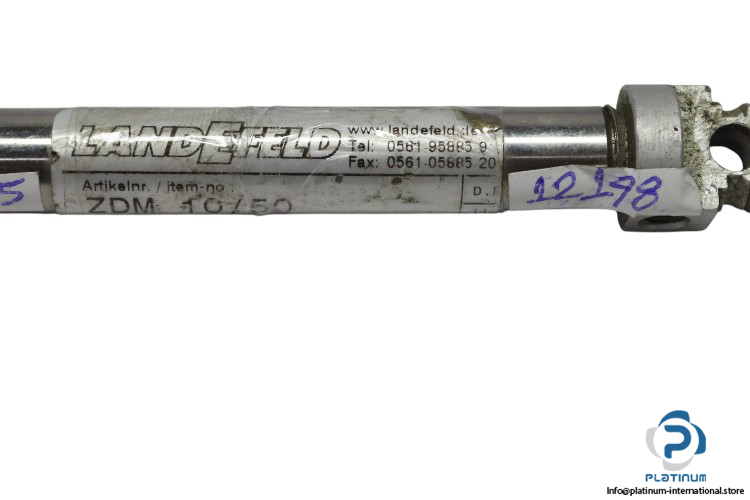

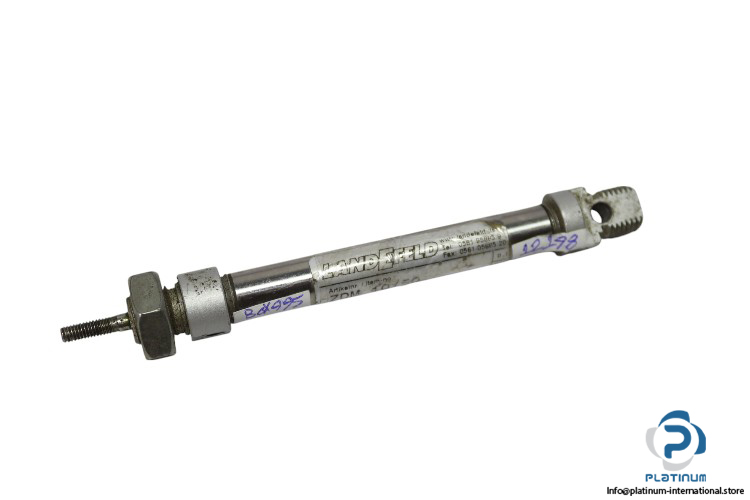

Landefeld ZDM10/50 ISO Cylinder

The Landefeld ZDM10/50 is a compact ISO pneumatic cylinder engineered for reliable double-acting operation in various automation and industrial applications. Its circular shape and male-threaded piston rod offer precise linear movement in limited spaces.

Manufacturer: Landefeld

Type: ISO Cylinder

Model: ZDM10/50

Technical Information:

• Piston Diameter: 10 mm
• Stroke: 50 mm
• Pneumatic Connection: 5 mm
• Mode of Operation: Double Acting
• Operating Pressure (Max): 10 bar
• Piston-Rod End: Male Thread
• Shape: Circular
• Rod Direction: One Side
• Temperature Range: -20 to 80 °C
• Materials:
  • Head and Foot: Anodized Aluminum
  • Seal: NBR / PUR
