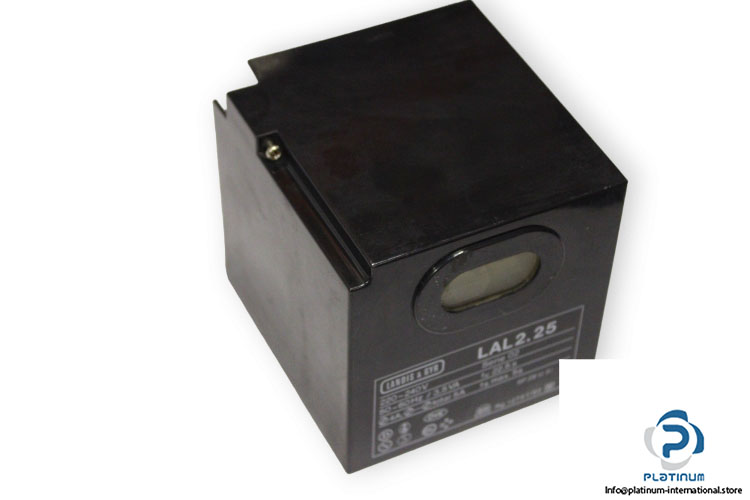

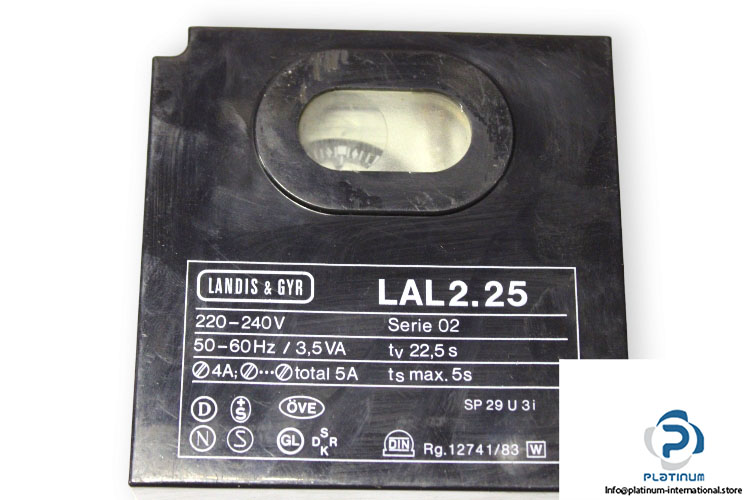

Manufacturer: Landis & Gyr

Type: Oil Burner Controller

Model: Lal2.25

Series: 02

Supply voltage: 220-240 V AC

Input Current at Terminal 1:  5 A (max)

Current Rating of Control Terminals:  4 A

Power consumption:  3.5 VA

Ignition safety time(ts):  5s

Prepurge time with air damper open(tv): 22.5 s

Frequency: 50 … 60 Hz
