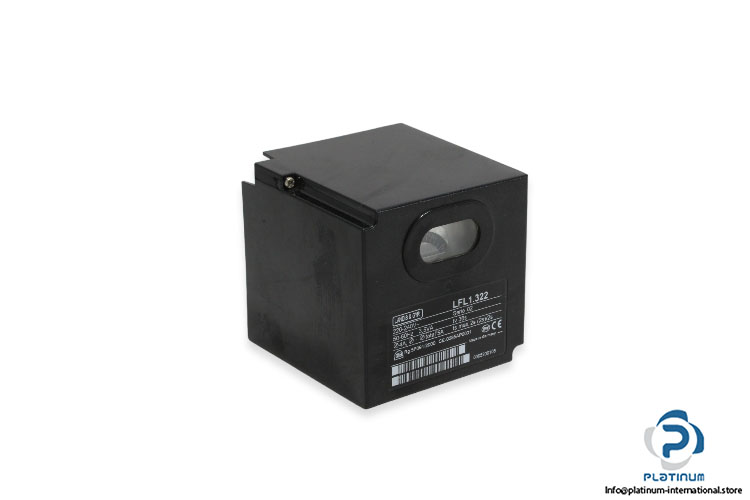

Landis & Gyr LFL1.322 Gas Burner Controller
The Landis & Gyr LFL1.322 Gas Burner Controller is designed for reliable and safe control of industrial and commercial gas burner systems. It features precise timing functions, stable electrical performance, and dependable safety operation for burner management applications.

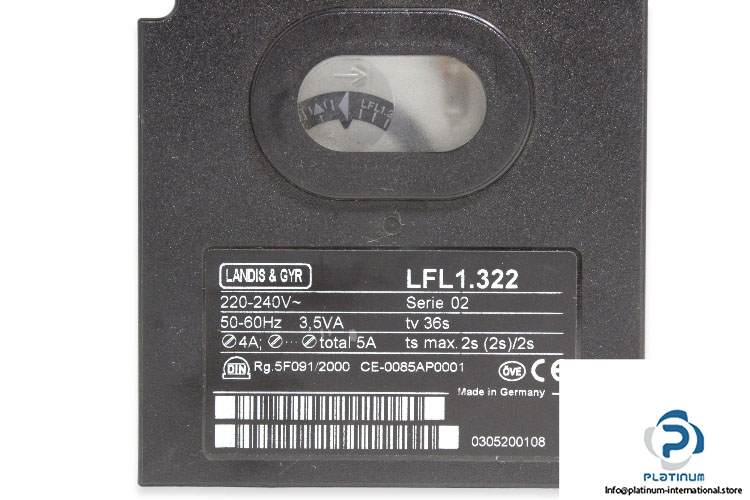

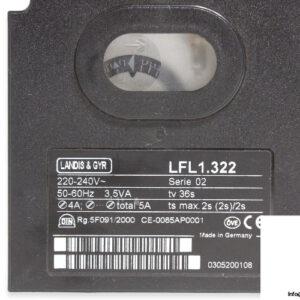

Manufacturer: Landis & Gyr
Type: Gas Burner Controller
Model: LFL1.322
Series: 02
Code: RG.5F091/2000 CE-0085AP0001
Serial Number: 0305200108
Technical Information
- Supply Voltage: 220 to 240 V AC
- Input Current at Terminal 1: 5 A maximum
- Current Rating of Control Terminals: 4 A
- Power Consumption: 3.5 VA
- Ignition Safety Time: 2 seconds
- Prepurge Time with Air Damper Open: 36 seconds
- Frequency: 50 to 60 Hz
